Instrument Panel help or Atlanta Shop recommendation - Ford Bronco Forum
 1Likes
  • 1 Post By miesk5

LinkBack Thread Tools Display Modes
post #1 of 12 (permalink) Old 03-19-2017, 02:36 PM Thread Starter
Registered User

Join Date: Mar 2017
Location: Atlanta-ish
Posts: 7
Bronco Info: 94 Eddie Bauer 5.8L
iTrader: (0)
Instrument Panel help or Atlanta Shop recommendation

Hi - I've had my 94 EB 5.8 for about a month now and I love it. It's a project for me, although it's in pretty good shape.

My instrument cluster went out, the #10 4A fuse keeps popping. I am not that sharp with electrical work, although I did give tracing the problem the old college try. I have watched countless youtube videos, have searched the forums but it still doesn't make sense.

I'd love some help figuring out how to trouble shoot from my instrument panel back to the fuse box (if that is even a thing that makes sense), or the name of any trusted shops in the Atlanta area that can work on Broncos. Thanks in advance for your help.
Mcoleman is offline
Sponsored Links
Advertisement

post #2 of 12 (permalink) Old 03-19-2017, 04:30 PM
Moderator

miesk5's Avatar

Join Date: Oct 2003
Location: NJ
Posts: 17,208
Bronco Info: 96 Bronco XL 5.0 E4OD, Man Xfer/Hubs
iTrader: (2)
Garage
Yo Mcoleman,
Welcome!
I found Technical Service Bulletins (TSBs) for fuse 10 issues, but found this,
TSB 96-08-15 Erratic Compass & Map Lamp Operation - Vehicles Built Through 2/1/96

Publication Date: APRIL 8, 1996

LIGHT TRUCK:
1993-96 EXPLORER
1994-96 BRONCO

ISSUE: Map lamp switch and/or overhead compass function operation is irregular, and/or map lamp bulbs may burn out on some vehicles. Installation of revised parts should resolve this issue.

ACTION: Replace the map lamp, switch, compass and wiring harness with a revised Overhead Console Kit (F67Z-78519C42-AA). Refer to Instruction Sheet #7151, included with the kit, for service procedure.

The Overhead Console Kit (F67Z-78519C42-AA) includes the following:
One (1) Map Lamp Assembly
One (1) Map Lamp Button
One (1) Compass
One (1) Wiring Harness
One (1) Modification Label
One (1) Instruction Sheet (I.S. #7151)


Fuse Block & Power Distribution Box (PDB) diagrams attached.
Cluster including radio, rear window control switch, ashtray, 4wd electronic shit-on-the-fly switch, overhead console, heater control panel illumination wiring diagram is attached.
May need to disconnect radio, ashtray, etc. Connectors to hunt down the short.
Our 96s cigar lighter witring chaffed & shorted on ashtray frame.

illumination
Check harnesses A & B for a possible short at aluminum support brace. Look up from under dash. Also look for ham-handed wiring hacks under dash near the harnesses.

http://www.diesel-dave.com/vehic/man...es/k17295c.gif
Item Part Number Description
1 To Headlamp Switch
2 To Fuse Box
3 14A282 Retainer Assembly
4 N606678-S39 Screw
5 Connector (Part of 12A581)
6 Connector (Part of 14A504)
7 13A506 Locator, Position in Hole Provided
8 To Park Signal Lamp Switch
9 To Multi-Function Switch
10 To Stoplight Switch
11 Clip (Part of 14401)
12 E4OD Pigtail (Part of 14401)
13 To Ignition Switch and Steering Column Wiring
14 To 14405
15 To Starter Switch Clutch Interlock
16 Take-Out to Shift on the Fly Switch and Electric Defrost Switch (Part of 14401)
17 To Warning Buzzer Chime
18 Remote Keyless Entry Programming Connector
19 15K602 Remote Keyless Entry Module
20 Air Bag Module
21 14A163 Retainer Assembly
22 To Trailer Brake Controller
23 14A099 Shield
24 Vacuum Hose Clip (Part of Vacuum Harness)
25 Ashtray Wiring (Part of 13726)
26 15A044 Cigar Lighter
27 PSOM Test Circuit (Part of 14401)
28 To Bowden Cable
29 18813 Radio Antenna
30 Brake Anti-Lock Module Test Circuit (Part of 14401)
31 To 14630
32 To 14B095
33 To 18A586
34 To Right Courtesy Lamp Switch
35 To Inertia Switch
36 14463 To Ground
37 To Clearance Lamp F-Series Only for Continuation
38 Wiper Control Module
39 2C018 Rear Brake Anti-Lock Module (F-150, F-250, F-350 Only)
40 To Glove Box Lamp
41 To Heater Mode Switch
42 To A/C Illumination
43 To A/C Blower Switch
44 To Power Point
45 To Radio
46 18B849 Premium Sound Amplifier
47 14B166 Shift on the Fly Switch
48 To 14A262 Electric Defrost (Bronco Only)
49 14401 Wiring Assembly
50 To Cluster (Plug A)
51 To PSOM
52 To Cluster (Plug B)
53 14B155 Cap
54 04320 Instrument Panel
55 9A050 Dual Fuel Tank Switch (F-Series Only)
56 14529 Rear Window Control Switch (Bronco Only)
57 Demister Hose
58 To Glove Box Lamp

Cluster Removal by fordbronco1995

To go along with fordbronco1995's narrative see headlight knob removal pic and more info in Cluster, Instrument Removal Drama by Jowens, #1 - Best Seller on Amazon for 3 years!

Wilp bbl

See my partially recovered Bronco web site ...Will need to clean up dead links & add many more new links some day. Thanks to Mr. Schwim!
THANKS to ALL WHO SERVE!
miesk5 is offline
post #3 of 12 (permalink) Old 03-19-2017, 04:31 PM
Registered User

Join Date: Nov 2009
Location: Redford, MI
Posts: 3,313
Bronco Info: '96 Black 302 XLT - '94 Green 351 E. B. both are E4OD, 3.55 axles, 31 10.50x15
iTrader: (3)

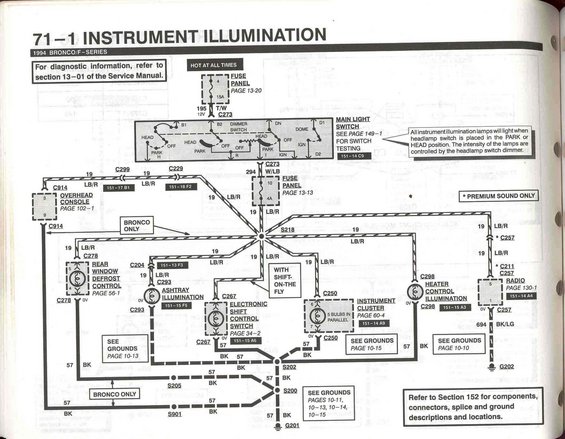

Here's the schematic, notice that fuse #10 feeds more than just your instrument panel. What was the last thing you did to the truck before the lights went out? (if anything)
Click on the link below the schematic to enlarge the schematic. Back around page 60-1 are the rest of the instrument panel schematics. (click the previous/next links in the upper left corner to navigate the EVTM.

And welcome to FSB.



1996 Ford Bronco '94 EVTM picture | SuperMotors.net

"The simplest solution is usually the best solution" - Occam's Razor

"The significant problems we face cannot be solved at the same level of thinking we were at when we created them." - Albert Einstein
Mikey350 is online now

post #4 of 12 (permalink) Old 03-19-2017, 04:43 PM
Moderator

miesk5's Avatar

Join Date: Oct 2003
Location: NJ
Posts: 17,208
Bronco Info: 96 Bronco XL 5.0 E4OD, Man Xfer/Hubs
iTrader: (2)
Garage
Yo,
Forgot attachments!
Attached Thumbnails
Click image for larger version

Name:	Screenshot_20170319-161449.png
Views:	7
Size:	282.6 KB
ID:	98794   Click image for larger version

Name:	Screenshot_20170319-151611.png
Views:	6
Size:	303.0 KB
ID:	98802   Click image for larger version

Name:	Screenshot_20170319-151644.png
Views:	6
Size:	335.5 KB
ID:	98810

See my partially recovered Bronco web site ...Will need to clean up dead links & add many more new links some day. Thanks to Mr. Schwim!
THANKS to ALL WHO SERVE!
miesk5 is offline
post #5 of 12 (permalink) Old 03-19-2017, 06:06 PM
Registered User

Join Date: Mar 2016
Location: Texas
Posts: 535
Bronco Info: 1989 Bronco 5.0 AOD w/ 3G alt, more to come
iTrader: (0)
Chances are pretty good that it's related to the radio wiring if you have an aftermarket stereo or the ashtray lighting if you smoke.
Spktyr is online now
post #6 of 12 (permalink) Old 03-19-2017, 06:31 PM
Moderator

miesk5's Avatar

Join Date: Oct 2003
Location: NJ
Posts: 17,208
Bronco Info: 96 Bronco XL 5.0 E4OD, Man Xfer/Hubs
iTrader: (2)
Garage
Yo,
Overhead Console Parts Break-Out Diagram attached:
1 - Base & Basket
2 - Roof Bracket
3 - Bezel & Lenses
4 - Door
5 - Module
6 - Map Lamp Cartridge
7 - Harness
...

Lamp, Ash Receptacle Removal
Remove instrument panel ash receptacle.
Squeeze the lamp housing to disengage from the ash receptacle track.
Pull lamp housing from wiring connector/bulb socket.
Pull bulb out of the wiring connector/bulb socket.
Installation
Follow removal procedures in reverse order.
...
Attached Thumbnails
Click image for larger version

Name:	ohconsoleexploded.jpg
Views:	6
Size:	29.1 KB
ID:	98826
miesk5 is offline
post #7 of 12 (permalink) Old 03-19-2017, 06:45 PM Thread Starter
Registered User

Join Date: Mar 2017
Location: Atlanta-ish
Posts: 7
Bronco Info: 94 Eddie Bauer 5.8L
iTrader: (0)
You guys are way smarter than me! I'm going to study these and see if I can figure it out. I did pull the OH console out two weeks ago to send off for a new computer, I disconnected everything though, the harness end is still dangling up there. As far as I remember, I was driving home one night and the lights just blinked out.

I found where the stereo was the culprit in other similar threads, so I pulled out the after market unit yesterday and looked it over, everything looks good as far as wiring there. The only anomaly I could see were two wires that came with the stereo that didn't seem to have a corresponding home on the bronco, so they just had butt connectors on the end to tie them off (not to each other.)

I also bought a new headlight switch and swapped it out, to no avail. The gray clip (not sure of the name, it's the clip that connects to the switch) still looks good on that, no burnt ends or fusing. I traced what I think is the ground wire (driver side fender, right under the coil for the hood, and everything looked ok there.

I appreciate the help! I'm going to keep digging...
Mcoleman is offline
post #8 of 12 (permalink) Old 03-20-2017, 12:25 PM
Moderator

miesk5's Avatar

Join Date: Oct 2003
Location: NJ
Posts: 17,208
Bronco Info: 96 Bronco XL 5.0 E4OD, Man Xfer/Hubs
iTrader: (2)
Garage
Yo,
Did you disconnect the radio connector and see if fuse blows? Also see if radio harmees wires have been assaulted by a previous owner or shop.

Do same for ash tray lamp, rear window control switch, 4wd electronic shit-on-the-fly switch, & heater control panel .

See my partially recovered Bronco web site ...Will need to clean up dead links & add many more new links some day. Thanks to Mr. Schwim!
THANKS to ALL WHO SERVE!
miesk5 is offline
post #9 of 12 (permalink) Old 03-20-2017, 09:48 PM
FSM Lifetime

c-dub's Avatar

Join Date: Jan 2007
Location: Corner of no and where, KS
Posts: 3,982
Bronco Info: 96 xlt 5.8 (blk) e40d
iTrader: (4)
There has to be a pin point test for the fuse, if i get a spare minute i will look it up in the shop manual.


black 96 5.8 xlt sport, e40d, edelbrock intake, bassani y-pipe, bilstien shocks, 32"bfg's
azure blue 03 mach1 4.6 dohc


"Sorry - no matches. Please try some different terms."
c-dub is offline
post #10 of 12 (permalink) Old 03-22-2017, 06:48 AM Thread Starter
Registered User

Join Date: Mar 2017
Location: Atlanta-ish
Posts: 7
Bronco Info: 94 Eddie Bauer 5.8L
iTrader: (0)
Realized that the ashtray light is not working either.
Mcoleman is offline
post #11 of 12 (permalink) Old 03-22-2017, 10:41 AM
Moderator

miesk5's Avatar

Join Date: Oct 2003
Location: NJ
Posts: 17,208
Bronco Info: 96 Bronco XL 5.0 E4OD, Man Xfer/Hubs
iTrader: (2)
Garage
Quote:
Originally Posted by Mcoleman View Post
Realized that the ashtray light is not working either.
Yo,
Correct, because it is fed from fuse 10; As well as:
rear window control switch illumination
4wd electronic shift-on-the-fly switch illumination
heater control panel illumination
and all cluster (gauges) illumination
Plus radio & overheadmap lights that you have eliminated from perp list.

Pull connectors to all above. Buya few #10 4 amp fuses
Put new #10 fuse in and it should not blow
Reconnect one connector at a time until fuse blows, that will be the circuit to inspect.
sharpshooter109 likes this.

See my partially recovered Bronco web site ...Will need to clean up dead links & add many more new links some day. Thanks to Mr. Schwim!
THANKS to ALL WHO SERVE!

Last edited by miesk5; 03-22-2017 at 10:43 AM. Reason: Typos
miesk5 is offline
post #12 of 12 (permalink) Old 03-26-2017, 08:14 AM Thread Starter
Registered User

Join Date: Mar 2017
Location: Atlanta-ish
Posts: 7
Bronco Info: 94 Eddie Bauer 5.8L
iTrader: (0)
Quote:
Originally Posted by miesk5 View Post
Yo,
Correct, because it is fed from fuse 10; As well as:
rear window control switch illumination
4wd electronic shift-on-the-fly switch illumination
heater control panel illumination
and all cluster (gauges) illumination
Plus radio & overheadmap lights that you have eliminated from perp list.

Pull connectors to all above. Buya few #10 4 amp fuses
Put new #10 fuse in and it should not blow
Reconnect one connector at a time until fuse blows, that will be the circuit to inspect.
Thanks! Those are very simple instructions I needed to figure this out!!
Mcoleman is offline
