post #41 of 60 (permalink) Old 09-18-2015, 06:42 PM Thread Starter
Nothing beets a Fullsize

Kingfish999's Avatar

Join Date: May 2010
Location: Palm Harbor FL
Posts: 7,709
Bronco Info: 96 Bronco (5.8 DD E4OD), 88 Bronco Mudder (Engineless), 90 F250 (Explorer 5.0 4R70W)
iTrader: (21)
Garage
Quote:
Originally Posted by rebrown2 View Post
On the previous post it was confirmed that it would work on early 80s Bronco, but if i don't plan to lift it nor flip it, do i still have to ream it to just install them in their normal configuration?

i just bought a 81 for my son to drive to school when he turns 16 in December, so i have a couple months for a major tune up, replace all suspension, steering, new exhaust, etc,etc,. I plan on replacing all tie rods, gearbox, pump, but if i can go in with a littler better/heavier parts i don't mind spending the little extra.

Thanks,
Rob
yes it will still work. no you dont need to ream or flip it. the ream/flip and the bigger tierods are seperate mods that i combined into 1 writeup because i did them at the same time.
CDA 455 likes this.


-----96 5.0 E4OD--------------88 5.8 C6--------------96 5.8 E4OD------
---------KIA-------------------Mud/Trail---------------Daily Driver------
Kingfish999 is online now
Sponsored Links
Advertisement

post #42 of 60 (permalink) Old 09-20-2015, 10:15 PM
Registered User

Join Date: Sep 2015
Location: Houston
Posts: 40
Bronco Info: 1981 Bronco
iTrader: (0)
Garage
Thanks.
rebrown2 is offline
post #43 of 60 (permalink) Old 09-21-2015, 01:06 AM
Registered User

blicharski1989's Avatar

Join Date: Apr 2015
Location: Tucson, AZ
Posts: 115
Bronco Info: 1996 XLT
iTrader: (1)
Anybody have a reamer they will rent or lend out? Hoping to do the flip to eliminate my bumpsteer.
blicharski1989 is offline

post #44 of 60 (permalink) Old 09-21-2015, 09:05 AM
Registered User

tonygz88's Avatar

Join Date: Feb 2013
Location: Arlington Texas
Posts: 614
Bronco Info: 1990 XLT 351/E4OD 4" lift, 35" GB AT2, Yukon Duragrip rear
iTrader: (0)
Garage
I am buying a reamer this week to do the flip. If anyone needs to borrow it in the future let me know. https://www.facebook.com/groups/DBOR4x4/


Quote:
Originally Posted by AFBronco235 View Post
Welcome to FSB, the only addiction help group that encourages the addiction.
Build Thread
tonygz88 is offline
post #45 of 60 (permalink) Old 09-21-2015, 06:23 PM
Registered User

blicharski1989's Avatar

Join Date: Apr 2015
Location: Tucson, AZ
Posts: 115
Bronco Info: 1996 XLT
iTrader: (1)
Don't have a Facebook but I'll kick you some money when you're done with it to barrow it for a weekend. I promise to use cutting oil lol
blicharski1989 is offline
post #46 of 60 (permalink) Old 03-16-2016, 08:05 PM
Bronco Snob

RicoBronco's Avatar

Join Date: May 2012
Location: Spokane
Posts: 1,361
Bronco Info: 1992 XLT 351W E4OD 4" lift TRE flip 130 amp 3G Alt Saginaw P.S. BFG MT KM2 315 75 16
iTrader: (0)
Garage
Quote:
Originally Posted by Kingfish999 View Post
These parts are from numerous types of vehicles to get the most strengths possible. Some parts are from different years, different models, different drivetrains and even different editions.
Are there too many mixed parts, or would the steering system from an f250 or f350 donor work? Im doing the tie rod flip right now and there's a pretty clean 90 f350 supercab at the Junkyard..thought I might upgrade.
CDA 455 likes this.

A society that puts equality before freedom will get neither. A society that puts freedom before equality will get a higher degree of both. - Milton Friedman -
RicoBronco is online now
post #47 of 60 (permalink) Old 03-17-2016, 12:34 AM Thread Starter
Nothing beets a Fullsize

Kingfish999's Avatar

Join Date: May 2010
Location: Palm Harbor FL
Posts: 7,709
Bronco Info: 96 Bronco (5.8 DD E4OD), 88 Bronco Mudder (Engineless), 90 F250 (Explorer 5.0 4R70W)
iTrader: (21)
Garage
Quote:
Originally Posted by RicoBronco View Post
Are there too many mixed parts, or would the steering system from an f250 or f350 donor work? Im doing the tie rod flip right now and there's a pretty clean 90 f350 supercab at the Junkyard..thought I might upgrade.
IIRC, the short driver side tie rod is the same as stock for bronco and f250. the longer driver side is indeed stronger however. im not sure about f350 with the solid axles
CDA 455 likes this.


-----96 5.0 E4OD--------------88 5.8 C6--------------96 5.8 E4OD------
---------KIA-------------------Mud/Trail---------------Daily Driver------
Kingfish999 is online now
post #48 of 60 (permalink) Old 03-17-2016, 12:51 AM
Bronco Snob

RicoBronco's Avatar

Join Date: May 2012
Location: Spokane
Posts: 1,361
Bronco Info: 1992 XLT 351W E4OD 4" lift TRE flip 130 amp 3G Alt Saginaw P.S. BFG MT KM2 315 75 16
iTrader: (0)
Garage
Quote:
Originally Posted by Kingfish999 View Post
IIRC, the short driver side tie rod is the same as stock for bronco and f250. the longer driver side is indeed stronger however. im not sure about f350 with the solid axles
It's not an f350...it's an f250..my mistake. I think I'll get the entire setup..looks practically brand new, and it's only $27. Thanks for the write-up.
CDA 455 likes this.

A society that puts equality before freedom will get neither. A society that puts freedom before equality will get a higher degree of both. - Milton Friedman -
RicoBronco is online now
post #49 of 60 (permalink) Old 03-17-2016, 01:09 AM Thread Starter
Nothing beets a Fullsize

Kingfish999's Avatar

Join Date: May 2010
Location: Palm Harbor FL
Posts: 7,709
Bronco Info: 96 Bronco (5.8 DD E4OD), 88 Bronco Mudder (Engineless), 90 F250 (Explorer 5.0 4R70W)
iTrader: (21)
Garage
jsut because its something i should have done i added a small application chart on the second post of what vehicles were offered each part. they do not display what GVW came with them however. clicking on each link will display MOOGs page for each part with a more complete application chart. but that would take forever getting each of those parts from the correct vehicle. good luck
CDA 455 likes this.


-----96 5.0 E4OD--------------88 5.8 C6--------------96 5.8 E4OD------
---------KIA-------------------Mud/Trail---------------Daily Driver------
Kingfish999 is online now
post #50 of 60 (permalink) Old 09-09-2016, 01:53 AM
Registered User

Heihachi1337's Avatar

Join Date: Jul 2016
Location: Northern Nevada
Posts: 62
Bronco Info: 1996 Ford Bronco XL
iTrader: (0)
Garage
Okay, figure I would post my question here (there are 2 other threads that I read up on) regarding the TRE flip.

I have a 4-inch Rancho lift with the drop pitman arm and the old school straight extended radius arms.

I intend to the the TRE flip and there were 3 different sleeves I just saw. The one is from Bronco Graveyard (JBG), the other is the Ruff Stuff specialties (but I think it is for GM, unless someone can confirm the GM and Ford tie rod are same angle?) and the last one was from Poly Performance and I don't think they make the one for a Ford I think I only saw it for a Jeep.

I have no problem buying my own reamer, but I wouldn't mind the other sleeves instead where I don't have to worry about angles just punch a hole and hammer a sleeve until it bottoms on the shoulder. Are the other two sleeves even an option or is the one from JBG really the only one left available and proven?

1996 Bronco XL, 5.8L w/ K&N filter, shorty headers, larger exhaust, E4OD, 3.55 gears, 8.8 (Ford's wannabe GM rear axle), Dana 44, 31x10.5R15....so mostly stock.
Heihachi1337 is offline
post #51 of 60 (permalink) Old 03-16-2017, 01:21 AM
MidlifeCrisisUndrWay

CDA 455's Avatar

Join Date: Aug 2008
Location: 43rd 'Gem' State
Posts: 717
Bronco Info: '94 Bronco, 4" lift with front Air Lift/TRE Flip Upgrade/rebuilt E4OD (To PS specs)/33" BFGs.
iTrader: (0)
Bump and subscribed .

μολὼν λαβέ

CDA 455 is offline
post #52 of 60 (permalink) Old 05-11-2017, 01:23 AM
MidlifeCrisisUndrWay

CDA 455's Avatar

Join Date: Aug 2008
Location: 43rd 'Gem' State
Posts: 717
Bronco Info: '94 Bronco, 4" lift with front Air Lift/TRE Flip Upgrade/rebuilt E4OD (To PS specs)/33" BFGs.
iTrader: (0)
Quote:
Originally Posted by Kingfish999 View Post
Im sure quite a few of us had problems with bending tierods. Ive bent mine on my truck when i still had only 2" of lift, but now that i have a 6" lift i figuered it was time to do a tie rod end flip. Quite a few of us have done the TRE flip already but still use stock everythnig else. I found a thread awhile ago about upgrading to bigger tie rods and nobody seems to be aware of. So i thought i would do a write up on me doing mine.

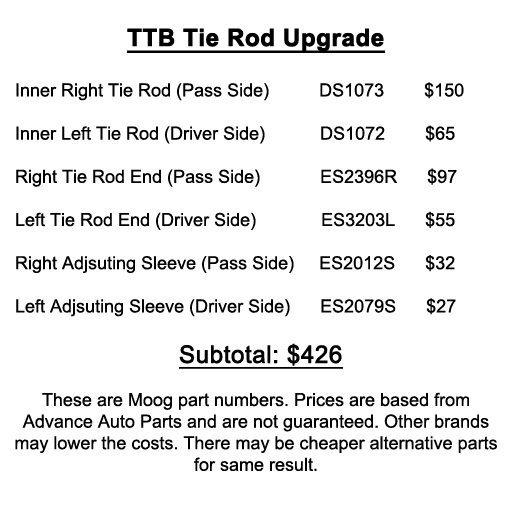

Here are the tierod parts i used (by Moog part number):

Long Inner Tie Rod (Passenger Side): DS1073
Short Inner Tie Rod (Driver Side): DS1072
Right Tie Rod End (Passenger Side): ES2396R
Left Tie Rod End (Driver Side): ES3203L
Right Adjsuting Sleeve (Passenger Side): ES2012S
Left Adjsuting Sleeve (Driver Side): ES2079S


it is a bit of an expensive upgrade. Probably best for when your exsiting is worn or bad. The joint studs are all the same size as stock. This can make it possible to do one side before the other if for some reason it was needed. This is a great upgrade weither you do the TRE Flip or not.
Do you know if Bronco Grave Yard's TR&Es are Moog parts or some other brand?


I'm having second thoughts on the 4" drop pitman arm I just bought.

BGY has a complete TR set up for $140.


Edit:
Also; Are the TR&Es parts for an F-250/350 rather than a FSB?

μολὼν λαβέ


Last edited by CDA 455; 05-11-2017 at 01:31 AM.
CDA 455 is offline
post #53 of 60 (permalink) Old 05-11-2017, 09:14 AM Thread Starter
Nothing beets a Fullsize

Kingfish999's Avatar

Join Date: May 2010
Location: Palm Harbor FL
Posts: 7,709
Bronco Info: 96 Bronco (5.8 DD E4OD), 88 Bronco Mudder (Engineless), 90 F250 (Explorer 5.0 4R70W)
iTrader: (21)
Garage
Quote:
Originally Posted by CDA 455 View Post
Do you know if Bronco Grave Yard's TR&Es are Moog parts or some other brand?


I'm having second thoughts on the 4" drop pitman arm I just bought.

BGY has a complete TR set up for $140.


Edit:
Also; Are the TR&Es parts for an F-250/350 rather than a FSB?
i have no idea what brand tie rods they use. there ball joints are Ignalls i think so that may use that brand for tie rods also.

i THINK 4x4 F250 set will work. think the passenger side is stronger than stock while the driver side is same size as stock. but neither side are as strong as the set i used in the post

on my previous bronco when i originally did this thread, i did jsut the tre flip and it worked great. but on my current bronco i found i had steering issues with jsut the flip so i did a drop pitman arm also. the drop pitman arm and the tie rod flip combined made it perfect for 6" lift
CDA 455 likes this.


-----96 5.0 E4OD--------------88 5.8 C6--------------96 5.8 E4OD------
---------KIA-------------------Mud/Trail---------------Daily Driver------
Kingfish999 is online now
post #54 of 60 (permalink) Old 05-11-2017, 04:58 PM
MidlifeCrisisUndrWay

CDA 455's Avatar

Join Date: Aug 2008
Location: 43rd 'Gem' State
Posts: 717
Bronco Info: '94 Bronco, 4" lift with front Air Lift/TRE Flip Upgrade/rebuilt E4OD (To PS specs)/33" BFGs.
iTrader: (0)
Well; I just took the plunge .

I bought the driver's side TRE last night and will split the cost by buying the pass. side next month.


Will also be shopping for the reamer and BGY sleeves this month as well.


BTW;
A minor reason why I'm going with the TRE flip is because I couldn't get the frickin' stock/factory pitman arm off !

That sucker is frozen/glued/welded/fused on there !

From what I remember; having a dropped pitman arm increases stress on the set up vs a non-dropped pitman arm set up. So with the flip; factory pitman arm is maintained and TREs are nice and flat, as originally designed.

μολὼν λαβέ

CDA 455 is offline
post #55 of 60 (permalink) Old 05-11-2017, 08:49 PM Thread Starter
Nothing beets a Fullsize

Kingfish999's Avatar

Join Date: May 2010
Location: Palm Harbor FL
Posts: 7,709
Bronco Info: 96 Bronco (5.8 DD E4OD), 88 Bronco Mudder (Engineless), 90 F250 (Explorer 5.0 4R70W)
iTrader: (21)
Garage
a dropped pitman arm will defiantly put more stress on the steering box itself. thats another advantage of the TRE flip.

ive had some pitman arms stuck before. heck ive broken 3 pullers trying to get 1 off before. ended up replacing the box with it still attached and buying a new pitman arm. some ive had come off very simple with a wack with hammer and no puller. its weird how some come off some dont.

if you do end up needing to buy a new factory pitman arm for any reason, i found that 32-spline Superduty pitman arm (Moog K80795) is MUCH beefier and was like half the price than the Moog stock replacment and is somewhat commonly available. its slightly longer and different angle tho so an alignment would be needed
CDA 455 likes this.


-----96 5.0 E4OD--------------88 5.8 C6--------------96 5.8 E4OD------
---------KIA-------------------Mud/Trail---------------Daily Driver------
Kingfish999 is online now
post #56 of 60 (permalink) Old 05-12-2017, 12:07 AM
MidlifeCrisisUndrWay

CDA 455's Avatar

Join Date: Aug 2008
Location: 43rd 'Gem' State
Posts: 717
Bronco Info: '94 Bronco, 4" lift with front Air Lift/TRE Flip Upgrade/rebuilt E4OD (To PS specs)/33" BFGs.
iTrader: (0)
That's exactly what happened to me !

I broke two pullers from my puller kit .


So that Super Duty pitman arm is a factory part?

μολὼν λαβέ

CDA 455 is offline
post #57 of 60 (permalink) Old 05-12-2017, 01:44 AM Thread Starter
Nothing beets a Fullsize

Kingfish999's Avatar

Join Date: May 2010
Location: Palm Harbor FL
Posts: 7,709
Bronco Info: 96 Bronco (5.8 DD E4OD), 88 Bronco Mudder (Engineless), 90 F250 (Explorer 5.0 4R70W)
iTrader: (21)
Garage
ya it was on early superduty 99-01 i think. same used with the 4-bolt box swap. jsut make sure its 32 spline, there were 36 splines that was also used and eventually went to.


-----96 5.0 E4OD--------------88 5.8 C6--------------96 5.8 E4OD------
---------KIA-------------------Mud/Trail---------------Daily Driver------
Kingfish999 is online now
post #58 of 60 (permalink) Old 05-15-2017, 06:23 PM
MidlifeCrisisUndrWay

CDA 455's Avatar

Join Date: Aug 2008
Location: 43rd 'Gem' State
Posts: 717
Bronco Info: '94 Bronco, 4" lift with front Air Lift/TRE Flip Upgrade/rebuilt E4OD (To PS specs)/33" BFGs.
iTrader: (0)
The driver's side arrived today.


Man; the replacement parts are massive compared to the original being replaced !

μολὼν λαβέ

CDA 455 is offline
post #59 of 60 (permalink) Old 05-15-2017, 07:27 PM Thread Starter
Nothing beets a Fullsize

Kingfish999's Avatar

Join Date: May 2010
Location: Palm Harbor FL
Posts: 7,709
Bronco Info: 96 Bronco (5.8 DD E4OD), 88 Bronco Mudder (Engineless), 90 F250 (Explorer 5.0 4R70W)
iTrader: (21)
Garage
did you order the F250 kit from JBG? or the parts from the thread? the F250 passenger side is much bigger than stock. the parts in the thread are bigger yet
CDA 455 likes this.


-----96 5.0 E4OD--------------88 5.8 C6--------------96 5.8 E4OD------
---------KIA-------------------Mud/Trail---------------Daily Driver------
Kingfish999 is online now
post #60 of 60 (permalink) Old 05-15-2017, 09:07 PM
MidlifeCrisisUndrWay

CDA 455's Avatar

Join Date: Aug 2008
Location: 43rd 'Gem' State
Posts: 717
Bronco Info: '94 Bronco, 4" lift with front Air Lift/TRE Flip Upgrade/rebuilt E4OD (To PS specs)/33" BFGs.
iTrader: (0)
Quote:
Originally Posted by Kingfish999 View Post
idd you orde rthe F250 kit from JBG? or the parts from the thread? the F250 passenger side is much bigger than stock. the parts in hte thread are bigger yet
Oh; good query.


I used your Moog numbers from the OP and ordered them on eBay. They're all listed for F-250/350s and E-350s .

The driver's side cost me $97.

The pass. side will run about $135. I'll order these after the first of the month.


I'm about to head out to Home Depot and pick up the reamer .

μολὼν λαβέ

CDA 455 is offline
Reply

  Ford Bronco Forum > Bronco Discussions > Technical Write Ups

Quick Reply
Message:
Options

Register Now



In order to be able to post messages on the Ford Bronco Forum forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.

User Name:
Password
Please enter a password for your user account. Note that passwords are case-sensitive.

Password:


Confirm Password:
Email Address
Please enter a valid email address for yourself. DO NOT USE Gmail.com accounts. If you only have a Gmail.com email please contact the administrator here

Email Address:
OR

Log-in









Human Verification

In order to verify that you are a human and not a spam bot, please enter the answer into the following box below based on the instructions contained in the graphic.



Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page
Display Modes
Linear Mode Linear Mode



Posting Rules
You may not post new threads
You may post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On


For the best viewing experience please update your browser to Google Chrome
