Changing Auto hubs to Warn Manual Hub complete instructions with pics

Sorry, I no longer have this write up. It was lost in a server crash.

There are TONS of great write ups on this board, so please use the search function to your advantage.

Jer

"For me, it is far better to grasp the Universe as it really is than to persist in delusion, however satisfying and reassuring."
Carl Sagan PH.D.
godless is offline
Sponsored Links
Advertisement

post #2 of 33 (permalink) Old 09-06-2005, 11:24 AM
Registered User

desertdave's Avatar

Join Date: Aug 2005
Location: Marana, AZ
Posts: 49
Bronco Info: 1991 Silver Anniversary 5.0 E4OD
iTrader: (0)
This is not my write up, it was sent to me and I will share it with you.

Install Warn manual hubs
Introduction
The problem started when I found my "new" full size 1989 Bronco's four wheel drive
was only 2 wheel drive! No power was being delivered to the front wheels. It was mentioned
at fullsizebronco.com that if one of the auto hubs was bad and there was an open diff
in the front, which 99% of the time its open from the factory, then one wheel (most likely
the one with the bad hub) will have the axle shaft free spin inside of the hub.Disclaimer
Before I get too involved, let me mention I cannot be held responsible for any damage
to your vehicle or personal injury to anyone if you fail to properly install your own
manual hubs. This article is for information and education, and is not a substitute
for experience and knowledge in performing your own repairs. Who ever performs
the actual work on your vehicle assumes all responsibility and liability.

Source
Advance Auto netted me a set of standard Warn manual lockout hubs for $59 and
a set of 1/4" Torx sockets for $15. The Torx sockets are needed since the factory
auto hub uses Torx screws to hold the cover on.

Tools List
Torx bits - Allen wrenches - #2 flat blade screw driver - claw hammer - Crow Bar
Black rubber tie-down strap with hooks - Needle nose pliers________________________________________

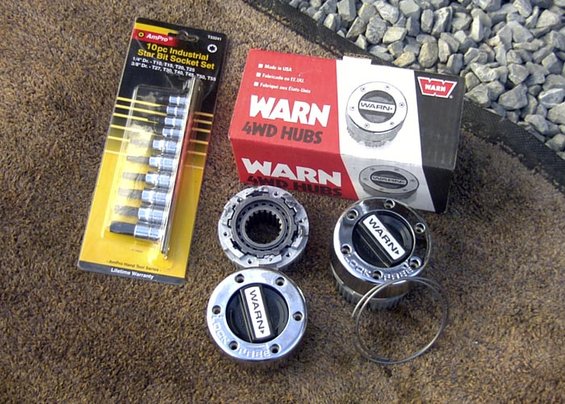

New Warn hubs and Torx sockets

Stock/factory auto locking hubs________________________________________

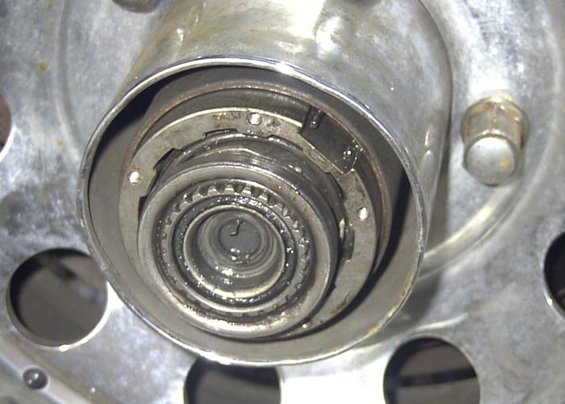

Auto hub cover removed________________________________________

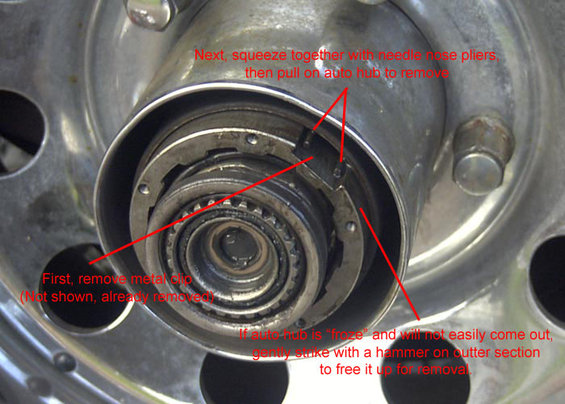

First, removed the metal clip (not pictured, already removed) and with needle nose
pliers, squeeze the tabs of the locking ring together. Gently pull and the auto hub
assembly will easily come out. If the lockout is "froze"in the drum, gently tap
around the outside to free it up. It may also be helpful to re-insert some of the
cap screws to pull the assembly out with.
________________________________________

Factory auto hub on its way out________________________________________


Factory auto locking hub assembly removed________________________________________

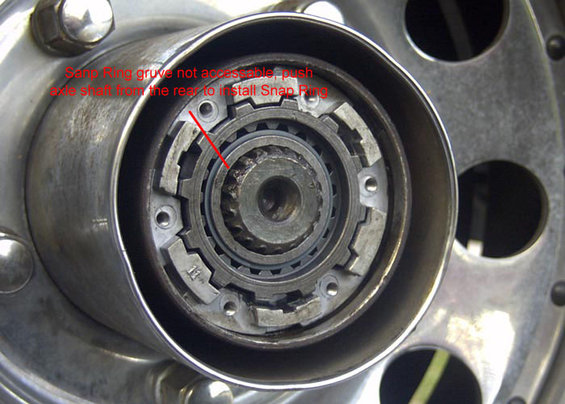

With the auto locking assembly removed, inspect for a gruve that holds a C-Clip in place. Remove the C-Clip and then the spacer/washer.



Next, your ready to install the manual hub. As you can see in this picture, the snap ring groove is not visible, and thus cannot be accessed. The snap ring must be
installed.________________________________________

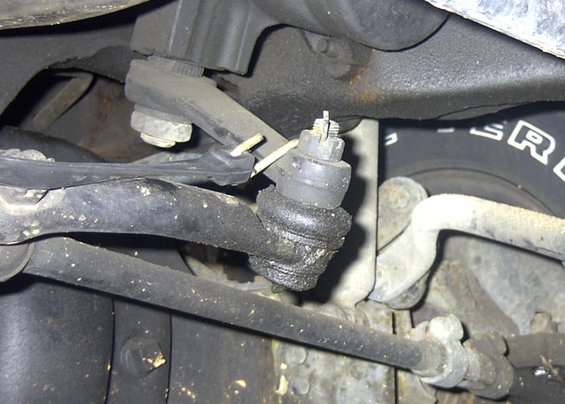

As I was doing this project "Lone Ranger" style, I needed to apply outward pressure on the axle shaft u-joint. The only way I could quickly resolve this was to place a standard crow bar behind the u-joint and using a black rubber tie-down strap to pull tension on the crow bar. I simply hooked the other end to the Pittman arm. ________________________________________

With pressure on the u-joint, the axle shaft was pressed in just the right distance to install the snap ring. ________________________________________

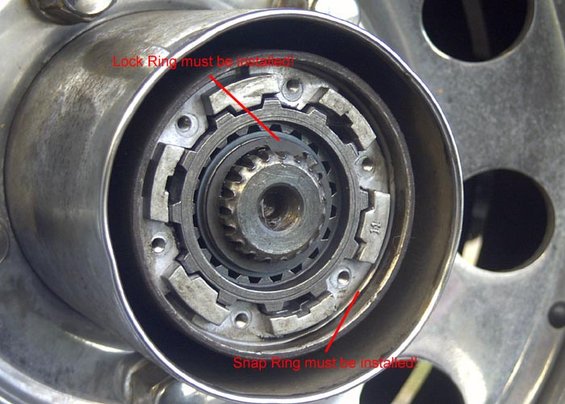

Ignore the mislabel on the first picture, just swap the labels. Here we see the snap ring installed. In the second picture, the lock ring is installed. Both were very easy to fit in place.________________________________________

Install the cap and tighten down the 6 Warn provided cap screws with your Allen wrench. Finished, move to the next wheel! ________________________________________
Road Test
Time for the road test! Although, you don’t actually want to do a road test on
the road! Running 4X4 on dry pavement has a nasty habit of creating drive line
windup, which results in excessive tension place on all drive line components.
The only way for this stress to relieve its self is to break the weakest part. Most
likely, your new hubs or a U-Joint will pop leaving you a bad feeling in the tummy.

I found a pig-path near the house years ago, so I headed off while I still had some daylight.
Keep your vehicle in 2X4, put your truck in the mud and hammer down. Observe only the
rear tires spin. Lock in your hubs and switch to 4X4. You should notice a great difference.
Given the right circumstances (Slick enough mud, hard enough gas) you should be able
to visually observe a front tire spin such as I did. Proof positive, your front tires are engaged!
________________________________________


Closing Notes
The entire project took me about an hour and 15 minutes. The main reason for such
a long time was mainly never having performed such a service before. I simply have
never had the necessity to mess with locking hubs. My bit of advice, throw away the
manual that came with the manual hubs, and print out this page.

I spent almost an hour on the first side, then on the second side I could not for the
love of money get the auto hub assembly to come free! I struggled with it for the longest
time before I resorted to using the "persuader" to free it up. Once whacked about 4 times
in different spots, the assembly came out easily. Remove the fight with the stuck assembly
and actual wrench time would have been closer to 10 minutes.

Your times should be greatly accelerated, since the hard part of figuring out what to do
has been done for you. If you encounter no problems, I would think you should be able to
do both sides and be washing up in 40 minutes or less. If I had to do it all again, I feel
certain I could do the job in 20- 25 minutes, tops.

Feel free to use the text and pictures and even duplicate the page, but please give
credit to myself (Andrew Daniel) and to fullsizebronco.com when doing so. I hope
very much this digital article has been of help to you![/CENTER]

2001 F-150 Supercrew Lariat 5.4L
1991 Silver Anniversary Bronco 5.0L
1970 Mustang 302 4V

Last edited by desertdave; 02-20-2007 at 07:49 AM. Reason: update pics
desertdave is offline
post #3 of 33 (permalink) Old 08-18-2006, 03:03 AM
Registered User

Join Date: May 2006
Posts: 18
iTrader: (0)
Hello all,

Was wondering if the spacer/washer needs to be re-installed prior to installing the warn maual hub? Or weather once removed along with the c-clip is all discarted, the c-clip and spacer/washer.

thanks,

Carlos

I have a long trip to make tomorrow, and i am nervous to know the answer to the above question
cayovelez is offline

post #4 of 33 (permalink) Old 01-19-2007, 05:49 PM
Designated Tranny Killer

JD_Bronco's Avatar

Join Date: Jan 2006
Location: Shippensburg/Reading, PA
Posts: 6,961
Bronco Info: Sold--'89 FSB, 2" lift, lots 'o' lights, custom bumpers, exhaust, intake, stereo, other stuff
iTrader: (13)
Quote:
Originally Posted by cayovelez View Post
Hello all,

Was wondering if the spacer/washer needs to be re-installed prior to installing the warn maual hub? Or weather once removed along with the c-clip is all discarted, the c-clip and spacer/washer.

thanks,

Carlos

I have a long trip to make tomorrow, and i am nervous to know the answer to the above question

i just did the same swap and used these directions and have the same question

~Dave~
1998 Jeep Wrangler, 5.5" lift, wheels, tires and all the other cool stuff.
1997 Dodge Ram 5" lift, 35"s, 396 stroker, stereo, and some random things
JD_Bronco is offline
post #5 of 33 (permalink) Old 01-19-2007, 07:01 PM
Banned

Steve83's Avatar

Join Date: Jul 2003
Location: Memphis, TN
Posts: 40,458
Bronco Info: '83 VIN & title on '93 frame/body w/'95 4.9L & EB paint
iTrader: (103)
The answer is no.

That spacer & inner C-ring are there to hold the axle stub OUTboard, so the u-joint remains aligned between the ball joints. Most manual locks won't fit over those parts, so they must be removed. But that function is performed by the E-ring that goes here:



So as long as you install that ring, the stub axle will be in the correct position.

Steve83 is offline
post #6 of 33 (permalink) Old 01-19-2007, 09:06 PM
Registered User

GearHead71's Avatar

Join Date: Sep 2006
Location: north county san diego ca.
Posts: 336
Bronco Info: 95 xlt 5.8 cali mass air e4od 33x12.5's
iTrader: (0)
Is it the same for the later models? I have a '96

As long as it does what it's built to do, it must be cool.
GearHead71 is offline
post #7 of 33 (permalink) Old 01-20-2007, 12:49 AM
Puts it were it doesnt go

94 muddy bronco's Avatar

Join Date: Jul 2006
Location: Right between nowhere and somewhere, SC
Posts: 641
Bronco Info: Got replaced by something less off-roady....for now
iTrader: (0)
no. you will need a conversion kit sold by warn. right now you have a 3 screw hub. you need the kit to change it to a 5 screw. check steves supermotors. it helpes a lot

Angry Voice: Vote Damit! http://top4x4sites.com/
Dodge= Paper meche on wheels
94 muddy bronco is offline
post #8 of 33 (permalink) Old 01-20-2007, 12:53 AM
www.lifted4christclub.com

big_ol_bronco78's Avatar

Join Date: Jul 2006
Location: Grand Rapids, MI
Posts: 2,712
Bronco Info: stock 85 ford bronco XLT
iTrader: (30)
does my 86 need the conversion kit too?

"He lifted me out of the slimy pit, out of the mud and mire;
He set my feet on a rock and gave me a firm place to stand." (Psalm 40 : 2)
www.lifted4christclub.com
big_ol_bronco78 is offline
post #9 of 33 (permalink) Old 01-20-2007, 01:07 AM
Banned

Steve83's Avatar

Join Date: Jul 2003
Location: Memphis, TN
Posts: 40,458
Bronco Info: '83 VIN & title on '93 frame/body w/'95 4.9L & EB paint
iTrader: (103)
Did you read this thread???
Steve83 is offline
post #10 of 33 (permalink) Old 01-20-2007, 02:21 AM
Registered User

GearHead71's Avatar

Join Date: Sep 2006
Location: north county san diego ca.
Posts: 336
Bronco Info: 95 xlt 5.8 cali mass air e4od 33x12.5's
iTrader: (0)
Thanx. I thought I was gonna need that, but the rest of the job was same same.

As long as it does what it's built to do, it must be cool.
GearHead71 is offline
post #11 of 33 (permalink) Old 01-20-2007, 10:25 AM
www.lifted4christclub.com

big_ol_bronco78's Avatar

Join Date: Jul 2006
Location: Grand Rapids, MI
Posts: 2,712
Bronco Info: stock 85 ford bronco XLT
iTrader: (30)
i did read thread, when i brought it up the first time, only the first part loaded, i have dial up.

"He lifted me out of the slimy pit, out of the mud and mire;
He set my feet on a rock and gave me a firm place to stand." (Psalm 40 : 2)
www.lifted4christclub.com
big_ol_bronco78 is offline
post #12 of 33 (permalink) Old 02-18-2007, 04:27 PM
Registered User

Join Date: May 2004
Location: New Jersey, Bergen County
Posts: 1,306
Bronco Info: 92 Ford Bronco E.B
iTrader: (1)
hey guys ive installed the wanr premiuims in my 92 no problem everyhting wokrs great. it just did them in my 86 and they dont work when iput it in 4wd and lock the hubs i just hear it spinging in side and like clicking like its not fully engaging. whta could i have done wrong ive taken thse ford hubs apart tons of times and had no problem. i couldnt remember if i was suposed to leave the splined washer and snap ring and it didnt seem to fit with them in or just the washer and no snap ring. and fomr wat i just rear you leave them out so i guess i did that rite. and had left them out but they still wont enage

92 BRONCO E.B jasper rebuilt 302, rebuilt e4od, summit shorty headers, custom y pipe, WARN manual hubs, WARN 10k winich, MSD coil, 33x12.50x15 Goodyear Wrangler MT/R's, JBG front and rear driveshaft, Class 3 drawtite hitch, Smitybuilt(custom rear bumper), 6in bds lift with extended radius arms(junk), window visors and bug deflector, 2 100W KC daylights, rooftop&fender marker lights, soft top
xmeinherzbrennt is offline
post #13 of 33 (permalink) Old 02-21-2007, 04:56 PM
Registered User

abra's Avatar

Join Date: Jan 2005
Location: overland park , ks soon Austin Tx
Posts: 2,378
Bronco Info: 92' Eddie with rust, 302 auto(FOR SALE)
iTrader: (1)
pics look good

i did this last december, took very little time.

have a problem now

click click noise when driving in 2 wheel. when engage noise stops and when i use the brakes noise stops.

brake pads do have sleeves on back and i even used double tape. noise is still there
abra is offline
post #14 of 33 (permalink) Old 03-13-2007, 01:25 PM
Registered User

Bronconvict's Avatar

Join Date: Nov 2006
Location: Pomona
Posts: 282
Bronco Info: 1991 Bronco E.B. 302, 35"BFG/MT's,Radius Arms,ProComp 6",FlowMaster
iTrader: (5)
Installed my Warn's last night onto my 91. I probably wasted more time printing up the instructions. :) I couldn't beleive how easy it was. So I must say they were very good instructions as I give credit where it is due. Thanks.

<img src=http://www.fullsizebronco.com/forum/images/smilies/twak.gif border=0 alt= title= class=inlineimg /> <img src=http://www.fullsizebronco.com/forum/images/smilies/cheers.gif border=0 alt= title= class=inlineimg />
"Look mommy my 8" lift is aligned, shutup Billy it's Photochopped"
35's BFG MT's
Pro Comp 6" Stage II
Bronconvict is offline
post #15 of 33 (permalink) Old 03-13-2007, 01:42 PM
Registered User

Bronconvict's Avatar

Join Date: Nov 2006
Location: Pomona
Posts: 282
Bronco Info: 1991 Bronco E.B. 302, 35"BFG/MT's,Radius Arms,ProComp 6",FlowMaster
iTrader: (5)
Quote:
Originally Posted by xmeinherzbrennt View Post
hey guys ive installed the wanr premiuims in my 92 no problem everyhting wokrs great. it just did them in my 86 and they dont work when iput it in 4wd and lock the hubs i just hear it spinging in side and like clicking like its not fully engaging. whta could i have done wrong ive taken thse ford hubs apart tons of times and had no problem. i couldnt remember if i was suposed to leave the splined washer and snap ring and it didnt seem to fit with them in or just the washer and no snap ring. and fomr wat i just rear you leave them out so i guess i did that rite. and had left them out but they still wont enage
Ensure that the hubs work to begin with. Take them out and test them, They (the hub outer casing and the spindle sleeve) should spin independently when not engaged (or on "free" if you attach the cap) and when you engage the hub be sure the spline sleeve (on the hub where the axle shaft goes) rotates with the outer hub casing. If all is properly working, insert the warn hubs into the rotor hub housing and test again. After properly installed, turn the dial to "FREE" ; lift with jack and spin the tire, the tire should spin freely and not rotate the axle shaft. when engaged the axle should turn.

<img src=http://www.fullsizebronco.com/forum/images/smilies/twak.gif border=0 alt= title= class=inlineimg /> <img src=http://www.fullsizebronco.com/forum/images/smilies/cheers.gif border=0 alt= title= class=inlineimg />
"Look mommy my 8" lift is aligned, shutup Billy it's Photochopped"
35's BFG MT's
Pro Comp 6" Stage II
Bronconvict is offline
post #16 of 33 (permalink) Old 04-12-2008, 03:56 PM
Registered User

mikejustowns's Avatar

Join Date: Sep 2007
Location: Massachusetts
Posts: 150
Bronco Info: 1986 Ford Bronco XLT 5.0
iTrader: (1)
This is pretty sweet. Is it the same to switch Factory Manual Hubs to Warn Premiums?


New Rig: 1986 Bronco XLT 5.0

"Don't find fault, find a remedy." - Henry Ford
mikejustowns is offline
post #17 of 33 (permalink) Old 04-12-2008, 04:02 PM
Registered User

endge21's Avatar

Join Date: Feb 2008
Location: VA Beach, VA
Posts: 88
Bronco Info: 1990 Bronco Eddie Bauer, 5.0L w/E40D
iTrader: (0)
Quote:
Originally Posted by mikejustowns View Post
This is pretty sweet. Is it the same to switch Factory Manual Hubs to Warn Premiums?
i dont know, but if you do an advanced search in the tech write ups you can prolly find a write up for it, this isint the only one!

EDIT: heres the link for the factory manual to warn permium write up!
Warn Premium Install

1990 Bronco Eddie Bauer, 5.0L, E40D, K&N Filter, 33" Tires w/ black rims, warn manual hubs, sixliters ignition upgrade, pace setter headers, bassani y-pipe, catco cat and hooker aero muffler, the entire brake system is new, new torque converter, brand new shocks.
comming soon: 6" lift, gears, carpet, rust repair
endge21 is offline
post #18 of 33 (permalink) Old 09-10-2008, 08:18 PM
Registered User

Join Date: Aug 2008
Posts: 17
iTrader: (0)
ok, i followed everything like it said, but i couldnt figure out how to get the outside washer to go on before the snap clip. i installed it without the clip and it seems to work fine in free mode, but i havent tried lock yet. how important is that washer, or am i not supposed to use it, since the kit i have is kinda universal?
godjack is offline
post #19 of 33 (permalink) Old 05-16-2009, 04:21 PM
Registered User

Join Date: Jan 2009
Posts: 14
iTrader: (0)
how do you remove in inner c clip? I have everything off but it and I don't want to damage any of the splines in there. Is there a certain tool or way to get it out?
acpoweradapter is offline
post #20 of 33 (permalink) Old 05-16-2009, 04:55 PM
rolling Rolling ROLLING....

Join Date: Jun 2005
Location: sol cal (west covina)
Posts: 22,686
Bronco Info: 93 Cherokee
iTrader: (34)
Quote:
Originally Posted by acpoweradapter View Post
how do you remove in inner c clip? I have everything off but it and I don't want to damage any of the splines in there. Is there a certain tool or way to get it out?
the large clip or the small clip on the end of the axle shaft?

Tim

Newest token Jeep owner....

Redwagon is offline
Reply

  Ford Bronco Forum > Bronco Discussions > Technical Write Ups

Quick Reply
Message:
Options

Register Now



In order to be able to post messages on the Ford Bronco Forum forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.

User Name:
Password
Please enter a password for your user account. Note that passwords are case-sensitive.

Password:


Confirm Password:
Email Address
Please enter a valid email address for yourself. DO NOT USE Gmail.com accounts. If you only have a Gmail.com email please contact the administrator here

Email Address:
OR

Log-in









Human Verification

In order to verify that you are a human and not a spam bot, please enter the answer into the following box below based on the instructions contained in the graphic.



Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page
Display Modes
Linear Mode Linear Mode



Posting Rules
You may not post new threads
You may post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On


For the best viewing experience please update your browser to Google Chrome
