Easy to build tube bumper & CHEAP

I wanted to see if I could make a functional tube bumper cheap and with tools that a lot of us have or have access to:

Tubing I had left over from roll cage 1 3/4 X .120 DOM

welder

Harbor freight bender (the 1 1/4 pipe die worked great )

harbor freight tube notcher (I only notched a couple of pieces so a grinder would have worked just fine)

4in grinder

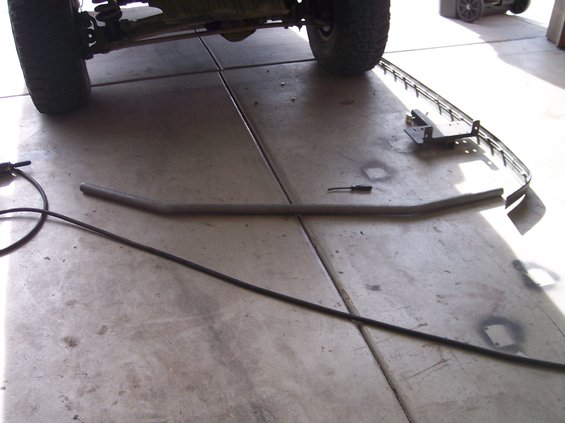

I started by bending the main bar 18in from the ends


I wanted to keep it simple so I re-used the original mounting brackets
I cut and notched two 3in pieces of tube and welded them to to brackets and then attached the main tube


next I cut two 8in tubes to connect the bottom and cut two tubes to complete the outer ends


then I took a winch mounting plate and another piece of tube for the center and welded it all together.

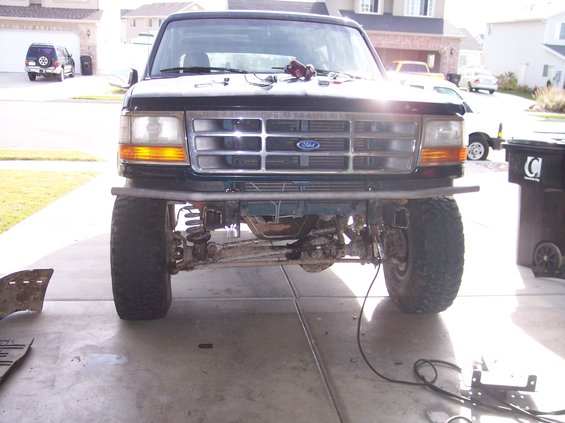

Its not bolted on tight so its sitting about a inch low

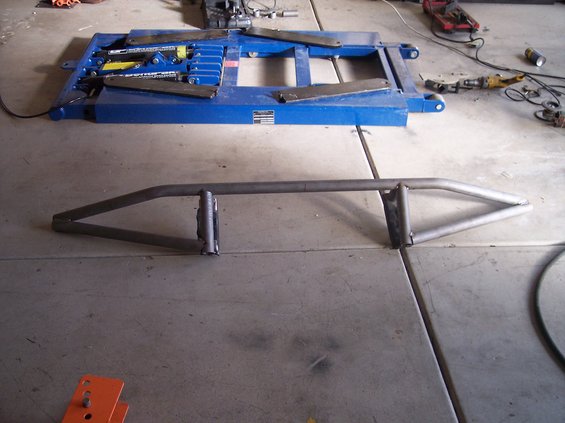

here is what it looks like off and painted


A few extra things to add. I capped the frame for looks and I probalby will plate the crumple zones for strength.
I kept the original mounting brackets to keep it simple but when I plate the crumple zones I plan to gusset the back of the piece that is welded to the frame.
The harbor freight bender work great for just these light bends, if you had to do anything more then a few degrees I would have used a different bender.

I hope to get this completed tomorrow so I will hopefully have more pictures to come.
The Bucking Bronco is offline
Sponsored Links
Advertisement

post #2 of 58 (permalink) Old 11-19-2007, 01:10 AM
Engineer

ToddACimer's Avatar

Join Date: Apr 2004
Location: Oshkosh, Wi
Posts: 13,076
Bronco Info: 95 Eddie Bauer
some side pics would be nice

1995 Ford Bronco Eddie Bauer 351W 2.5" RC Lift 17" M/T Classic III's and 285/70/17 Toyo A/T, No Rust and Lots of Wax
ToddACimer is offline
post #3 of 58 (permalink) Old 11-19-2007, 01:14 AM Thread Starter
Registered User

Join Date: Jul 2007
Posts: 286
I will get some up tomorrow
The Bucking Bronco is offline
post #4 of 58 (permalink) Old 11-19-2007, 11:05 AM
has no skidplate

rightofway's Avatar

Join Date: Sep 2006
Location: baton rouge louisiana
Posts: 4,330
Bronco Info: 1990 5.8l on 33" BFG A/T, warn hubs
kewl
you gonna put a winch on it?

rightofway is offline
post #5 of 58 (permalink) Old 11-19-2007, 11:12 AM
F.O.T.M. - MAY 2014!!!

fartman's Avatar

Join Date: Jan 2005
Location: Los Angeles, California
Posts: 6,266
Bronco Info: 88 FSB. 4.9l -T18-BW1356-33" MTs-Warn hubs Daystar leveling kit
I like it.

Sliding rear windows, GT roll bar, Cargo net and looking for other rare options. 4.10 gears LSD 33" MTs First ever Stock Fullsize of the Month...
J A S N http://www.supermotors.net/registry/19528
fartman is offline
post #6 of 58 (permalink) Old 11-19-2007, 11:59 AM
Registered User

elmo_4_vt's Avatar

Join Date: Feb 2007
Location: Northern Delaware
Posts: 600
Bronco Info: '96 Bronco - 5.8ltr, 55k miles, 6" SAS
Can you show what the HF bender and notcher look like? What was the lift looking thing on the garage floor?

-
elmo_4_vt is offline
post #7 of 58 (permalink) Old 11-19-2007, 12:47 PM
Diesel Gynachologist

Dustin's Avatar

Join Date: Feb 2003
Location: Peoria Arizona
Posts: 12,500
Bronco Info: 2001 F350
not really a write up so moving here

Ford Senior Master Technician

http://www.superford.org/registry/ve...x.php?vID=1309
Quote:
"The existence of flamethrowers is proof that someone, somewhere, said to himself, "I want to set those people over there on fire, but I don't feel like walking over there to do it."
Dustin is offline
post #8 of 58 (permalink) Old 11-19-2007, 12:54 PM
Registered User

Join Date: Mar 2007
Location: UT/TX
Posts: 1,738
Bronco Info: Stock, low mileage, 5.0, 1989 with manual trans
Quote:
Originally Posted by elmo_4_vt View Post
Can you show what the HF bender and notcher look like? What was the lift looking thing on the garage floor?

-
Check out the Harbor Freight site...they have good pics on most of their tools. The lift lying on the floor is either a motorcycle or a RV lift. Great item to have if you're when you're fabbing steel. A neighbor built his T-bucket frame on one in his garage.

Lest we forget:

SSgt Ray Rangel, USAF
SrA Elizabeth Loncki, USAF
PFC Adam Harris, USA
dan76 is offline
post #9 of 58 (permalink) Old 11-19-2007, 01:05 PM
Enjoy my

jmorriss's Avatar

Join Date: Apr 2007
Location: Beaverton, OR
Posts: 6,052
Bronco Info: '01 F150
What'd you use to bend the cage?

Quote:
Originally Posted by Thomas Jefferson View Post
Those who hammer their guns into plows will plow for those who do not.
Quote:
Please note that we have added a consequence for failure. Any contact with the chamber floor will result in an "unsatisfactory" mark on your official testing record, followed by death. Good luck!
jmorriss is offline
post #10 of 58 (permalink) Old 11-19-2007, 01:49 PM
Back in Action

96GreenMonster's Avatar

Join Date: Jun 2006
Location: South Windsor CT
Posts: 6,568
Bronco Info: Puke Green Lot's of lift and 38s with Dana 60 SAS and 10.25 Rear
thats friggen sweet

CHECK OUT MY RIDES



Quote:
Originally Posted by amtarsha View Post
You're annoying me. Shut your manpleaser.
96GreenMonster is offline
post #11 of 58 (permalink) Old 11-19-2007, 03:49 PM
ford freak

monkey4life's Avatar

Join Date: Jun 2007
Location: Fort Collins Colorado
Posts: 733
Bronco Info: 1990 f150 5.0 m5od
thats awesome!
monkey4life is offline
post #12 of 58 (permalink) Old 11-19-2007, 04:41 PM Thread Starter
Registered User

Join Date: Jul 2007
Posts: 286
Answers:

Yes I am putting a warn winch on it (hopefully today)

The lift is a bendpak scizzor lift capable of lifting 6000 LB It lifts the bronco with no problems


I have a jd2 bender for the cage

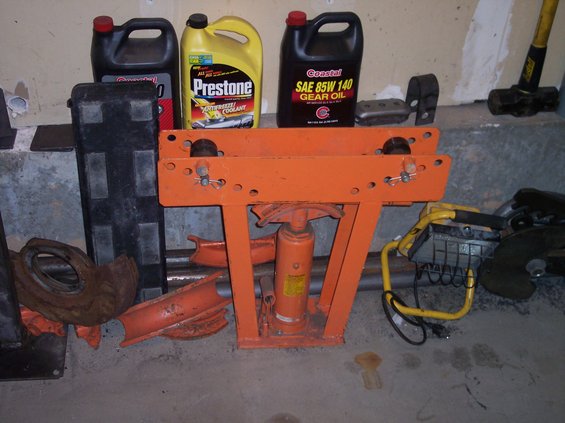

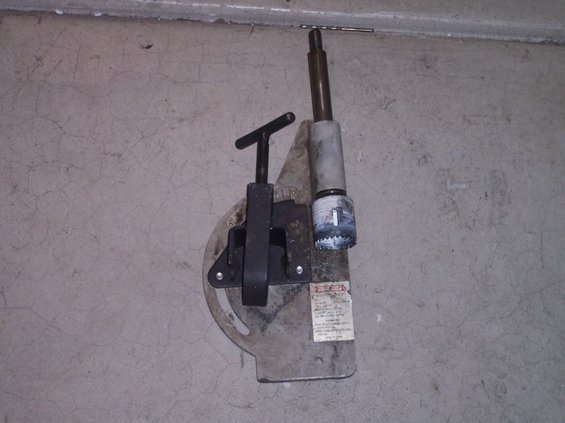

I will post some more pics along with the bender, notcher and winch later when I get it all mounted up

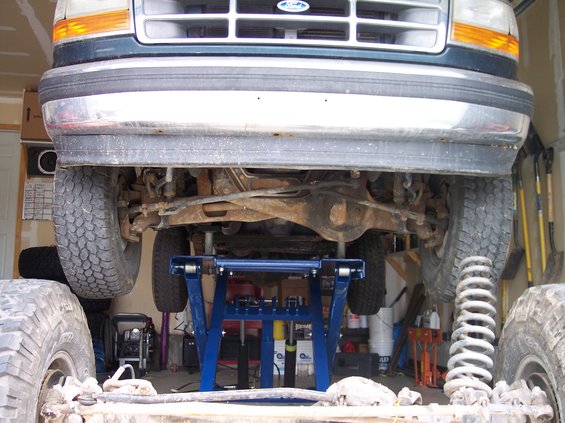

Here is a pic of the bronco on the lift it actually goes about a foot higher but with the garage door open i cant lift it that high

The Bucking Bronco is offline
post #13 of 58 (permalink) Old 11-19-2007, 04:56 PM
Registered User

chexmix's Avatar

Join Date: Feb 2005
Location: Palo Alto, CA
Posts: 1,074
Bronco Info: '89 Bronco XLT w/ I6, 5spd, 4" D44 SAS 4.09 and 10.25 4.10 ARBs
That is pimp, man I wish I had one of those@!

Lifted '89 Ford Bronco w/ 5spd & doubler - Representing Ford's I6 Stump Pullers!
UC4x4.com * http://www.supermotors.net/9090 * Follow my SAS buildup!
Quote:
Originally Posted by Hoxviii View Post
The goal here is to fix the problem, not treat the symptoms.
chexmix is offline
post #14 of 58 (permalink) Old 11-19-2007, 04:57 PM Thread Starter
Registered User

Join Date: Jul 2007
Posts: 286
I just noticed the bender is in that pic on the bottom right

and that lift is one of the best purchases i have made
The Bucking Bronco is offline
post #15 of 58 (permalink) Old 11-19-2007, 05:49 PM
has no skidplate

rightofway's Avatar

Join Date: Sep 2006
Location: baton rouge louisiana
Posts: 4,330
Bronco Info: 1990 5.8l on 33" BFG A/T, warn hubs
with that lift would you be able to pull a tranny or oil pan or would you end up using the lift to set the truck on high stands?

also:
hmmm, seperated at the drawing board?


rightofway is offline
post #16 of 58 (permalink) Old 11-19-2007, 06:25 PM Thread Starter
Registered User

Join Date: Jul 2007
Posts: 286
not the tranny but easily the oil pan
The Bucking Bronco is offline
post #17 of 58 (permalink) Old 11-19-2007, 07:08 PM
RIP Spring Creek Off Road

bigbroncojeff's Avatar

Join Date: Sep 2004
Location: Houston/Spring,TX
Posts: 6,013
Bronco Info: '93 351 bronco thing
holy crap i want your lift... kudos on the cheap simple bumper... i probably wouldn't bust out the jd2 to do those minor bends either

........springcreekoffroad.com........
bigbroncojeff is offline
post #18 of 58 (permalink) Old 11-19-2007, 11:10 PM Thread Starter
Registered User

Join Date: Jul 2007
Posts: 286
just got everything completed

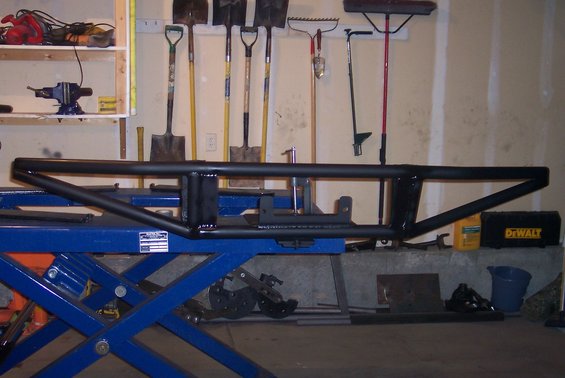

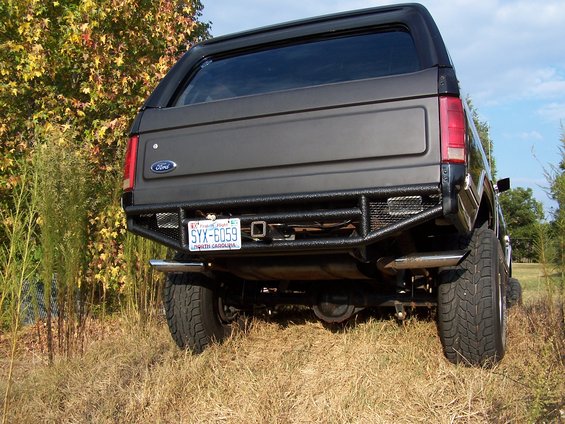

Here is a couple pics that were requested
