spindle mount for tire carrier - Ford Bronco Forum
 4Likes
  • 1 Post By 91FordGuy
  • 2 Post By 91FordGuy
  • 1 Post By Heihachi1337

LinkBack Thread Tools Display Modes
post #1 of 6 (permalink) Old 03-18-2016, 03:19 PM Thread Starter
Registered User

91FordGuy's Avatar

Join Date: Jul 2011
Location: Grand Junction, Colorado/ Ventura, California
Posts: 212
Bronco Info: 1981 4 inch lift w/35s. Built 300/T-19. Sliding Windows. Front&Rear Bumpers. Rock Sliders. Dual Batt
iTrader: (0)
Garage
spindle mount for tire carrier

So my previous tire carrier spindle failed and it was time to replace it. The previous spindle had a grease fitting on the top of the pin (which is a stupid design) because it sacrificed the strength of the spindle. I found the bumper in a junkyard so that is what you get when you do not know who/when it was fabricated.

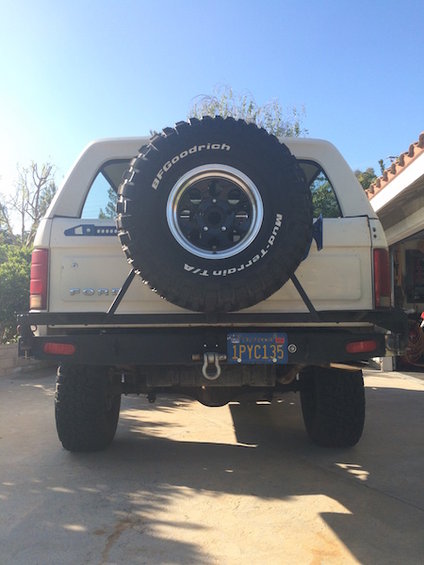

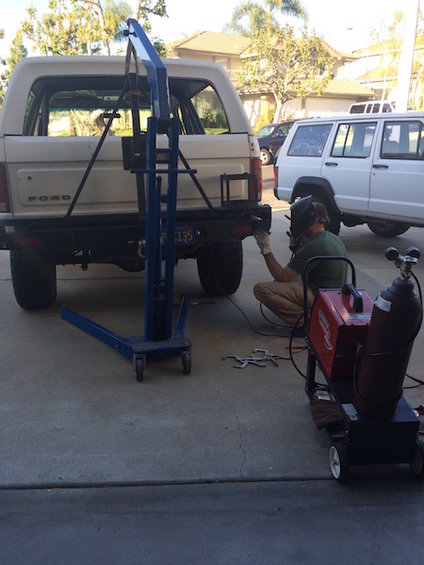

The new spindle is solid and 1 inch diameter. I know that guys usually use much bigger ones but my outer sleeve was machined with races and bearings to fit this size spindle so it was much easier. I just removed the old spindle and welded the new one to the same spot and added some gussets. I thought I'd post some pictures incase somebody needs some ideas for future reference.


dash_cam likes this.
91FordGuy is offline
Sponsored Links
Advertisement

post #2 of 6 (permalink) Old 04-20-2016, 09:57 AM
Registered User

aintskeerd's Avatar

Join Date: Sep 2015
Location: Tucson AZ
Posts: 29
Bronco Info: 1986 302 fuel injected 6" lift
iTrader: (0)
Looking good. My dilemma is to replace bumpers or fabricate around the he existing bumpers. I've grown fond of the look of my 86.

Sent from my XT1058 using Tapatalk
aintskeerd is offline
post #3 of 6 (permalink) Old 04-20-2016, 10:51 AM
Registered User

phobos2deimos's Avatar

Join Date: Dec 2009
Location: San Diego
Posts: 1,402
Bronco Info: A Very Special '86 302
iTrader: (5)
Lookin good!


Quote:
Originally Posted by TheUnforgiven View Post
you could use your own piss as brake fluid, it would just boil at a lower temperature.
phobos2deimos is offline

post #4 of 6 (permalink) Old 08-22-2016, 09:35 PM
Registered User

Heihachi1337's Avatar

Join Date: Jul 2016
Location: Northern Nevada
Posts: 62
Bronco Info: 1996 Ford Bronco XL
iTrader: (0)
Garage
That's pretty cool, I was looking for something like this.
Where did you get the spindle? was it fabricated on a lathe or did you buy it somewhere?
What sort of race/bearings are you using, if any?

1996 Bronco XL, 5.8L w/ K&N filter, shorty headers, larger exhaust, E4OD, 3.55 gears, 8.8 (Ford's wannabe GM rear axle), Dana 44, 31x10.5R15....so mostly stock.
Heihachi1337 is offline
post #5 of 6 (permalink) Old 08-24-2016, 01:39 PM Thread Starter
Registered User

91FordGuy's Avatar

Join Date: Jul 2011
Location: Grand Junction, Colorado/ Ventura, California
Posts: 212
Bronco Info: 1981 4 inch lift w/35s. Built 300/T-19. Sliding Windows. Front&Rear Bumpers. Rock Sliders. Dual Batt
iTrader: (0)
Garage
Quote:
Originally Posted by Heihachi1337 View Post
That's pretty cool, I was looking for something like this.
Where did you get the spindle? was it fabricated on a lathe or did you buy it somewhere?
What sort of race/bearings are you using, if any?
There is a shop near me that work on trailers and 4x4's so they had a ton of different trailer spindles in stock. The spindle I used had a square base so it was easy to line up against the face of the bumper. I'm using Timken bearings that I got at the same shop with a grease fitting on the outside of the outer sleeve.
johnnyk8 and Heihachi1337 like this.
91FordGuy is offline
post #6 of 6 (permalink) Old 08-24-2016, 10:52 PM
Registered User

Heihachi1337's Avatar

Join Date: Jul 2016
Location: Northern Nevada
Posts: 62
Bronco Info: 1996 Ford Bronco XL
iTrader: (0)
Garage
Quote:
Originally Posted by 91FordGuy View Post
There is a shop near me that work on trailers and 4x4's so they had a ton of different trailer spindles in stock. The spindle I used had a square base so it was easy to line up against the face of the bumper. I'm using Timken bearings that I got at the same shop with a grease fitting on the outside of the outer sleeve.
That helps me out in my search. I have conversed with a few people about building a rear bumper with the swing away carrier but I just couldn't figure out what to use for the spindle. This helps out quite a bit. :)
91FordGuy likes this.

1996 Bronco XL, 5.8L w/ K&N filter, shorty headers, larger exhaust, E4OD, 3.55 gears, 8.8 (Ford's wannabe GM rear axle), Dana 44, 31x10.5R15....so mostly stock.
Heihachi1337 is offline
Reply

  Ford Bronco Forum > Bronco Discussions > Fabrication, Tools, Equipment

Quick Reply
Message:
Options

Register Now



In order to be able to post messages on the Ford Bronco Forum forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.

User Name:
Password
Please enter a password for your user account. Note that passwords are case-sensitive.

Password:


Confirm Password:
Email Address
Please enter a valid email address for yourself. DO NOT USE Gmail.com accounts. If you only have a Gmail.com email please contact the administrator here

Email Address:
OR

Log-in









Human Verification

In order to verify that you are a human and not a spam bot, please enter the answer into the following box below based on the instructions contained in the graphic.



Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page
Display Modes
Linear Mode Linear Mode



Posting Rules
You may not post new threads
You may post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On


For the best viewing experience please update your browser to Google Chrome
