Bronco Ranger F-350. My build.

This my build thread for my 1979 bronco. I have posted up some of these pictures already, so some might look familiar. It looked like this when I got it.

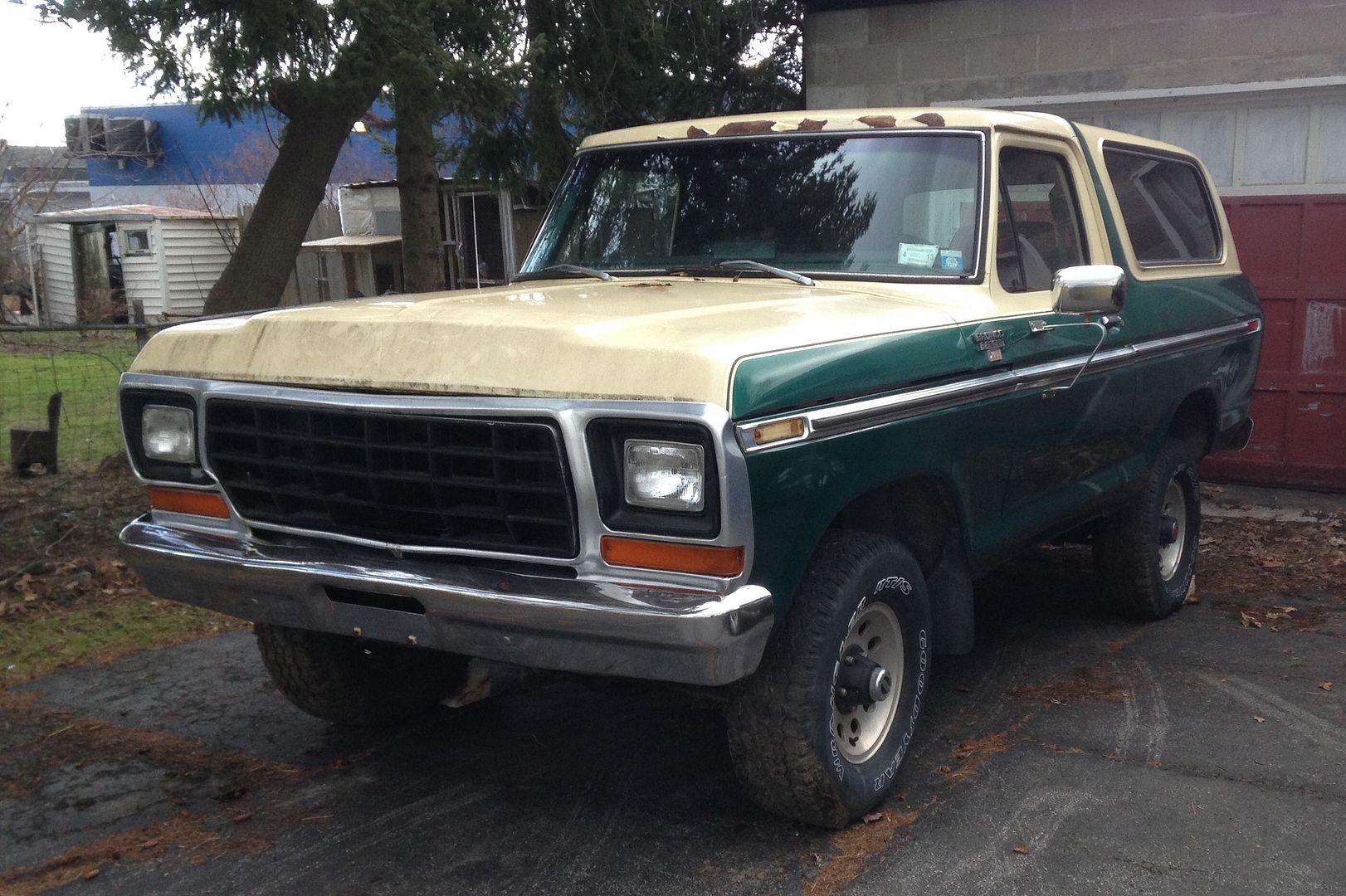

Not too bad, a little rust in the drivers side quarter.

Then there is the floor. Well, what was left of it.

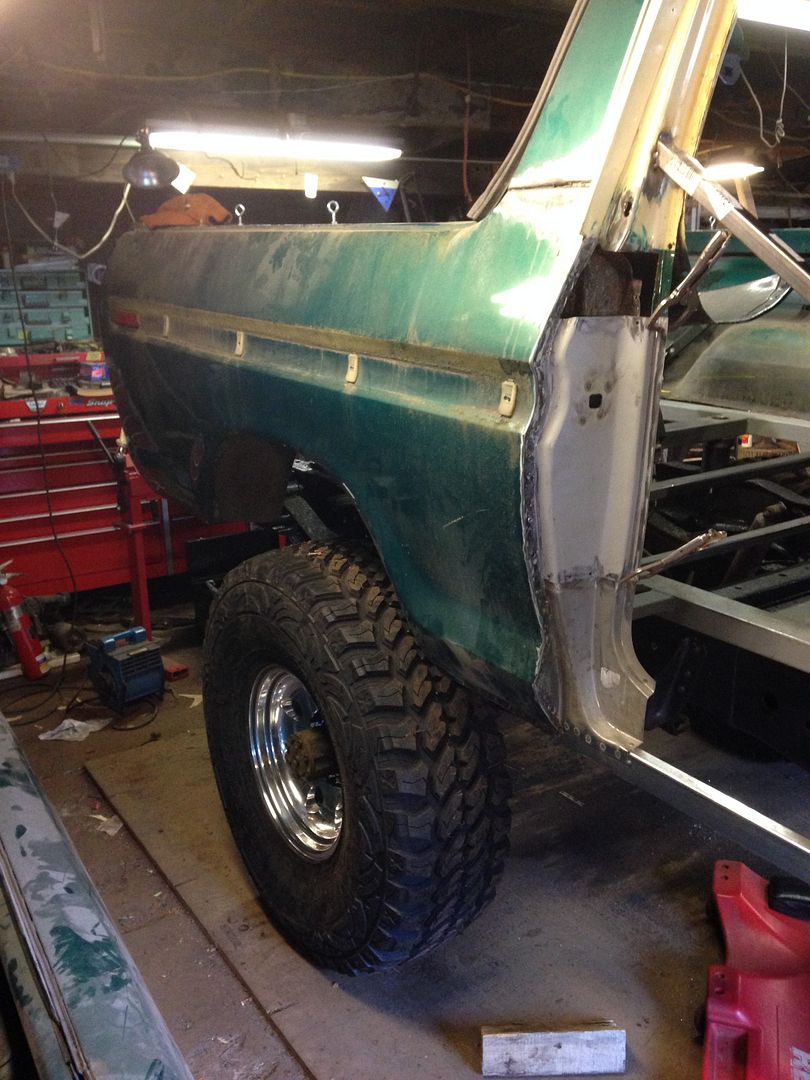

The whole floor was junk. I cut it all and tossed it out except for a little bit around the transfer case shifter area.



Subframe was shot too, so that also when. I just kept a little bit that went under the front seats. Then built a new subframe from 2 x 3" box tubing. With the bronco frame still under it.



Rockers were both gone too. I ran a length of 1 x 2" box tubing inside the rocker. Should add a good deal of strengh.









Then out with the frame. Because it had rot holed in it too.



Like my lovely pile of bronco bits on the floor? I have a wheelbarrow full of rust pieces of bronco. The tires I am going to run are in this pic too. ProComp 40 x 13.5 17"



Bronco frame with my donor truck behind it.




Jess

1979 Bronco currently with 460 and C-6 trans.
RalphXL is offline
Sponsored Links
Advertisement

post #2 of 57 (permalink) Old 06-20-2016, 10:12 PM
Registered User

RacersJunkyard's Avatar

Join Date: Nov 2014
Location: Fort Worth, Texas
Posts: 473
Bronco Info: 1991 Bronco XLT
iTrader: (0)
Garage
Good gods! That's a ton of work! It looks awesome though. What was the wall thickness of the subframe that you installed?

Keep up the awesome work!
RacersJunkyard is offline
post #3 of 57 (permalink) Old 06-20-2016, 10:21 PM
FSM Lifetime

raleigh's Avatar

Join Date: Jun 2011
Location: Viva Las Vegas
Posts: 2,833
Bronco Info: '79 built 400, Ford 10.5" Rear, Dana 60 Front, Locked, Twin Sticked
iTrader: (3)
Amazing work man, the sub frame looks fantastic.

Dave

"...when a long train of abuses and usurpations, pursuing invariably the same object
evinces a design to reduce them under absolute Despotism, it is their right, it is their
duty, to throw off such Government, and to provide new Guards for their future security."
raleigh is offline

post #4 of 57 (permalink) Old 06-20-2016, 10:27 PM Thread Starter
Registered User

Join Date: Mar 2016
Location: Central New York State
Posts: 85
iTrader: (0)
Garage
Donor truck was a 1987 F-350 diesel. I gave up its frame with axles and the floor of its bed. The bed floor will replace the back of my bronco. I grabbed the fuel filler too, because, surprise, mine was rotted out.

I am going to keep the F-350's leaf sprung front Dana 60 set-up, Rear is a Sterling 10.25". 4.10 gears.

I had to cut the frame down in two places because I couldn't get all 28" out in one place. 21" out behind where the cab used to mount, and 7" up near the transfer case. I sandblasted and ground down the frame as much as I reasonable could, from the back up to the motor mounts. Then I brushed on a rust converter and painted it in Rustolium Hammertone.



I used sections of the frame that I removed to box in the areas where I made my cuts.





Motor under the plastic is the 460 that was in my bronco when I got it. I used L&L diesel to 460 swap brackets and mounts to bolt it into the truck frame.



Time to put the frame under the bronco for the first time.



Doing this all by myself can sometimes be a challenge, my Jeep was wiling to help give a push. You can see in this picture also that I have replaced the front floor pans and body mounts. Both the pans and mounts were junk on both sides.



I had to move the front body mounts for the frame ahead 6 1/4" to mate up with the bronco mounts. I moved them forward and up a bit.



Brackets are bolted with an extra piece on top to support the top of the bracket. Then I added a few welds just for my piece of mind. Haven't cleaned up the welds of painted any of it yet.



This pretty much bring me up to where I am now. I have the front body mounts bolted down. Next up is doing all the rest, three more sets. Plenty more things to do after that too.

Jess

1979 Bronco currently with 460 and C-6 trans.
RalphXL is offline
post #5 of 57 (permalink) Old 06-20-2016, 10:36 PM Thread Starter
Registered User

Join Date: Mar 2016
Location: Central New York State
Posts: 85
iTrader: (0)
Garage
Quote:
Originally Posted by RacersJunkyard View Post
Good gods! That's a ton of work! It looks awesome though. What was the wall thickness of the subframe that you installed?

Keep up the awesome work!
Thanks.

Tubing is .083" thick. I got it in 4' lengths that is why I have the weird part under where the rear seat goes. I had to add a bit of length, and still wanted it to be strong so, I kinda doubled it up.

Jess

1979 Bronco currently with 460 and C-6 trans.
RalphXL is offline
post #6 of 57 (permalink) Old 06-20-2016, 10:39 PM Thread Starter
Registered User

Join Date: Mar 2016
Location: Central New York State
Posts: 85
iTrader: (0)
Garage
Figured I would toss this one in here too. I like the angle, it shows how the 1 x 2" in the rocker attaches at the rear.

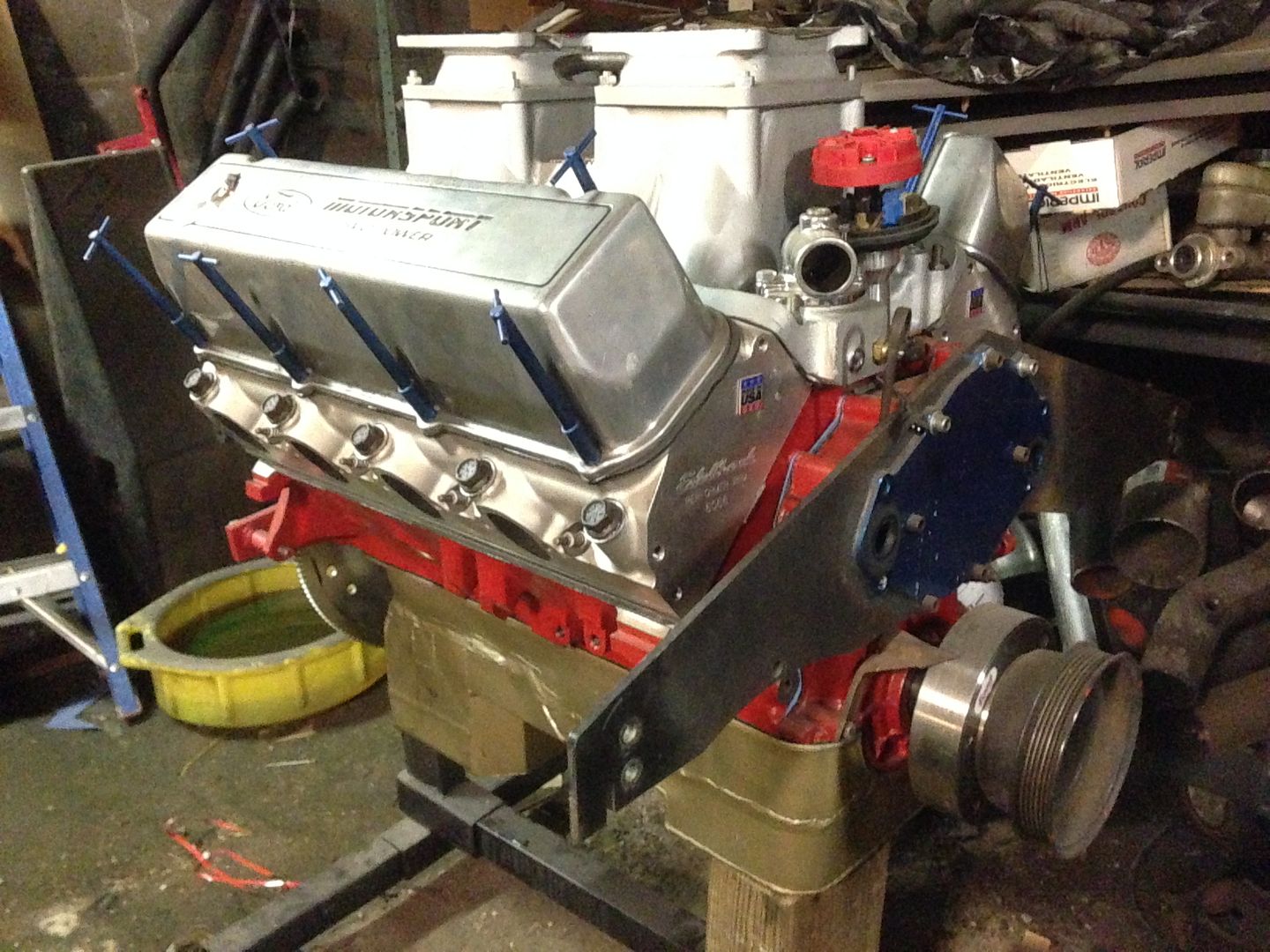

I won't be using that 460. The motor is going to be substantially bigger. :)

Jess

1979 Bronco currently with 460 and C-6 trans.
RalphXL is offline
post #7 of 57 (permalink) Old 06-21-2016, 12:19 AM
Harley's & Bronco's FTW!

BikerPepe`'s Avatar

Join Date: Feb 2003
Location: N.E. WA
Posts: 32,730
Bronco Info: '95 XLT, 5.8/E4OD/MassAir/6" lift/4.56's/35x12.5 BFG AT-KO2
iTrader: (4)
Garage


so very sub'd to this build.
Cobra07 likes this.

"When life throws you a curve... LEAN INTO IT!"

SuperMotors - Since 2002
BikerPepe` is online now
post #8 of 57 (permalink) Old 06-21-2016, 01:22 AM
Registered User

Decker's Avatar

Join Date: Mar 2006
Location: Newberg, OR
Posts: 513
Bronco Info: 1996 Silver and Blue Superlift 6" on 37's
iTrader: (2)
Holy hell that thing is a labor of love.

Good luck!

1996 XLT
Superlift 6", Custom Dents, Andy's Rocker guards, Extended radius arms, 35" Cepek Mountain Cats - soon to be parted

1996 XL 302/M5R2/BW1356/bottom base model
Decker is offline
post #9 of 57 (permalink) Old 06-21-2016, 01:36 AM
Registered User

trustyrusty's Avatar

Join Date: May 2013
Location: southwest ontario canada
Posts: 2,968
Bronco Info: driving a 78 rusty piece o crap owned 23 yrs, and working on another 78 bronco,mint,460
iTrader: (0)
Garage
wow,talk about jacking up the rad cap and installing a new truck under it!

hard to believe from the first pics of the bronco that rig was missing pretty much from the door striker down!
TheUnforgiven likes this.
trustyrusty is online now
post #10 of 57 (permalink) Old 06-21-2016, 10:27 AM
Registered User

RacersJunkyard's Avatar

Join Date: Nov 2014
Location: Fort Worth, Texas
Posts: 473
Bronco Info: 1991 Bronco XLT
iTrader: (0)
Garage
Quote:
Originally Posted by RalphXL View Post
I won't be using that 460. The motor is going to be substantially bigger. :)

Jess
Bigger like diesel bigger?
RacersJunkyard is offline
post #11 of 57 (permalink) Old 06-21-2016, 01:59 PM
Redneck Engineer

79BroncoSpringTx's Avatar

Join Date: Aug 2011
Location: Katy, Texas
Posts: 1,735
Bronco Info: 79 Bronco Ranger XLT C6 35's
iTrader: (0)
79BroncoSpringTx is offline
post #12 of 57 (permalink) Old 06-21-2016, 02:49 PM
Registered User

mrbollero's Avatar

Join Date: Mar 2016
Location: Fayetteville, AR
Posts: 312
Bronco Info: 1979 Custom 351m
iTrader: (0)
Garage
Wow. Love that paint scheme. You're going to a have a truck that will last decades... very nice job.

1979 Bronco Custom stock 351m, 33x10.5 BFG tires, Monstaliner paint job, work in progress!
Rusty Custom Build
mrbollero is online now
post #13 of 57 (permalink) Old 06-21-2016, 05:41 PM
Registered User

marshallnoise's Avatar

Join Date: Jun 2016
Location: Oceanside
Posts: 257
Bronco Info: '79 Custom
iTrader: (0)
Yeah, I gotta watch this. I can't wait to see what kind of power its gonna get. 1 tons are a good indication though...

1995 BMW 540i
'79 SHTF Daily Build
1997 Toyota 4Runner (locked)
marshallnoise is online now
post #14 of 57 (permalink) Old 06-21-2016, 11:58 PM Thread Starter
Registered User

Join Date: Mar 2016
Location: Central New York State
Posts: 85
iTrader: (0)
Garage
Quote:
Originally Posted by RacersJunkyard View Post
Bigger like diesel bigger?
Don't like diesels. It's a 545 stroker. Solid roller, tunnel ram, 10.7:1 compression. It was in my street/strip mustang which I sold as a roller to get this project moving. Well, actually pretty much to to be able to buy the tires and patch panels. That used up most of the cash.



I need to take of the motor plate and electric water pump stuff. Then swap in a more torquey cam. Going to stick with the solid roller but do something smaller that what was in the motor before. I have a couple 750 Carter carbs I can use or a couple Predator's too.

I got all the body mounts squared away that I can do now this evening. I think next will be the steering shaft, brake and fuel lines. It would be nice to get that stuff out of the way while there is no floor. Much better working from the top.

Jess
BikerPepe`, ghuculiak, JGR and 3 others like this.

1979 Bronco currently with 460 and C-6 trans.
RalphXL is offline
post #15 of 57 (permalink) Old 06-22-2016, 09:41 PM Thread Starter
Registered User

Join Date: Mar 2016
Location: Central New York State
Posts: 85
iTrader: (0)
Garage
Did the steering shaft today. I chopped off the end connected to the truck steering box, sleeved it, and welded it to the steering shaft that came with my bronco. It turned out good, looks like a straighter shot than the path that the stock shaft followed. I did screw up a bit and not pay attention to the position of the flange. I forgot that there was a flat on the splines so the shaft only goes in one way. I should be able to get the steering wheel straight later, it's only off about 1/8 turn.



Jess

1979 Bronco currently with 460 and C-6 trans.
RalphXL is offline
post #16 of 57 (permalink) Old 06-23-2016, 10:03 PM Thread Starter
Registered User

Join Date: Mar 2016
Location: Central New York State
Posts: 85
iTrader: (0)
Garage

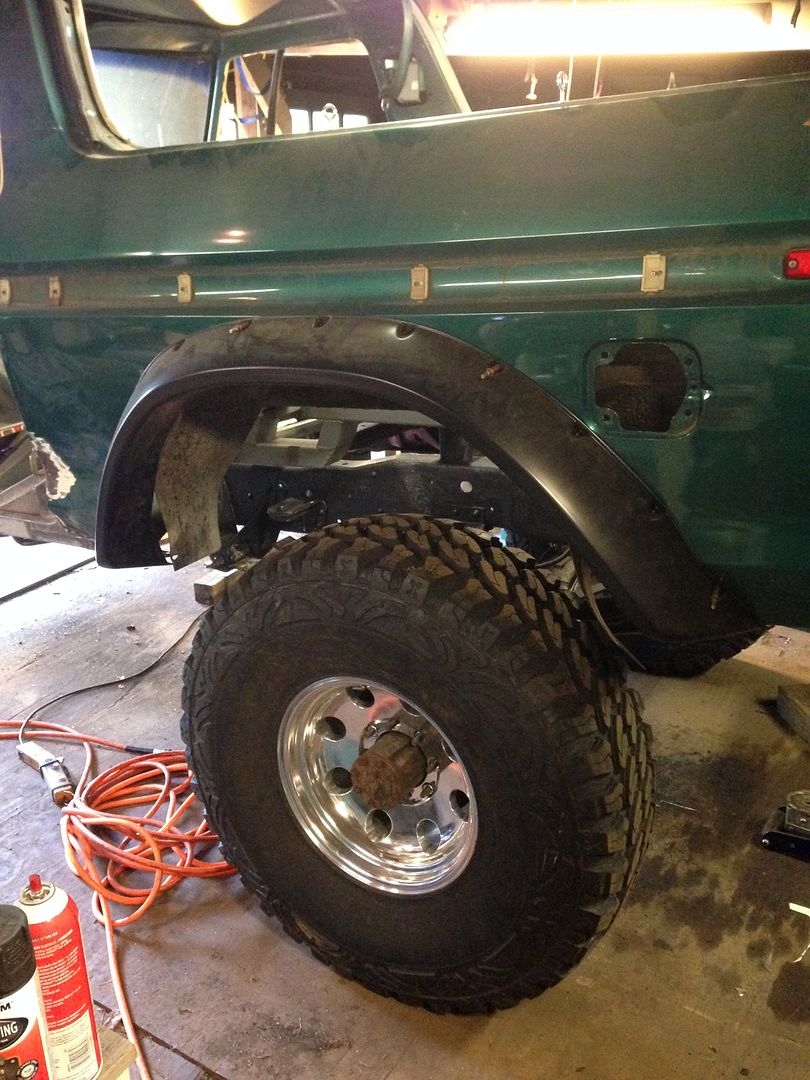

Flares or no flares?
