post #41 of 56 (permalink) Old 03-27-2013, 12:05 AM
Registered User

Bigtruck78's Avatar

Join Date: Jan 2010
Location: Chico, CA.
Posts: 54
Bronco Info: 78 Ford Bronco
iTrader: (0)
My husband and I are so stuck on these right now even though we colored em with all diff nail polishes of mine before pulling everything out. THANK YOU! =)
Bigtruck78 is offline
Sponsored Links
Advertisement

post #42 of 56 (permalink) Old 04-18-2013, 09:46 PM
FSM Lifetime

Join Date: Feb 2013
Location: Senatobia, MS
Posts: 82
Bronco Info: 1978 Ford Bronco, 351W, 4Speed
iTrader: (0)
You have any pics of the hoses that hook up to the PCV, crankcase filter, and air cleaner. I'm trying to figure out where my crankcase filter hose hooks up. I have an elbow on my passenger side valve cover but can't figure out how to connect it to the air cleaner. My PCV is in the oil filler/breather on the driver's side and it has a hose hooked to the base of the carb. Any pics would be helpful, thanks.

Quote:
Originally Posted by TNT89Bronco View Post

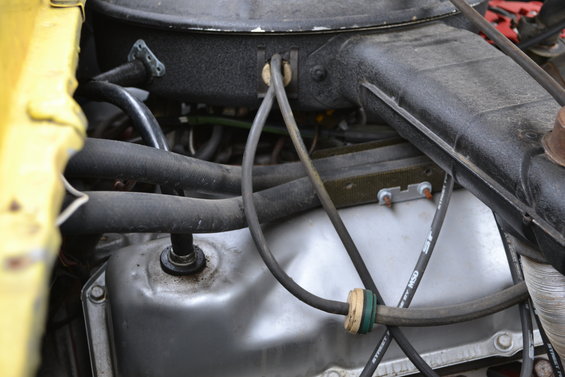

Here is a shot of my engine and where mine are:

drock15 is offline
post #43 of 56 (permalink) Old 04-19-2013, 01:51 PM
Registered User

rossisnow's Avatar

Join Date: Jan 2011
Location: Garberville Ca
Posts: 400
Bronco Info: 1978 Custom, 35" Toyo Open Country, 3"/4" Superlift, C6-mild shift kit, Fresh 400
iTrader: (0)
Quote:
Originally Posted by drock15 View Post
You have any pics of the hoses that hook up to the PCV, crankcase filter, and air cleaner. I'm trying to figure out where my crankcase filter hose hooks up. I have an elbow on my passenger side valve cover but can't figure out how to connect it to the air cleaner. My PCV is in the oil filler/breather on the driver's side and it has a hose hooked to the base of the carb. Any pics would be helpful, thanks.

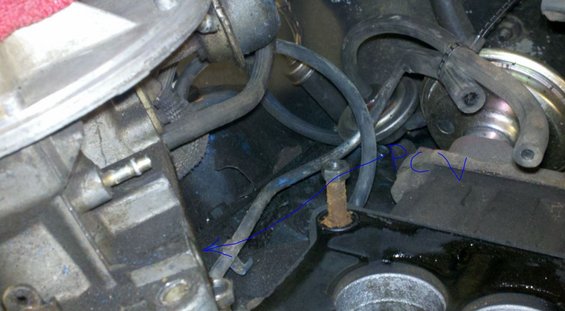

Best pic I have of the pcb inlet on the back/base of my old carb. See the little hole there? More pics at my supermotors account under motor rebuild. Cheers.
rossisnow is offline

post #44 of 56 (permalink) Old 04-19-2013, 10:17 PM
FSM Lifetime

Join Date: Feb 2013
Location: Senatobia, MS
Posts: 82
Bronco Info: 1978 Ford Bronco, 351W, 4Speed
iTrader: (0)
Quote:
Originally Posted by rossisnow View Post




Best pic I have of the pcb inlet on the back/base of my old carb. See the little hole there? More pics at my supermotors account under motor rebuild. Cheers.
Thanks
drock15 is offline
post #45 of 56 (permalink) Old 06-15-2013, 12:07 AM Thread Starter
How did I get 6 Rigs??

Join Date: Oct 2011
Location: San Ramon, CA
Posts: 607
Bronco Info: '79 351M NP435 and '78 Custom 400M C6 w/sliding windows
iTrader: (0)
Drawing of Vacuum hoses 1979 400/C6/AC

I figured I would try and make this something that an "average" person could understand. Dealing with the California smog police and the cost of failing a smog test is the pits.

I have a 1979 F-250 4x4 and a 1979 Bronco, both with a 400/C6/with AC. I followed the vacuum hoses on both of them and they were the same. I made a sketch of one, because the vehicles are at different locations and I wanted to be able to confirm that they were indeed the same. Here are my sketches with some added notes. Sorry for the line down the middle, my scanner has a bug in it. I hope they help....










'79 Bronco 351M 4 Speed Custom.
'79 Bronco. 400 C6 Custom w/AC.
'78 F250 400 Custom 4x4
'78 F250 460 C6 Camper Special
Check out my '79 Restoration Project...http://www.fullsizebronco.com/forum/...d.php?t=203050
TNT89Bronco is offline
post #46 of 56 (permalink) Old 07-26-2013, 08:11 PM Thread Starter
How did I get 6 Rigs??

Join Date: Oct 2011
Location: San Ramon, CA
Posts: 607
Bronco Info: '79 351M NP435 and '78 Custom 400M C6 w/sliding windows
iTrader: (0)
I want to confirm one thing on the Motorcraft 2150. The EGR is connected to the port on the back side of the carb, on the driver's side. My question is, what type of vacuum does this pull? I hooked up a vac gauge, and I didnt get any vacuum. I would guess that ths would be ported, and would have vacuum increase as the engine rev's higher.

I assume that this is the correct port, but what other port could I hook it to?

'79 Bronco 351M 4 Speed Custom.
'79 Bronco. 400 C6 Custom w/AC.
'78 F250 400 Custom 4x4
'78 F250 460 C6 Camper Special
Check out my '79 Restoration Project...http://www.fullsizebronco.com/forum/...d.php?t=203050
TNT89Bronco is offline
post #47 of 56 (permalink) Old 01-10-2014, 01:18 AM
Registered User

Join Date: Dec 2011
Posts: 3
iTrader: (0)
Time to revive this thread. Anyone in CA have a concours correct fully smog legal eng

Time to revive this thread. Who and I know that there are a few out there in CA who have a fully restored smog legal or all original engine bay. What would it take to have you post a detailed picture spread of what's what on your smog laden baby? Pictures are worth volumes and it is sometimes easier to just copy what's blatantly in front of you especially if you are diagram illiterate like me. I have a CA F250 2wd 460/c6 combo A/C Holley 4bbl stock carb. PO died and so in law tired to revive my baby. Could not get the original carb to work so he swapped in a no smog edelbrock carb. Barely starts and has most lines disconnected so i would love to SEE what goes where. Any help would be sweet. I have the Clymer repair manual and it sucks.
mofoco1 is offline
post #48 of 56 (permalink) Old 02-23-2014, 06:40 PM
Registered User

petlover07's Avatar

Join Date: May 2007
Location: Riverside, Ca
Posts: 850
Bronco Info: 1986 XLT 302 90,000 original miles
iTrader: (4)
LOL.. I am so freaking close. I have 2 vacuum lines that I don't know where they go, then I will have a complete Ca smog legal full on 77 F250. I have searched and searched. I found where one goes, then I just found another one today...Have NO idea where it goes, and the other one is coming off the back of the carb. It was capped off. I just rebuilt my carb and found it when I got the carb off. If I could get my camera that far down on the back, I could take a picture. The other one I just found today is really long and thick. It attaches to the purge canister, but there is no where for it to go on the upper side.

I will try and get pictures. This thread has helped a lot to make sure I have everything in its correct place.

1986 FSB
1965 F100
2012 Fusion

Ever "done it" in the back of a Bronco?
petlover07 is offline
post #49 of 56 (permalink) Old 03-05-2014, 02:31 PM
Registered User

Join Date: Oct 2011
Location: Arizona
Posts: 41
Bronco Info: 1979 Bronco Custom 78 F150 SB 78 F100 stepside 77 F100 stepside 68 Chevelle 72 Malibu 71 Nova
iTrader: (0)
Nice diagram, TNT89Bronco.... Thanks... very helpful! Now if I could just find out where to get some of the vacuum restrictors. :)
Broncogirl8 is offline
post #50 of 56 (permalink) Old 03-05-2014, 02:59 PM Thread Starter
How did I get 6 Rigs??

Join Date: Oct 2011
Location: San Ramon, CA
Posts: 607
Bronco Info: '79 351M NP435 and '78 Custom 400M C6 w/sliding windows
iTrader: (0)
Try RockAuto and LMC for the vacuum delay valves and the ported vacuum switches.

'79 Bronco 351M 4 Speed Custom.
'79 Bronco. 400 C6 Custom w/AC.
'78 F250 400 Custom 4x4
'78 F250 460 C6 Camper Special
Check out my '79 Restoration Project...http://www.fullsizebronco.com/forum/...d.php?t=203050
TNT89Bronco is offline
post #51 of 56 (permalink) Old 03-05-2014, 11:31 PM
Registered User

Join Date: Oct 2011
Location: Arizona
Posts: 41
Bronco Info: 1979 Bronco Custom 78 F150 SB 78 F100 stepside 77 F100 stepside 68 Chevelle 72 Malibu 71 Nova
iTrader: (0)
Thank you.... I actually found most of the EGR load control valve and most of the vacuum delay valves. I'll post the information for anyone else who need them. Seems like they have most hard to find parts. Talk to Sid... he was very helpful:

NOS ONLY
414 Umbarger Rd #E
San Jose, California 95111
(408) 227 - 2353
Broncogirl8 is offline
post #52 of 56 (permalink) Old 03-09-2014, 04:03 PM
Registered User

Join Date: Dec 2009
Location: Fort Benning
Posts: 28
Bronco Info: 1979 Bronco
iTrader: (0)
Quote:
Originally Posted by TNT89Bronco View Post
PURGE CV = Vapor Canister Purge Valve ( Can Someone Please Confirm)
So I just got rid of this the only line hooked up was to the gas tank. Can I seal off the gas tank or even better can I get a 33 gallon upgrade with no emissions hole?
timcozelos is offline
post #53 of 56 (permalink) Old 03-14-2014, 03:41 AM
Registered User

cosmo33's Avatar

Join Date: Mar 2011
Location: Chattanooga, Tn.
Posts: 129
Bronco Info: 1996 EB, 5.8 --- 1978 F150 SB 4x4
iTrader: (0)
This thread rocks, I just wanted to thank everyone that contributed to it. It made my job so much easier.
cosmo33 is offline
post #54 of 56 (permalink) Old 03-14-2014, 07:24 AM Thread Starter
How did I get 6 Rigs??

Join Date: Oct 2011
Location: San Ramon, CA
Posts: 607
Bronco Info: '79 351M NP435 and '78 Custom 400M C6 w/sliding windows
iTrader: (0)
Click image for larger version

Name:	ImageUploadedByAG Free1394796188.214136.jpg
Views:	955
Size:	106.7 KB
ID:	44145
If anyone wants a good book to help you really understand how your emission system works, this is a great resource. Pick em up off of EBay or Amazon, real cheap.


Sent from AutoGuide.com Free App

'79 Bronco 351M 4 Speed Custom.
'79 Bronco. 400 C6 Custom w/AC.
'78 F250 400 Custom 4x4
'78 F250 460 C6 Camper Special
Check out my '79 Restoration Project...http://www.fullsizebronco.com/forum/...d.php?t=203050
TNT89Bronco is offline
post #55 of 56 (permalink) Old 12-06-2014, 02:17 AM
Fullsize Member

Ziggy's Avatar

Join Date: Nov 2003
Location: Riverside, Ca
Posts: 2,005
Bronco Info: 79 Bronco
iTrader: (2)
[IMG]

I have read through this forum and it's been a wealth of information but I still have some questions that I couldn't find answers for. Since the previous owner removed everything emissions and trashed it all I've been picking everything I can find out of the junkyard. Picture is my emissions sticker that I have a couple of questions about.

1. It looks like I should have two charcoal canisters and not the normal of one that I've seen, can anyone confirm this?

2. Four port VCV located on top of the thermostat housing, what color/temp should this be?

3. Two port VCV located on the side of the thermostat housing, what color/temp should this be? I believe it should be green.

4. Dashed lines on emissions sticker, I'm thinking that these items were "optional"? I'm I correct on this or off in left field?

5. What is A and B pointing out other than a connection?

Thanks for the help.

3G Alt. Upgrade, Duel Batteries, 351M bored .030 over with Edlebrock cam and intake, C-6 w/AO4D internals, 3" lift w/RS 9000, 33x12.50 MTR's, Saginaw PS Pump Conversion, On Board Air, Detroit Locker, Hydro Boost Brake System, Altimeter from a CH-46D, Map Light from a MH-53E.

U. S. Government - Wasting paper and keeping Lumber Jacks gainfully employed since 1776.
Ziggy is offline
post #56 of 56 (permalink) Old 06-01-2015, 02:22 AM
Registered User

BirdDog79's Avatar

Join Date: May 2015
Location: Alaska
Posts: 14
iTrader: (0)
Quote:
Originally Posted by TNT89Bronco View Post
Attachment 44145
If anyone wants a good book to help you really understand how your emission system works, this is a great resource. Pick em up off of EBay or Amazon, real cheap.


Sent from AutoGuide.com Free App

Just ordered mine the other day. Can't wait for it to get here.

1979 Bronco RangerXLT, 400, 4.11 gears, all the options for that year, except cruise control...
BirdDog79 is offline
