C6 to ZF5 swap

I have decided to put the C6 to the curb since my Bronco is my DD. I got a 460 ZF5 I need to put in it. I have a 460 I am going to put in and the ZF5 is the way to go.


I have some questions though I did do research on it. Not many people have done this on our Broncos.

1) Can I use my current trans crossmember? Will it have to move?

2) Will I have to shorten or lengthen my driveshaft? (Heard people say the stock shaft will work)

3)What clutch assembly and linkages would i need or do I have to make them?

4)Also I plan to run a Borg Warner transfer case. Will driveshaft still work?
TheBlackDevil is offline
Sponsored Links
Advertisement

post #2 of 20 (permalink) Old 02-18-2013, 01:27 PM
Registered User

mantooth's Avatar

Join Date: Feb 2012
Location: marquette Mi
Posts: 87
Bronco Info: 1996 351w np435 swap, long arm sas, shackle flip 9" swap, 36" TSL Super Swampers grooved
1)You are probably better off just making a new cross member although the factory one will probably work it will just have to be relocated.
2)My guess would be yes you will have to get your driveshafts redone. when I swapped out the e4od for a zf5 my rear was quite a few inches too short.
3) you will need to go to the junkyard and get a pedal assembly for a manual f150 for your year of bronco. in my 96 I needed one from a 92-96 bronco.
4)I am not sure what ujoints your current driveshafts run but they make conversion joints so I wouldn't be worried.
mantooth is offline
post #3 of 20 (permalink) Old 02-18-2013, 04:03 PM
Fullsize Member

Join Date: Oct 2012
Location: Benton LA near Shreveport
Posts: 191
Bronco Info: 1974 Bronco with 351w, 1978 F150 4x4 with 1966 F100 cab
ZF

My buddy did this on his 78 Bronco with a 460. Used a BW 1345 transfer case, custom driveshafts, body lift to clear the ZF, modified the stock crossmember. I have a few pictures. If I go back by there I will take pictures of the crossmember.
Attached Thumbnails
Click image for larger version

Name:	SANY2514.JPG
Views:	1208
Size:	148.6 KB
ID:	22868   Click image for larger version

Name:	SANY2515.JPG
Views:	1178
Size:	156.2 KB
ID:	22869   Click image for larger version

Name:	SANY2516.JPG
Views:	1235
Size:	171.5 KB
ID:	22870
bluebolt is offline
post #4 of 20 (permalink) Old 02-18-2013, 05:00 PM Thread Starter
Banned

Join Date: Feb 2013
Location: Swamps of Georgia
Posts: 343
Thank you! Give me some pictures of clutch linkages! I dont know about a body lift...ugh..
TheBlackDevil is offline
post #5 of 20 (permalink) Old 02-18-2013, 05:28 PM
Registered User

mantooth's Avatar

Join Date: Feb 2012
Location: marquette Mi
Posts: 87
Bronco Info: 1996 351w np435 swap, long arm sas, shackle flip 9" swap, 36" TSL Super Swampers grooved
You will have to either do a body lift or hack up the trans tunnel cover from what ive seen
mantooth is offline
post #6 of 20 (permalink) Old 02-18-2013, 06:23 PM
AKA: Butthead

Alvin in AZ's Avatar

Join Date: Apr 2009
Location: Gadsden Purchase
Posts: 2,880
Bronco Info: '91 RoadQueen 351w-2wd-ZF camtiming+4* 265/75-16E's dual Ranchos F&R, SuperCab bench seat EEC=F250
Sam's got the right idea! :) (post #7)

Quote:
Originally Posted by mantooth View Post
You will have to either do a body lift or hack up the trans tunnel cover from what ive seen
Really? :/
You can't cut it nice?
You really have to hack it up? ;)

The ZF might be tall but its gearshift lever is a dinky little shit...
(T18 middle, ZF bottom)

...so if you do a body lift (ick) you'll be bent over ev'rytime you shift and wreck. ;)


Or you could hack-up ;) the original ZF lever and add some length to it...


^19/32" drill bit ~= 15mm

It'd be better to weld up one, I had the '75 C700 lever and wanted to use it is all. xD

Alvin in AZ
Alvin in AZ is offline
post #7 of 20 (permalink) Old 02-18-2013, 07:01 PM
Registered User

Join Date: Apr 2006
Location: Armstrong, BC Canada
Posts: 208
Bronco Info: 1978
the shift lever is shorter but the tower is quite a bit taller.
when i did mine i cut off the stock ZF shifter and welded on a 4spd shifter so i could put it right where i wanted it.
i also built my own crossmembers and used the NP205.

1978 ford bronco
Cummins powered!!!
one tonned
Sam Burton is offline
post #8 of 20 (permalink) Old 02-19-2013, 12:02 AM Thread Starter
Banned

Join Date: Feb 2013
Location: Swamps of Georgia
Posts: 343
Well what I thought was a BW1356 case that the guy I got the Bronco from gave me, is actually a NP208 aluminium transfer case.
TheBlackDevil is offline
post #9 of 20 (permalink) Old 02-19-2013, 03:28 AM
Registered User

mantooth's Avatar

Join Date: Feb 2012
Location: marquette Mi
Posts: 87
Bronco Info: 1996 351w np435 swap, long arm sas, shackle flip 9" swap, 36" TSL Super Swampers grooved
Quote:
Originally Posted by Alvin in AZ View Post
Really? :/
You can't cut it nice?
You really have to hack it up?
Nope hacking is honestly the only option.
Trust me, I have done 1 zf5 swap so im obviously an expert.
mantooth is offline
post #10 of 20 (permalink) Old 02-19-2013, 10:39 AM Thread Starter
Banned

Join Date: Feb 2013
Location: Swamps of Georgia
Posts: 343
On a 1996 Bronco but not on a 78-79 Bronco.
TheBlackDevil is offline
post #11 of 20 (permalink) Old 02-19-2013, 05:02 PM
AKA: Butthead

Alvin in AZ's Avatar

Join Date: Apr 2009
Location: Gadsden Purchase
Posts: 2,880
Bronco Info: '91 RoadQueen 351w-2wd-ZF camtiming+4* 265/75-16E's dual Ranchos F&R, SuperCab bench seat EEC=F250
Quote:
Originally Posted by mantooth View Post
Nope hacking is honestly the only option.
Trust me, I have done 1 zf5 swap so im obviously an expert.
LOL :)
Same here but mine was a super-simple 2wd ZF swap. :/
So what sort of -armchair- expert does that make me? :)
Quote:
"On a 1996 Bronco but not on a 78-79 Bronco." -TheBlackDevil
I too lost track of that point, TBD. :)

I questioned the "need" for a body lift for Expedition and other
"new stuff" ZF swaps on FTE and F150Forum. Just unconvincing
words came back, no pictures. ;)

Maybe the "need" they're so-sure of has mostly to do with their
carpet not laying flat-like-stock anymore? LOL :)

Seems like one guy said the dash is in the way and the shift lever
needs to be bent? Take a look at that crooked dangged T18 Ford
factory lever. ;) Form follows function on shift lever shape, IMO.
The first bend is about 60 degrees and the second bend is about
45 degrees and the little bend at the top is about 30 degrees.
{yeah, I need a better picture to show those bends}

Alvin in AZ
ps-This picture shows the extension I made on the lathe at work
back in '79... (since then I'd like to double that, YMMV?)
Alvin in AZ is offline
post #12 of 20 (permalink) Old 02-19-2013, 07:15 PM Thread Starter
Banned

Join Date: Feb 2013
Location: Swamps of Georgia
Posts: 343
Could I use the late 80s-mid 90s clutch assembly?


I have a 70s Ford clutch assembly but was going to use it on my NP435 swap in my 79 F150.
TheBlackDevil is offline
post #13 of 20 (permalink) Old 02-19-2013, 08:39 PM
press ALT+F4

78bronco460's Avatar

Join Date: Mar 2003
Location: PDX vicinity
Posts: 4,417
Bronco Info: '78 Bronco with motor, axles and stuff
The ZF input shaft is larger than the NP435... I used a LuK gold clutch set when I did the swap. I will see if I can get some pics of the mods I did to the pedal to install the hyd clutch in the firewall.

78bronco460 is offline
post #14 of 20 (permalink) Old 02-19-2013, 08:42 PM Thread Starter
Banned

Join Date: Feb 2013
Location: Swamps of Georgia
Posts: 343
Thanks man.

I guess I will find a clutch assembly from a late 80s-mid 90s truck with a manual in it.
TheBlackDevil is offline
post #15 of 20 (permalink) Old 02-21-2013, 10:41 PM
AKA: Butthead

Alvin in AZ's Avatar

Join Date: Apr 2009
Location: Gadsden Purchase
Posts: 2,880
Bronco Info: '91 RoadQueen 351w-2wd-ZF camtiming+4* 265/75-16E's dual Ranchos F&R, SuperCab bench seat EEC=F250
Quote:
Originally Posted by 78bronco460 View Post
The ZF input shaft is larger than the NP435...
Are you sure 'bout that? ;)

1+1/16" diameter with ten splines and 17mm pilot snout.
Right or wrong?

Anyway, that's what my 1/2 ton and 3/4 ton stuff had.

Seems like there's some 1+1/4" stuff for diesels or something?

Quote:
I will see if I can get some pics of the mods I did to the pedal
to install the hyd clutch in the firewall.
That'd be cool. :)

Alvin in AZ
Alvin in AZ is offline
post #16 of 20 (permalink) Old 02-21-2013, 10:42 PM Thread Starter
Banned

Join Date: Feb 2013
Location: Swamps of Georgia
Posts: 343
I wonder if I can use an earlier flywheel for a EFI 460 on my 78-79 460..?

I'm so ready to do this swap since gas is going up.
TheBlackDevil is offline
post #17 of 20 (permalink) Old 02-26-2013, 06:26 PM Thread Starter
Banned

Join Date: Feb 2013
Location: Swamps of Georgia
Posts: 343
We no one is replying on my build thread so i wl post this here since this forum here is getting more views.

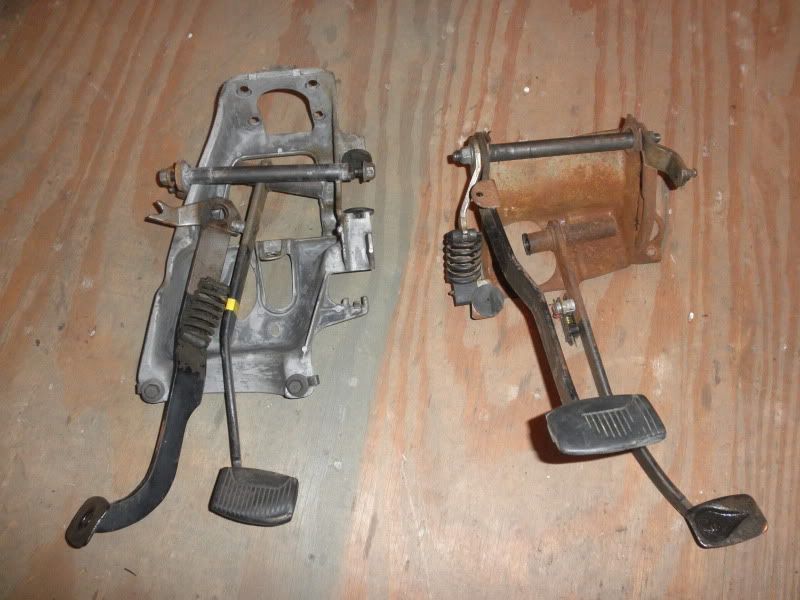

Which of these two clutch pedal assemblies would be best to put in my 79 with the hydraulic set up.


The 79 clutch assembly uses a z bar so that is out of the equation.
TheBlackDevil is offline
post #18 of 20 (permalink) Old 02-26-2013, 08:35 PM
press ALT+F4

78bronco460's Avatar

Join Date: Mar 2003
Location: PDX vicinity
Posts: 4,417
Bronco Info: '78 Bronco with motor, axles and stuff
Quote:
Originally Posted by TheBlackDevil View Post
I wonder if I can use an earlier flywheel for a EFI 460 on my 78-79 460..?

I'm so ready to do this swap since gas is going up.
You need a D8TE flywheel because of the externally balanced crank and the bigger clutch.

Quote:
Originally Posted by TheBlackDevil View Post
We no one is replying on my build thread so i wl post this here since this forum here is getting more views.

Which of these two clutch pedal assemblies would be best to put in my 79 with the hydraulic set up.


The 79 clutch assembly uses a z bar so that is out of the equation.

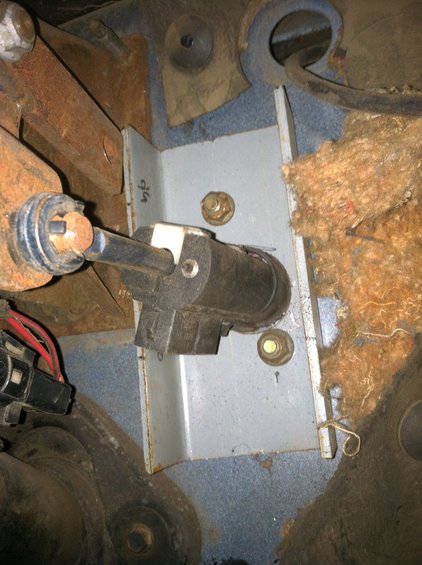

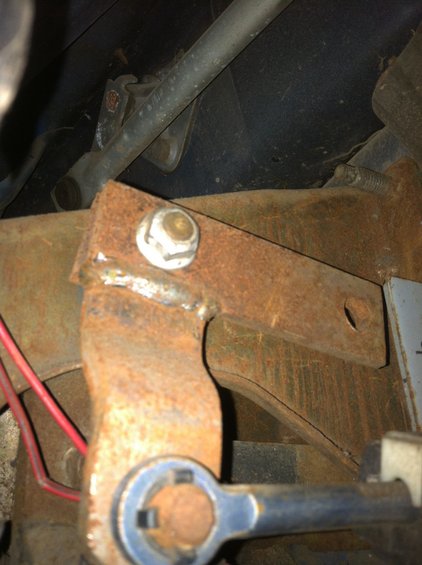

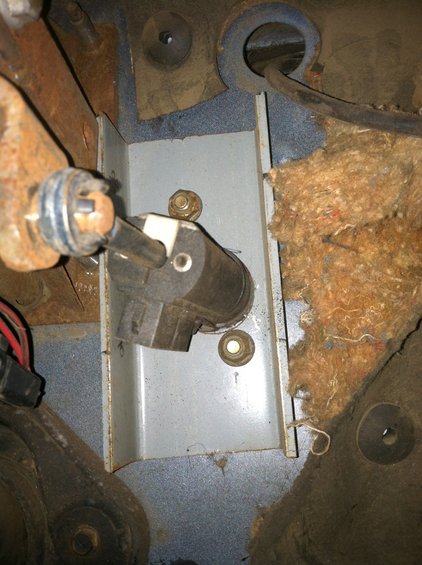

Use the 79 set and modify the bellcrank lever. You need to cut the bellcrank lever off the new style slutch pedal shaft and weld the tab to the bellcrank on the 79 pedal. Sorry I haven't posted a picture, I'll get on that right now and edit this post with the pictures.








78bronco460 is offline
post #19 of 20 (permalink) Old 02-26-2013, 08:42 PM Thread Starter
Banned

Join Date: Feb 2013
Location: Swamps of Georgia
Posts: 343
Thanks dude. I was planning to buy one of these clutch assemblys. No use to buy them then eh?

I have a DIVE block. So it's internally balanced. I will get the external and have it zero balanced, I guess.
TheBlackDevil is offline
post #20 of 20 (permalink) Old 02-27-2013, 11:39 AM
AKA: Butthead

Alvin in AZ's Avatar

Join Date: Apr 2009
Location: Gadsden Purchase
Posts: 2,880
Bronco Info: '91 RoadQueen 351w-2wd-ZF camtiming+4* 265/75-16E's dual Ranchos F&R, SuperCab bench seat EEC=F250
Quote:
Originally Posted by TheBlackDevil View Post
Thanks dude.
x2. :)

Cool pictures and explanation of what's needed for the swap. :)

Alvin in AZ
