Originally Posted by Builder10 View Post
There's a true demand for these panels --- unfortunate that the thread has gone dry.

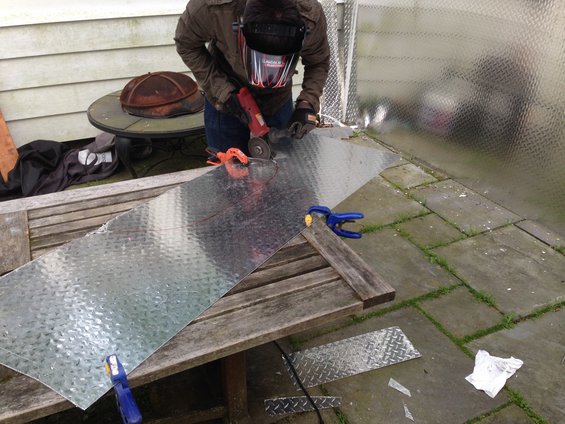

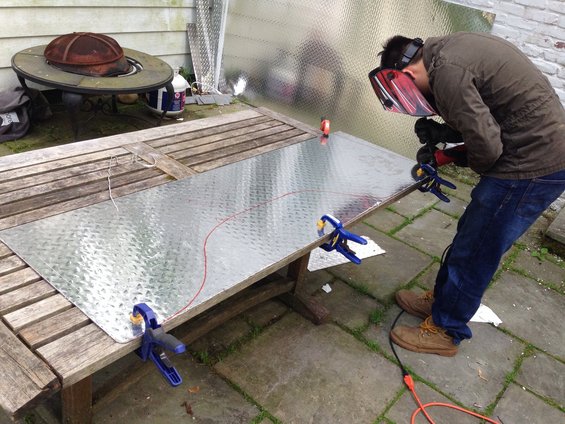

If this helps ?? My son and I cut diamond plate panels early this year, and I'm happy to measure them. You wont get the same detailed curves and specific measurements that Speedy did on post #51 page 3 of this thread. I'd guess mine will only be useful for makers of diamond plate panels where dimensions being a little off won't matter.

A standard-size sheet of diamond plate is 4ft x 8ft and costs between $80-120. A single sheet is enough for both rear trunk panels and extra for other projects.

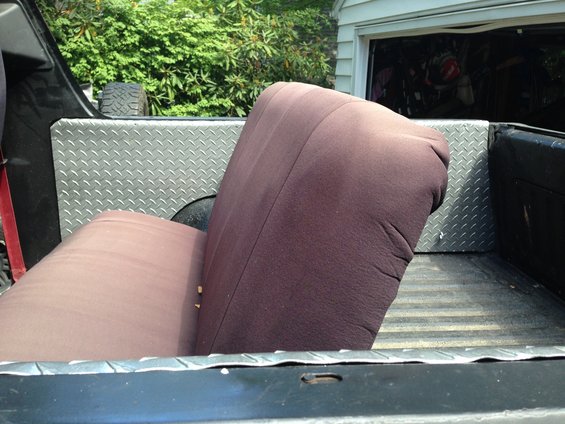

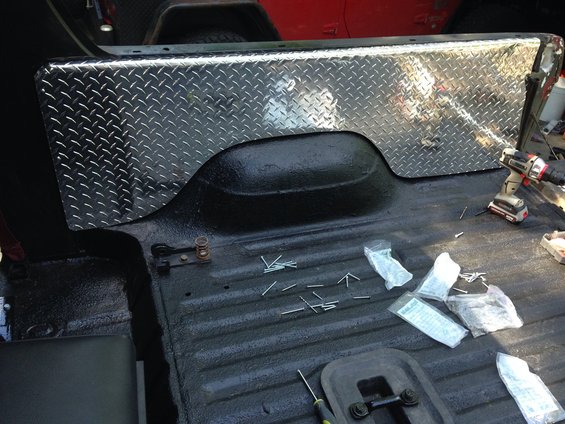

Still in diamond-plate chrome :

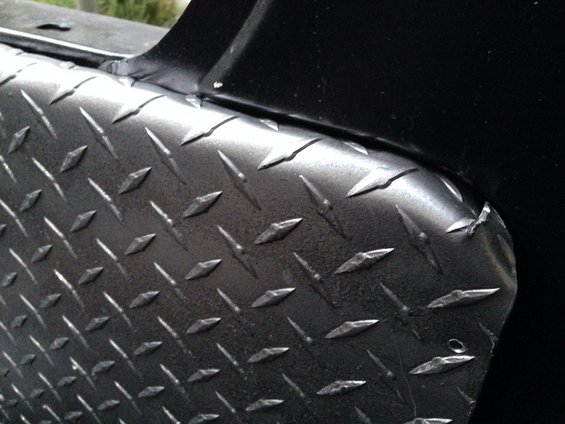

Sprayed gray and added tie-downs that anchor to the Bronco metal frame behind :

super clean. Nice
