Question Mysterious connector C212...

So I've been searching for a +12v source to use while the key is in both run AND start positions. This will be needed eventually when I install an EFI system. I've found it, but I have no idea what the wire was originally for. Now I'm curious.

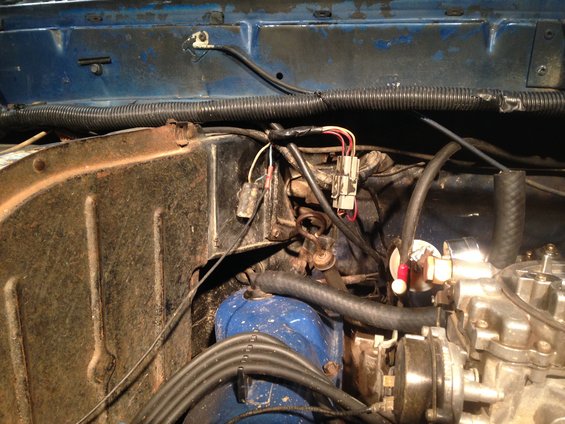

From my electrical manual, this appears to be connector C212 but I can't be sure because the whitish wire appears not to have a black stripe and the bluish wire is not mentioned anywhere I can find.

The PO of the bronco tapped into the bluish wire for the electric choke, and I verified that the wire has power both in RUN & START key positions while cranking.

Any thoughts?








1979 Bronco 400m 0.060 over 'Black Betty'
-Edelbrock Carb & Manifold, Hedman Headers, Flowmaster Dual Mufflers, Comp Cams Extreme Energy Cam & Valvetrain Kit
-Duff LAs, WH progressive coils, Bilstein 7100s Lincoln HB, York OBA, Taurus Radiator Fan
vrewald is offline
Sponsored Links
Advertisement

post #2 of 10 (permalink) Old 03-01-2017, 08:05 PM
Registered User

kochic's Avatar

Join Date: Jan 2011
Location: st-jean-de-matha, quebec
Posts: 348
Bronco Info: 1979 bronco,351m C6 np 205,4inch lift, 33 bfg
iTrader: (1)
c-212 connector
blue wire circuit 932 ing. switch to throttle solenoid , from fuse f-5 17.5 amp emission solenoid

white/black wire circuit 4 alternator reg ''S''term. to alternator ''S''term. this wire goes to the electric choke connector c-207

Hope that help.
Marc
vrewald likes this.
kochic is offline
post #3 of 10 (permalink) Old 03-02-2017, 04:13 PM Thread Starter
Registered User

vrewald's Avatar

Join Date: Jan 2015
Location: Central Iowa
Posts: 285
Bronco Info: 1979 Bronco 400m
iTrader: (0)
Thanks a lot for the input!

Couple questions...

Where were you able to find this information? I'd like to know where to look next time...

What exactly is "circuit 932 ing. switch to throttle solenoid"? What's 932? Did you mean "ignition"? What exactly was/is a throttle solenoid on these vehicles? I'm running an aftermarket carb so it must not apply to me...

Is the emission solenoid different than the throttle solenoid?

If you had a diagram for me it would be super helpful.

1979 Bronco 400m 0.060 over 'Black Betty'
-Edelbrock Carb & Manifold, Hedman Headers, Flowmaster Dual Mufflers, Comp Cams Extreme Energy Cam & Valvetrain Kit
-Duff LAs, WH progressive coils, Bilstein 7100s Lincoln HB, York OBA, Taurus Radiator Fan
vrewald is offline

post #4 of 10 (permalink) Old 03-02-2017, 04:50 PM
Registered User

kochic's Avatar

Join Date: Jan 2011
Location: st-jean-de-matha, quebec
Posts: 348
Bronco Info: 1979 bronco,351m C6 np 205,4inch lift, 33 bfg
iTrader: (1)

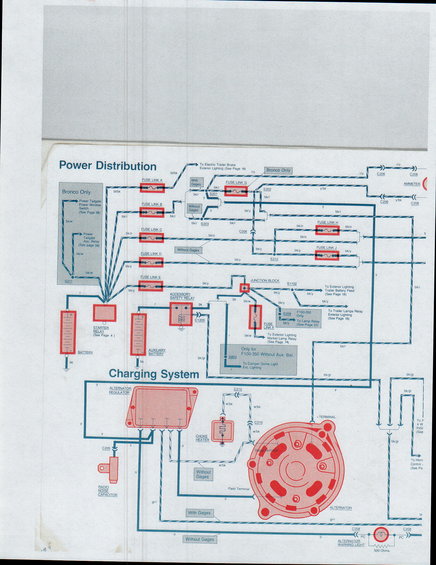

I have Ford wiring diagrams for 1978 and 1979 bronco and 1978 trucks.
The wire are numbered in Ford wiring diagrams, in the wire chart you have the circuit number, the description and the color of the wire
ex: wire 54
circuit, description, color,
54, fuse panel to courtesy lamp switch, green-yellow stripe,

Look at the first post,
79 wiring schematics

Its very easy to find a wire or a problem.The chart have circuit from 1 to 998.
Ignition is a wire with live 12v on the ign position on the ignition switch.

I dont have a scaner but i can probably make some photocopy at work but not on the same sheet size.Ford wiring sheet are 12.5''x25''.

Marc
kochic is offline
post #5 of 10 (permalink) Old 03-02-2017, 04:56 PM Thread Starter
Registered User

vrewald's Avatar

Join Date: Jan 2015
Location: Central Iowa
Posts: 285
Bronco Info: 1979 Bronco 400m
iTrader: (0)
Holy moly that's awesome.

This must be different than the factory service manual then?

Do you ever see any of those wiring diagrams come up in Ebay or anything anymore?

1979 Bronco 400m 0.060 over 'Black Betty'
-Edelbrock Carb & Manifold, Hedman Headers, Flowmaster Dual Mufflers, Comp Cams Extreme Energy Cam & Valvetrain Kit
-Duff LAs, WH progressive coils, Bilstein 7100s Lincoln HB, York OBA, Taurus Radiator Fan
vrewald is offline
post #6 of 10 (permalink) Old 03-02-2017, 05:29 PM
Registered User

kochic's Avatar

Join Date: Jan 2011
Location: st-jean-de-matha, quebec
Posts: 348
Bronco Info: 1979 bronco,351m C6 np 205,4inch lift, 33 bfg
iTrader: (1)
Both were bought on ebay,
I misread the 1979 listing, i just received the bronco section instead of the full book and paid 29$ for just 9 pages.
The 1978 book was 25$, almost a steal.
This is the factory wiring diagrams ford dealers used.
Marc
1979 FORD TRUCK BRONCO F-150 F-250 F-350 ECONOLINE ETC WIRING DIAGRAMS MANUAL | eBay

http://www.ebay.com/itm/1979-FORD-TR...5Yq2gO&vxp=mtr
Csnyder and vrewald like this.
kochic is offline
post #7 of 10 (permalink) Old 03-03-2017, 03:54 PM Thread Starter
Registered User

vrewald's Avatar

Join Date: Jan 2015
Location: Central Iowa
Posts: 285
Bronco Info: 1979 Bronco 400m
iTrader: (0)
That wiring book in the 2nd link you listed seems like a steal!

Might have to try and get that...
huck2080 likes this.

1979 Bronco 400m 0.060 over 'Black Betty'
-Edelbrock Carb & Manifold, Hedman Headers, Flowmaster Dual Mufflers, Comp Cams Extreme Energy Cam & Valvetrain Kit
-Duff LAs, WH progressive coils, Bilstein 7100s Lincoln HB, York OBA, Taurus Radiator Fan
vrewald is offline
post #8 of 10 (permalink) Old 03-03-2017, 05:50 PM
Registered User

kochic's Avatar

Join Date: Jan 2011
Location: st-jean-de-matha, quebec
Posts: 348
Bronco Info: 1979 bronco,351m C6 np 205,4inch lift, 33 bfg
iTrader: (1)
If you plan to keep the bronco it's well worth it.
Marc
huck2080 and vrewald like this.
kochic is offline
post #9 of 10 (permalink) Old 03-04-2017, 09:41 AM
Registered User

Marty in Md's Avatar

Join Date: Jun 2008
Location: Laurel, Md
Posts: 30
Bronco Info: 1993 XLT, 302, 1979 Ranger XLT,351M
iTrader: (0)
In the description it says the bronco section is torn. Would like to know how bad before buying it. That's mainly what I would want
vrewald likes this.

Marty in Md is offline
post #10 of 10 (permalink) Old 03-04-2017, 11:01 AM Thread Starter
Registered User

vrewald's Avatar

Join Date: Jan 2015
Location: Central Iowa
Posts: 285
Bronco Info: 1979 Bronco 400m
iTrader: (0)
Quote:
Originally Posted by Marty in Md View Post
In the description it says the bronco section is torn. Would like to know how bad before buying it. That's mainly what I would want
I actually saw that and had the same question; I emailed the seller last night asking for pictures of the torn sections so I know how bad/what's missing. If he gets back to me I will share.

1979 Bronco 400m 0.060 over 'Black Betty'
-Edelbrock Carb & Manifold, Hedman Headers, Flowmaster Dual Mufflers, Comp Cams Extreme Energy Cam & Valvetrain Kit
-Duff LAs, WH progressive coils, Bilstein 7100s Lincoln HB, York OBA, Taurus Radiator Fan
vrewald is offline
