roll cage

im looking for a winter project. i think building a roll cage would be a good one. i was hoping you guys could show pics of the ones you built to help me out with ideas
foxworthydan1102 is offline   Reply With Quote
Sponsored Links
Advertisement

Old 10-26-2012, 07:25 PM   #2
Tullio
RAAAAAH!

Tullio's Avatar

Join Date: Mar 2007
Location: Simi Valley, CA
Posts: 936
iTrader: (0)
Bronco Info: '90 FSB, SAS'ed, locked, geared, caged, gutted, built and filthy














__________________

302 roller, GT40 heads, E-fan, off-road cam, headers, 35x14.5 Pitbull Bias Rockers, 10" aluminum wheels, 4.56 gears, rear Detroit Locker, front Truetrac, built AOD, Kodiak auto steps, custom exhaust, full 2" DOM cage, PRP reclining suspension seats and harness, D44 SAS, 1.5" DOM/heim steering, Deaver coils, Bilstein 7100 14", F350 brakes
Tullio is offline   Reply With Quote
Old 10-26-2012, 09:30 PM   #3
foxworthydan1102
Registered User

foxworthydan1102's Avatar

Join Date: Feb 2012
Location: downriver, mi
Posts: 40
iTrader: (0)
Bronco Info: 92 xlt 351w, custom tube bumpers, 32" ground hawgs
thats an awesome design. i like how you incorporated the seat mounts into it
foxworthydan1102 is offline   Reply With Quote
Old 10-26-2012, 09:34 PM   #4
BadassEddie
Registered User

BadassEddie's Avatar

Join Date: Jun 2008
Location: Richmond/Blacksburg, Va
Posts: 106
iTrader: (0)
Bronco Info: 1993 Bronco
Tullio, did you have any issues with gun access and being able to fully finish weld all the joints? Did you build entirely inside the cab?
__________________
Ram it down Mr. Halford
BadassEddie is offline   Reply With Quote
Old 10-29-2012, 03:48 PM   #5
Tullio
RAAAAAH!

Tullio's Avatar

Join Date: Mar 2007
Location: Simi Valley, CA
Posts: 936
iTrader: (0)
Bronco Info: '90 FSB, SAS'ed, locked, geared, caged, gutted, built and filthy

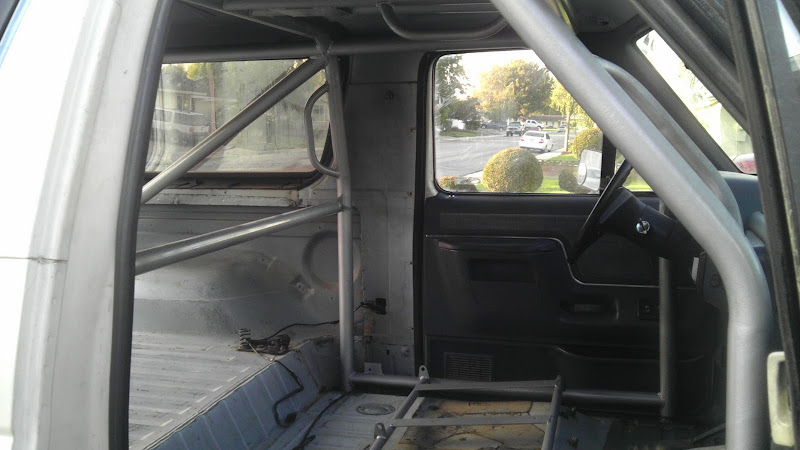

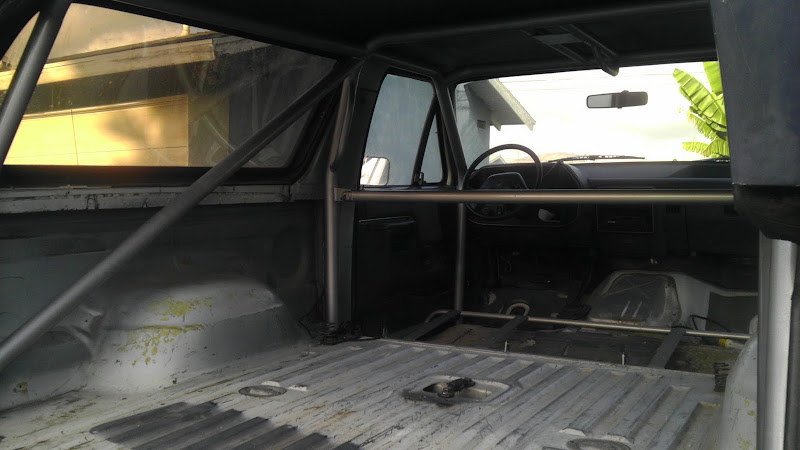

It's hard to tell but the main hoop is slightly behind the metal roof, so with the fiberglass top taken off, you have all the access you need.

The pieces in the cab were welded while tipped down and then put upright and welded to the main hoop.

Hope this answers you questions.
__________________

302 roller, GT40 heads, E-fan, off-road cam, headers, 35x14.5 Pitbull Bias Rockers, 10" aluminum wheels, 4.56 gears, rear Detroit Locker, front Truetrac, built AOD, Kodiak auto steps, custom exhaust, full 2" DOM cage, PRP reclining suspension seats and harness, D44 SAS, 1.5" DOM/heim steering, Deaver coils, Bilstein 7100 14", F350 brakes
Tullio is offline   Reply With Quote
Old 10-29-2012, 05:55 PM   #6
thin blue line
Fullsize Member

Join Date: Dec 2009
Location: Virginia Beach
Posts: 3,834
iTrader: (3)
Bronco Info: 95 XLT 302 E40D 5.5 devers 3"body lift 35" MTR's Warn locking hubs custom rock sliders.
thats a bad ass designed cage. are you welded to the frame? wish i had your skills
__________________
remember its your ride build it your way not there way.
but build it dont buy it
thin blue line is offline   Reply With Quote
Old 10-29-2012, 08:09 PM   #7
MudRider
Registered User

MudRider's Avatar

Join Date: Sep 2011
Location: Northern Michigan
Posts: 217
iTrader: (0)
Bronco Info: 96 XL 302-K&N-3" magnaflow exhaust no cats-33s-locker front+rear-4.10s-E40D-custom bumper-SOFTTOPPER
i might do this as well over the winter, looks awesome
__________________

This mall crawl session was brought to you by a pair of Aussie Lockers.
Ferris State University Automotive Engineering Technology student.
MudRider is offline   Reply With Quote
Old 10-29-2012, 08:53 PM   #8
lifeizhard102205
Fullsize Member

lifeizhard102205's Avatar

Join Date: Dec 2006
Location: Co Springs, CO FINALLY!!!! Woohoo!!
Posts: 1,881
iTrader: (2)
Bronco Info: 1993 EB 351W, SAS'd 44, 37" Hummvee tires, 10.25 rear, smittybilt 12k winch homemade mount
post number 8 for roll cages otherwise this is full of cool things to do
lifeizhard102205 is offline   Reply With Quote
Old 10-29-2012, 09:18 PM   #9
Tullio
RAAAAAH!

Tullio's Avatar

Join Date: Mar 2007
Location: Simi Valley, CA
Posts: 936
iTrader: (0)
Bronco Info: '90 FSB, SAS'ed, locked, geared, caged, gutted, built and filthy
Quote:
Originally Posted by foxworthydan1102 View Post
thats an awesome design. i like how you incorporated the seat mounts into it
Thanks! That, in my opinion, is a must. If the cage is secure and the seats are bolted to the floor. What happens if the seats fatigue the floor over years of off-road abuse and become detached? Maybe it will never happen. It makes sense to me to have the seats be a part of the cage. That way, even if the cage becomes detached entirely from the body, you will remain suspended inside.

Quote:
Originally Posted by thin blue line View Post
thats a bad ass designed cage. are you welded to the frame? wish i had your skills
I am welded to the floor in 8 spots with huge, thick plates. However, I do not have welding skills myself enough to build a cage.

I came up with the specs and design and then had a shop build it for me.

I did my best to eliminate un-needed bends or curves so it would be as strong as possible. Extra bends to make it look nice and go around air vents and such just weaken the overall structure. Also, I had mine built with full 2" DOM and 3/8" thick connections to the body.

Quote:
Originally Posted by MudRider View Post
i might do this as well over the winter, looks awesome
Thanks, I appreciate it.
__________________

302 roller, GT40 heads, E-fan, off-road cam, headers, 35x14.5 Pitbull Bias Rockers, 10" aluminum wheels, 4.56 gears, rear Detroit Locker, front Truetrac, built AOD, Kodiak auto steps, custom exhaust, full 2" DOM cage, PRP reclining suspension seats and harness, D44 SAS, 1.5" DOM/heim steering, Deaver coils, Bilstein 7100 14", F350 brakes
Tullio is offline   Reply With Quote
Old 11-24-2012, 09:44 AM   #10
Tullio
RAAAAAH!

Tullio's Avatar

Join Date: Mar 2007
Location: Simi Valley, CA
Posts: 936
iTrader: (0)
Bronco Info: '90 FSB, SAS'ed, locked, geared, caged, gutted, built and filthy
Quote:
Originally Posted by danwheeler660 View Post
awsome cage.You have great skill.I wish I had the tools to make one like that.
Well, not exacctly.
Quote:
Originally Posted by Tullio View Post
I do not have welding skills myself enough to build a cage.

I came up with the specs and design and then had a shop build it for me.
__________________

302 roller, GT40 heads, E-fan, off-road cam, headers, 35x14.5 Pitbull Bias Rockers, 10" aluminum wheels, 4.56 gears, rear Detroit Locker, front Truetrac, built AOD, Kodiak auto steps, custom exhaust, full 2" DOM cage, PRP reclining suspension seats and harness, D44 SAS, 1.5" DOM/heim steering, Deaver coils, Bilstein 7100 14", F350 brakes
Tullio is offline   Reply With Quote
Old 11-24-2012, 01:21 PM   #11
LarryP
Thanks 351w500

LarryP's Avatar

Join Date: Mar 2005
Location: Northcentral,CA.Twain Harte, up here in the mountains
Posts: 5,456
iTrader: (52)
Bronco Info: 88 Centerion 460 Dana 60/10.25 78 Bronk Cromo shafts,Detoit 4.56's lift 7" Deavers 38's 9"rear disk
That guy is just post padding and replying to everything Tullio
__________________

I take Prayer Requests. God Bless
LarryP is online now   Reply With Quote
Old 11-25-2012, 12:10 AM   #12
BigBlue&Goldie
Registered User

Join Date: Oct 2009
Location: Gilbert, AZ
Posts: 177
iTrader: (1)
Bronco Info: 1993 XLT, 5.8L, E40D, Stock......for now!
You mind sharing what shop did the fab work?
BigBlue&Goldie is offline   Reply With Quote
Old 11-25-2012, 01:37 AM   #13
Tullio
RAAAAAH!

Tullio's Avatar

Join Date: Mar 2007
Location: Simi Valley, CA
Posts: 936
iTrader: (0)
Bronco Info: '90 FSB, SAS'ed, locked, geared, caged, gutted, built and filthy
Quote:
Originally Posted by BigBlue&Goldie View Post
You mind sharing what shop did the fab work?
4Play Motorsports in Simi Valley
__________________

302 roller, GT40 heads, E-fan, off-road cam, headers, 35x14.5 Pitbull Bias Rockers, 10" aluminum wheels, 4.56 gears, rear Detroit Locker, front Truetrac, built AOD, Kodiak auto steps, custom exhaust, full 2" DOM cage, PRP reclining suspension seats and harness, D44 SAS, 1.5" DOM/heim steering, Deaver coils, Bilstein 7100 14", F350 brakes
Tullio is offline   Reply With Quote
Old 12-01-2012, 03:03 PM   #14
NavyBronco23
Fullsize Member

NavyBronco23's Avatar

Join Date: Mar 2012
Location: Milton, FL
Posts: 261
iTrader: (0)
Bronco Info: 94' Bronco w/ 351W, Sky Shackle Flip, OD Green, Protofab Roll Cage, Expedition Center Console, etc.
Bronco Graveyard Cage

Awesome cage. Lack of skill and tools led me to purchase one from Bronco Graveyard recently. Drove up to ProtoFab to pick it up and I am over all extremely happy with the end result.
__________________


God Bless America.


Quote:
Originally Posted by c-dub View Post
its not repair its restoration
NavyBronco23 is offline   Reply With Quote
Old 12-10-2012, 12:04 AM   #15
foxworthydan1102
Registered User

foxworthydan1102's Avatar

Join Date: Feb 2012
Location: downriver, mi
Posts: 40
iTrader: (0)
Bronco Info: 92 xlt 351w, custom tube bumpers, 32" ground hawgs
ok so i decided to do my roll cage out of 2 x 2 x 1/8 square tubing. I'm getting ready to order it but im curious on how much i need. im thinking 4-20' sticks will do the job... should i get more
foxworthydan1102 is offline   Reply With Quote
Old 12-10-2012, 12:10 AM   #16
Billy89EB
Registered User

Billy89EB's Avatar

Join Date: Jun 2012
Location: Riverside,CA
Posts: 562
iTrader: (0)
Bronco Info: 1987 Eddie Bauer 302, 4" rancho lift, dual magnalfows, 35" Discoverer stt's
Never seen one out of square tubing.
Billy89EB is offline   Reply With Quote
Old 12-10-2012, 12:27 AM   #17
LarryP
Thanks 351w500

LarryP's Avatar

Join Date: Mar 2005
Location: Northcentral,CA.Twain Harte, up here in the mountains
Posts: 5,456
iTrader: (52)
Bronco Info: 88 Centerion 460 Dana 60/10.25 78 Bronk Cromo shafts,Detoit 4.56's lift 7" Deavers 38's 9"rear disk
Quote:
Originally Posted by foxworthydan1102 View Post
ok so i decided to do my roll cage out of 2 x 2 x 1/8 square tubing. I'm getting ready to order it but im curious on how much i need. im thinking 4-20' sticks will do the job... should i get more
Please Do Not Post pics when you are done. I dont want some kid coming on here seeing your squire tube cage and thinking he can build that and it will save his life.
__________________

I take Prayer Requests. God Bless
LarryP is online now   Reply With Quote
Old 12-10-2012, 12:29 AM   #18
foxworthydan1102
Registered User

foxworthydan1102's Avatar

Join Date: Feb 2012
Location: downriver, mi
Posts: 40
iTrader: (0)
Bronco Info: 92 xlt 351w, custom tube bumpers, 32" ground hawgs
its slightly stronger, easier to cut, weld, and add gussets. plus like you said never seen one out of square tubing.. its different
foxworthydan1102 is offline   Reply With Quote
Old 12-10-2012, 12:46 AM   #19
Alvin in AZ
AKA: Butthead

Alvin in AZ's Avatar

Join Date: Apr 2009
Location: Gadsden Purchase
Posts: 2,880
iTrader: (0)
Bronco Info: '91 RoadQueen 351w-2wd-ZF camtiming+4* 265/75-16E's dual Ranchos F&R, SuperCab bench seat EEC=F250
Quote:
Originally Posted by LarryP View Post
Please Do Not Post pics when you are done. I dont want some kid coming
on here seeing your squire tube cage and thinking he can build that and it
will save his life.
"In contemporary American usage as well, squire is the title given to
Justice of the peace or similar local dignitaries."

Yeah for sure, those guys wouldn't help you out in a roll over, they'd
prob'ly just fine you -for- rolling over. :/ And another fine for littering
broken glass and body parts. :/

But, Larry, you saying his roll cage would be worse than -nothing-? ;)

Ok, enough of my stupid crap...

Dan, 1/8" seems awful dangged thin. :(
Convince me it's plenty strong, I'm all "ears". :)
First tho, are you talking about 4140 square tubing or what?

Alvin in AZ
Alvin in AZ is offline   Reply With Quote
Old 12-10-2012, 12:53 AM   #20
lifeizhard102205
Fullsize Member

lifeizhard102205's Avatar

Join Date: Dec 2006
Location: Co Springs, CO FINALLY!!!! Woohoo!!
Posts: 1,881
iTrader: (2)
Bronco Info: 1993 EB 351W, SAS'd 44, 37" Hummvee tires, 10.25 rear, smittybilt 12k winch homemade mount
square tubing is NOT stronger than round. a circle allows any force applied to it to be distributed AROUND the entire structure which is why things such as Airplanes, race level roll cages, your steering system, your entire driveline, are made in a circle. look at how the engine operates...in a rotation. a circle. any geometric figure that has a point (square, rectangle, triangle, etc) will concentrate any force applied to that point increasing the likelihood of failure. while i wont go as far as larry and say dont post it, i will tell you that in my opinion, you're making the wrong decision and anyone who cites your post as inspiration i'll tell the same thing to. but it's your rig, your life. do what you want.
lifeizhard102205 is offline   Reply With Quote
