E40D fluid and filter change

So several months ago I overheated the tranny(E40D) in my bronco and it puked fluid all over my yard. So it's been parked since then. With winter coming I need to get this thing back on the road. I pulled the pan, drained the converter, and blew out the cooler. I did find a bit of clutch material in the pan so I'm going to change the filter. I also would like to add a drain plug to the pan. I know others have done this, but I didn't find any descriptions or pictures of any when I searched. Does any one have any photos they would share of how you installed drain plugs? I think I know how I'm going to do it, but just want to see how others did it. I put up some pictures of the pan next week after I get it finished. Thanks!
Black92 is offline   Reply With Quote
Sponsored Links
Advertisement

Old 11-04-2012, 01:12 AM   #2
bulrid8
Registered User

Join Date: Feb 2012
Location: South Carolina
Posts: 176
iTrader: (0)
Bronco Info: 1990 4x4 351w
Buy plug kit and install where magnet sits. Should be a dimple there.
bulrid8 is offline   Reply With Quote
Old 11-04-2012, 04:07 PM   #3
kyleson
Registered User

kyleson's Avatar

Join Date: Feb 2012
Location: Portage Wisconsin
Posts: 279
iTrader: (0)
Bronco Info: 96 F150 4x4 Off-Road, 5.8, E4OD
Go to NAPA, they have universal pan drain plug kits for like 5 bucks. Its basically a hollow bolt you put in the pan with nylon washers inside and out, and a small drain plug that threads in. Drill a hole and tighten it up. Stupid simple.
__________________
96 F150 XLT Off Road RCLB, 5.8, E4OD, 3.55LS F/R, BDS leveling coils, 15x10 black steels with 33x12.50, Magnaflow y to 3 inch side exit w/ thrush welded, homemade MIL Eliminator, Six Liter Tune, BajaHID projectors, in-dash CB, 12" pioneer w/ 1000 watt amp.
kyleson is offline   Reply With Quote
Old 11-04-2012, 08:49 PM   #4
fdtdx18
Registered User

fdtdx18's Avatar

Join Date: Feb 2012
Location: edgemoor delaware
Posts: 206
iTrader: (0)
Bronco Info: 1993 custom 302, interco tsl's 33x12.5x15, rs5000's, summit shortys, 8.8 mini spool
my suggestion would be throw a tranny cooler on it too. mines overheated multiple times and i put one on. inlet line is warm and outlet is nice and cool.
fdtdx18 is offline   Reply With Quote
Old 11-04-2012, 09:01 PM   #5
351w500
Ok, Ill admit it's Vagish

351w500's Avatar

Join Date: Dec 2007
Location: Fairfield ca.
Posts: 10,126
iTrader: (4)
Bronco Info: '90 xlt 351w E40D Truetrac I GOT ROLLER ROCKERS !
fdtdx18 has a great idea there. I have done the same thing for the same reason and it doesnt get hot now-
351w500 is offline   Reply With Quote
Old 11-04-2012, 09:13 PM   #6
Ewgoetz
FSM Lifetime

Ewgoetz's Avatar

Join Date: Jan 2010
Location: Venice, FL
Posts: 3,864
iTrader: (1)
Bronco Info: 1996 EB Bronco 5.8, E4OD, BW1356 Transfercase, 6 inch BDS Lift w/Procomp Leafs, 200,010Miles
I picked up a oil drain plug that fit my oil drain and a tap with the same size and thread pitch, and a piece of 3/16 steel I had.
Drilled a hole in the steel and taped it.
Drilled a hole in the pan and welded the steel to the pan.


Ewgoetz is offline   Reply With Quote
Old 11-05-2012, 12:10 PM   #7
fdtdx18
Registered User

fdtdx18's Avatar

Join Date: Feb 2012
Location: edgemoor delaware
Posts: 206
iTrader: (0)
Bronco Info: 1993 custom 302, interco tsl's 33x12.5x15, rs5000's, summit shortys, 8.8 mini spool
looks good, wanna do mine now so i dont get soaked in fluid again?
fdtdx18 is offline   Reply With Quote
Old 11-05-2012, 07:16 PM   #8
Black92
Registered User

Black92's Avatar

Join Date: Sep 2011
Location: Kokomo, IN
Posts: 27
iTrader: (0)
Bronco Info: 1992 Ford Bronco XLT
I went with kind of the same idea as Ewgoetz. I just need to leak test it an put some paint on it now. Thanks everyone for the good replies.

http://http://instagr.am/p/RquCOqt1yc/

http://http://instagr.am/p/RquOKwt1yq/


Sent from my iPhone using Autoguide.com Free App
Black92 is offline   Reply With Quote
Old 11-05-2012, 07:21 PM   #9
Black92
Registered User

Black92's Avatar

Join Date: Sep 2011
Location: Kokomo, IN
Posts: 27
iTrader: (0)
Bronco Info: 1992 Ford Bronco XLT
Which line is the return line from the cooler? Is it the one towards the front or the rear? I'm guessing it's the rear.


Sent from my iPhone using Autoguide.com Free App
Black92 is offline   Reply With Quote
Old 11-05-2012, 11:22 PM   #10
GetBent4x4
Read the meme

Join Date: Jun 2010
Location: Collin county, TX
Posts: 3,530
iTrader: (1)
Bronco Info: Brick Nose on 15x10s/32s with leveling coils
that looks good. Nice weld. Also to throw it out there walmart has mercon for $11.68 a gallon. cheapest you can get it anywhere, unless you want to go with merconv.
GetBent4x4 is offline   Reply With Quote
Old 11-06-2012, 12:02 AM   #11
kentucky4x4
Registered User

kentucky4x4's Avatar

Join Date: Oct 2012
Posts: 179
iTrader: (0)
drain plug looks sweet!
kentucky4x4 is offline   Reply With Quote
Old 11-06-2012, 01:05 AM   #12
Black92
Registered User

Black92's Avatar

Join Date: Sep 2011
Location: Kokomo, IN
Posts: 27
iTrader: (0)
Bronco Info: 1992 Ford Bronco XLT

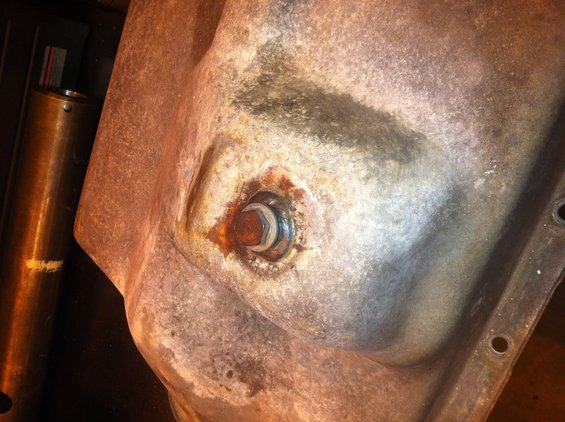

Not sure if the first pics showed up.

[/IMG]



Let me know if it works.


Sent from my iPhone using Autoguide.com Free App
Black92 is offline   Reply With Quote
Old 11-06-2012, 01:06 AM   #13
Black92
Registered User

Black92's Avatar

Join Date: Sep 2011
Location: Kokomo, IN
Posts: 27
iTrader: (0)
Bronco Info: 1992 Ford Bronco XLT
Never mind I see them. Leak testing today.


Sent from my iPhone using Autoguide.com Free App
Black92 is offline   Reply With Quote
Old 11-06-2012, 09:33 AM   #14
miesk5
Fullsize Member

miesk5's Avatar

Join Date: Oct 2003
Location: NJ
Posts: 12,743
iTrader: (2)
Bronco Info: 96 XL 5.0 E4OD, Man Xfer/Hubs
Quote:
Originally Posted by Black92 View Post
Which line is the return line from the cooler? Is it the one towards the front or the rear? I'm guessing it's the rear.


Sent from my iPhone using Autoguide.com Free App
yo B,
E4OD
Fitting Location; Thread Size; Flow Direction;
Front Pipe Cooler feed/out
Rear Pipe Return/in




Item Part Number Description
1 7A095 Transmission Fluid Cooler
2 8005 Radiator
3 7A031 Fluid Cooler Tube
4 7D273 Fluid Tube Connector
5 372223-S101 C-Clip
6 7N291 Transmission Fluid Cooler Line Clip
7 7A030 Fluid Cooler Inlet Tube
8 � Connector (Part of 7000)
9 7000 Automatic Transmission
10 376240-S Clamp
11 N809635-S165A Hose
12 7F113 Inlet Tube
13 7F112 Outlet Tube
A � Tighten to 23-31 Nm
(17-23 Lb-Ft)
B � Tighten to 3.1-4.3 Nm
(27.4-38.0 Lb-In)
C � Tighten to 10-14 Nm
(7-11 Lb-Ft)

see more Cooler Install LINKs in my site @ http://www.broncolinks.com/index.php?index=63
__________________
96 XL 5.0 E4OD, Man Xfer/Hubs
USN & DoD Planner (ret)
THANKS to ALL WHO SERVE!

my broncolinks.com was "disturbed"; but some sections are archived @ [url]http://web.archive.org/web/20121009110424/http://www.broncolinks.com/index.php
select a LINK, Right Click & Hit Properties; copy the second HTTP address; paste in a new browser window or Tab to see original page
miesk5 is offline   Reply With Quote
Old 11-06-2012, 12:46 PM   #15
Black92
Registered User

Black92's Avatar

Join Date: Sep 2011
Location: Kokomo, IN
Posts: 27
iTrader: (0)
Bronco Info: 1992 Ford Bronco XLT
Thank you!
That's some good information you have.
Black92 is offline   Reply With Quote
Old 11-07-2012, 02:22 PM   #16
Black92
Registered User

Black92's Avatar

Join Date: Sep 2011
Location: Kokomo, IN
Posts: 27
iTrader: (0)
Bronco Info: 1992 Ford Bronco XLT
Pan is leak free. I ordered a filter clip and I noticed there was an o-ring on the filter and up inside the transition. I guess whoever changed it last time didn't get the old one out. It also appeared that the filter was just laying in the pan. Do you guys recommend using the rubber gasket or a cork gasket? Does one tend to seal better than the other?


Sent from my iPhone using Autoguide.com Free App
Black92 is offline   Reply With Quote
Old 11-21-2012, 03:04 PM   #17
Black92
Registered User

Black92's Avatar

Join Date: Sep 2011
Location: Kokomo, IN
Posts: 27
iTrader: (0)
Bronco Info: 1992 Ford Bronco XLT
Got it back together. Everything worked great and is leak free. It sure was a pain to get it filled with one gallon jugs and a small funnel. Would have been better to have a 2ft. hose on the end of the funnel to fit inside the dipstick tube.


Sent from my iPhone using AutoGuide.com Free App
Black92 is offline   Reply With Quote
Old 11-21-2012, 07:34 PM   #18
garymunson
Registered User

Join Date: Sep 2012
Location: RENO NV
Posts: 140
iTrader: (0)
Bronco Info: 93 XLT, 5.8, E4OD, manual Xfer & hubs
Drain plug is a bad idea. The only way to correctly change E4OD fluid is flushing through the cooler line.
garymunson is offline   Reply With Quote
Old 11-21-2012, 07:54 PM   #19
bulrid8
Registered User

Join Date: Feb 2012
Location: South Carolina
Posts: 176
iTrader: (0)
Bronco Info: 1990 4x4 351w
So why did ford install drain plugs? Even they knew it was needed.
bulrid8 is offline   Reply With Quote
Old 11-22-2012, 12:44 AM   #20
danwheeler660
Registered User

danwheeler660's Avatar

Join Date: Mar 2011
Location: Fenton Mi
Posts: 143
iTrader: (0)
Bronco Info: 1996 Bronco xlt sport
when you over heated it did it leak from the converter area?Mine did that in july and I thought I just had a front bad seal.I have a 164000 on the trany and was just going to have mine rebulit this spring.or would that be a wast of money.It shifts great just had that leak when we were mooving our camper around after we got up north.
