Pinion nut

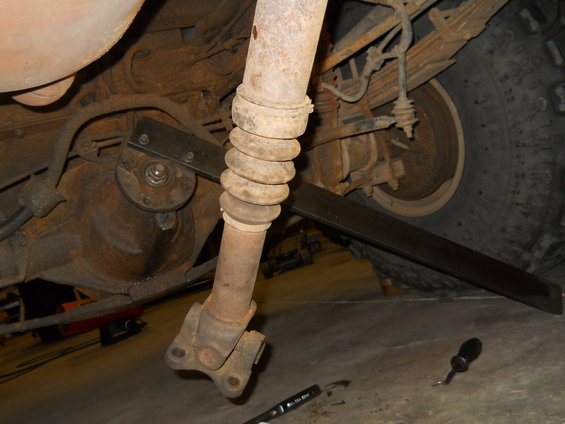

I took a look under my truck before a long trip. While checking the driveshaft for loose u-joints, I noticed the pinion nut had backed off a little.

The right way to deal with this is to replace the nut and crush sleeve. But you have to remove the carrier to torque the nut correctly. I wasn't really in for a two+ hour job, so I just tightened it. Not much tech here but I highly recumend making one of these. It's just 1/2" by 2 1/2" flat bar with a couple holes.



It was allot better and I made my trip with no problem. I will fix it right later. Now for the question. Does anyone know if the crush sleeve work hardens? Although I got it tighter, it never got all the play out of the pinion. I was really reefing on it with a long cheater. Seemed like it just stopped.
helirich is offline   Reply With Quote
Sponsored Links
Advertisement

Old 01-17-2013, 10:37 PM   #2
silent one
Fullsize Member

silent one's Avatar

Join Date: Dec 2004
Location: Northport,N.Y.
Posts: 5,831
iTrader: (15)
Bronco Info: 1995 sport,6''DC Stage II 37's streetlocks 4.56's ARB,BroncoAir rear bumper Hefty Fab front bumper
I have replace a lot of pinion seals and never had a problem, no reason to change the crush sleeve unless there is another problem. The pinion is supposed to have some play in it, that's the backlash between the pinion and ring gear.


Sent from my iPhone using AutoGuide.com App
__________________

A CAR CAN ONLY MOVE THE BODY,A BRONCO MOVES THE SOUL.
Silent One's Supermotors Page
January 2010 FOTM Winner
silent one is online now   Reply With Quote
Old 01-17-2013, 11:39 PM   #3
Steve83
Registered User

Steve83's Avatar

Join Date: Jul 2003
Location: Memphis, TN
Posts: 35,996
iTrader: (101)
Bronco Info: '83 VIN & title on '93 frame/body w/'95 4.9L & EB paint
Quote:
Originally Posted by helirich View Post
Does anyone know if the crush sleeve work hardens?
It doesn't. Work-hardening occurs within the elastic limit of certain materials. During work hardening, the unstressed shape doesn't change because the material springs back to its original shape when the stress is removed. Crushing goes beyond the elastic limit (by definition) into the plastic range. Plastic deformation destroys work hardening.
Quote:
Originally Posted by helirich View Post
I was really reefing on it with a long cheater.
How much torque? A new sleeve begins to crush somewhere above 200 lb-ft. An old one may crush slightly lower.

BTW
If your gears have worn enough to have some significant backlash, the pinion preload can be set with the carrier installed by only measuring the rotating torque within the backlash zone (no contact with the carrier/ring gear). OR, if the carrier & wheel bearings are well-worn, the effects of their drag will be minimal (by a factor of the gear ratio, plus a little for the gear teeth friction) on the pinion rotating torque.
__________________
Walk softly & carry a BIG SIX ! ! !

. .
Steve83 is offline   Reply With Quote
Old 01-18-2013, 12:17 AM   #4
helirich
Fullsize Member

helirich's Avatar

Join Date: Jul 2009
Location: Florida
Posts: 2,398
iTrader: (1)
Bronco Info: 90' 351/E40D 38" tires, 4.88 gears, full float 8.8, lockers F&R
Quote:
Originally Posted by silent one View Post
I have replace a lot of pinion seals and never had a problem, no reason to change the crush sleeve unless there is another problem. The pinion is supposed to have some play in it, that's the backlash between the pinion and ring gear.
This is not just twist play. It moves a little front and back.

Quote:
Originally Posted by Steve83 View Post
How much torque? A new sleeve begins to crush somewhere above 200 lb-ft.
I would think more than that. I didnt use my torque wrench. (I dont think it goes that high)


Quote:
Originally Posted by Steve83 View Post
BTW
If your gears have worn enough to have some significant backlash, the pinion preload can be set with the carrier installed by only measuring the rotating torque within the backlash zone (no contact with the carrier/ring gear). OR, if the carrier & wheel bearings are well-worn, the effects of their drag will be minimal (by a factor of the gear ratio, plus a little for the gear teeth friction) on the pinion rotating torque.
I guess that could work. When I set up the gears (about 10 years ago) I used a company torque wrench. My torque wrench doesnt go down to in/lbs. (for the preload, not the pinion nut) So i guess you could say My current tq wrench doesnt go high enough for the nut and doesnt go low enough for the preload. LOL
helirich is offline   Reply With Quote
Old 01-18-2013, 12:20 AM   #5
Steve83
Registered User

Steve83's Avatar

Join Date: Jul 2003
Location: Memphis, TN
Posts: 35,996
iTrader: (101)
Bronco Info: '83 VIN & title on '93 frame/body w/'95 4.9L & EB paint
No single torque wrench would. It takes a needle- or beam-style to check preload. Click & digital won't do it.
__________________
Walk softly & carry a BIG SIX ! ! !

. .
Steve83 is offline   Reply With Quote
Old 01-24-2013, 09:41 PM   #6
helirich
Fullsize Member

helirich's Avatar

Join Date: Jul 2009
Location: Florida
Posts: 2,398
iTrader: (1)
Bronco Info: 90' 351/E40D 38" tires, 4.88 gears, full float 8.8, lockers F&R
Quote:
Originally Posted by Steve83 View Post
If your gears have worn enough to have some significant backlash, the pinion preload can be set with the carrier installed by only measuring the rotating torque within the backlash zone (no contact with the carrier/ring gear). OR, if the carrier & wheel bearings are well-worn, the effects of their drag will be minimal (by a factor of the gear ratio, plus a little for the gear teeth friction) on the pinion rotating torque.
Do you suppose I could jack up the rear and see how much torque it takes to turn it with no preload. (for example 10 in/lb.) Then tighten the nut till the preload goes to 25 in/lbs. Giving a preload of 15 in/lbs.

What I'm saying is torque cumulitive?
helirich is offline   Reply With Quote
Old 01-24-2013, 11:06 PM   #7
Kingfish999
Nothing beets a Fullsize

Kingfish999's Avatar

Join Date: May 2010
Location: Palm Harbor FL
Posts: 4,651
iTrader: (18)
Bronco Info: 96 Bronco 5.8 DD, 88 Bronco motorless Mudder
if the pinion moves front and back then the bearing is bad. you really need to replace it and do the job right. doing it halfassed will jsut make it not reliable. my friend replaced his halfass and it blew up in less than a month
__________________

-----96 5.0 E4OD--------------88 5.8 C6--------------96 5.8 E4OD------
---------KIA-------------------Mud/Trail---------------Daily Driver------
Kingfish999 is offline   Reply With Quote
Old 01-24-2013, 11:26 PM   #8
Alvin in AZ
AKA: Butthead

Alvin in AZ's Avatar

Join Date: Apr 2009
Location: Gadsden Purchase
Posts: 2,880
iTrader: (0)
Bronco Info: '91 RoadQueen 351w-2wd-ZF camtiming+4* 265/75-16E's dual Ranchos F&R, SuperCab bench seat EEC=F250
Quote:
Originally Posted by Kingfish999 View Post
if the pinion moves front and back then the bearing is bad.
http://www.youtube.com/watch?v=7MWsPJBCrww

----------------------------

Steve, where'd you get the crazy ideas plastic deformation -doesn't- work
harden steel and plastic deformation even removes(!) work hardening?

Alvin in AZ
Alvin in AZ is offline   Reply With Quote
Old 01-24-2013, 11:59 PM   #9
Kingfish999
Nothing beets a Fullsize

Kingfish999's Avatar

Join Date: May 2010
Location: Palm Harbor FL
Posts: 4,651
iTrader: (18)
Bronco Info: 96 Bronco 5.8 DD, 88 Bronco motorless Mudder
Quote:
Originally Posted by Alvin in AZ View Post
holy crap. must not have any bearings or carrier in there for that
__________________

-----96 5.0 E4OD--------------88 5.8 C6--------------96 5.8 E4OD------
---------KIA-------------------Mud/Trail---------------Daily Driver------
Kingfish999 is offline   Reply With Quote
Old 01-25-2013, 12:07 AM   #10
helirich
Fullsize Member

helirich's Avatar

Join Date: Jul 2009
Location: Florida
Posts: 2,398
iTrader: (1)
Bronco Info: 90' 351/E40D 38" tires, 4.88 gears, full float 8.8, lockers F&R
Alvin, thats pretty good, LOL. Mine was less than an 1/8". Now is less than 1/16". But it still is not preloaded.
helirich is offline   Reply With Quote
Old 01-25-2013, 12:51 AM   #11
Alvin in AZ
AKA: Butthead

Alvin in AZ's Avatar

Join Date: Apr 2009
Location: Gadsden Purchase
Posts: 2,880
iTrader: (0)
Bronco Info: '91 RoadQueen 351w-2wd-ZF camtiming+4* 265/75-16E's dual Ranchos F&R, SuperCab bench seat EEC=F250
Quote:
Originally Posted by helirich View Post
Mine was less than an 1/8".
Now is less than 1/16".
But it still is not preloaded.
Cool, I've snugged 'em up before and had 'em last years and years. :)

The crush sleeve or solid spacer is the -minimum- size -before- any
bearing wear. ;)

Tightening it down ain't gonna hurt anything as long as you don't get
carried away, IM(limited)E.

King's friend's experience could be the opposite of mine or the same. ;)
His was just too shot to go much farther -any which away-? ;)

But x2 King's warning and advice to do it right tho, at least you can
save the housing and rebuild it better than new, ...if that's your thing?

Alvin in AZ
ps HellaRich, can't find my notes or wiring diagrams since the move
-in- and so I don't know the wire colors for the defrost-power to
window-power swap. Heck, I can't even find the thread it was in! :/
No kidding. LOL :)
pps- Having heard ol'guys talk about rebuilding rear axles and setting
up the gears since I was a kid... I fiNgure that torque readings on the
carrier and pinion preloads are mostly for -books-. YMMV on that.
Alvin in AZ is offline   Reply With Quote
Old 01-25-2013, 01:01 AM   #12
Steve83
Registered User

Steve83's Avatar

Join Date: Jul 2003
Location: Memphis, TN
Posts: 35,996
iTrader: (101)
Bronco Info: '83 VIN & title on '93 frame/body w/'95 4.9L & EB paint
Quote:
Originally Posted by helirich View Post
...is torque cumulative?
Generally, yes. But with hypoid gears, it's not that simple. That's why no axle mfr. specifies preload torque with the carrier installed. The actual torque to turn the pinion becomes dependent on too many variables, including (but not limited to) gear mesh settings, oil viscosity, oil film thickness on the teeth actually in mesh (which changes with position & speed of rotation), oil temperature, carrier bearing preload/oil film... Will it get you closer than you are now? Probably. Will it be right? Probably not.
Quote:
Originally Posted by Alvin in AZ View Post
where'd you get the crazy ideas plastic deformation -doesn't- work harden steel and plastic deformation even removes(!) work hardening?
Mechanical Engineering 203 & 204, IIRC (Mechanics of Materials & Lab). BTW I wasn't referring to "creep", which is technically plastic deformation. But creep occurs in the elastic zone.
__________________
Walk softly & carry a BIG SIX ! ! !

. .
Steve83 is offline   Reply With Quote
Old 01-25-2013, 01:11 AM   #13
Alvin in AZ
AKA: Butthead

Alvin in AZ's Avatar

Join Date: Apr 2009
Location: Gadsden Purchase
Posts: 2,880
iTrader: (0)
Bronco Info: '91 RoadQueen 351w-2wd-ZF camtiming+4* 265/75-16E's dual Ranchos F&R, SuperCab bench seat EEC=F250
Quote:
Originally Posted by Steve83 View Post
Generally, yes. But with hypoid gears, it's not that simple. That's why no axle
mfr. specifies preload torque with the carrier installed. The actual torque to
turn the pinion becomes dependent on too many variables, including (but not
limited to) gear mesh settings, oil viscosity, oil film thickness on the teeth
actually in mesh (which changes with position & speed of rotation), oil
temperature, carrier bearing preload/oil film...
x2 :)

No carrier causing drag here...
http://www.youtube.com/watch?v=x5_0FYWgWI8
...and not much weight to keep it spinning either. :)

This one's ~3 minutes long...
http://www.youtube.com/watch?v=8APYO...ture=fvwp&NR=1

Quote:
Mechanical Engineering 203 & 204, IIRC (Mechanics of Materials & Lab).
BTW I wasn't referring to "creep", which is technically plastic deformation.
But creep occurs in the elastic zone.
Cool! :)

Got my information from Metallurgy class, ASM's Metals Handbook and
silversmiths. ;)

Alvin in AZ
Alvin in AZ is offline   Reply With Quote
Old 01-25-2013, 09:06 PM   #14
helirich
Fullsize Member

helirich's Avatar

Join Date: Jul 2009
Location: Florida
Posts: 2,398
iTrader: (1)
Bronco Info: 90' 351/E40D 38" tires, 4.88 gears, full float 8.8, lockers F&R
Quote:
Originally Posted by Kingfish999 View Post
if the pinion moves front and back then the bearing is bad. you really need to replace it and do the job right. doing it halfassed will jsut make it not reliable. my friend replaced his halfass and it blew up in less than a month
I think most of the reason it moves is the nut backed off. When I tightened it back to the crush sleeve, it has very little movement. Of course it had none when i set it up ten years ago. So I guess there is some ware. I will check the diff oil for metal.

Quote:
Originally Posted by Alvin in AZ View Post
Cool, I've snugged 'em up before and had 'em last years and years.
I ve seen this too.


Quote:
Originally Posted by Alvin in AZ View Post
But x2 King's warning and advice to do it right tho, at least you can save the housing and rebuild it better than new, ...if that's your thing?
I have another housing in my garage. So if it packs it in, I will swap that one in. I would like to make a better truss than I have on this one.

Anyone following the pinion nut can disreguard the following.
Quote:
Originally Posted by Alvin in AZ View Post
Alvin in AZ
ps HellaRich, can't find my notes or wiring diagrams since the move
-in- and so I don't know the wire colors for the defrost-power to
window-power swap. Heck, I can't even find the thread it was in! :/
No kidding. LOL :)
I thought my Ipad wasnt posting. I guess it was the forum natzi's. LOL. Sometimes I think they are against the flow of information. In any case, I noticed that there was a fused lead for the defrost in the left rear fender. (behind the taillight) Is that where you are talking about? Does it make the rear window go faster? I know they can run the gate window by relays for an improvment. But thats alot of work.


Quote:
Originally Posted by Alvin in AZ View Post
pps- Having heard ol'guys talk about rebuilding rear axles and setting
up the gears since I was a kid... I fiNgure that torque readings on the
carrier and pinion preloads are mostly for -books-. YMMV on that.
I have set up several sets of gears. Its not too bad of a job.
What does YMMV stand for?

Quote:
Originally Posted by Steve83 View Post
Generally, yes. But with hypoid gears, it's not that simple. That's why no axle mfr. specifies preload torque with the carrier installed. The actual torque to turn the pinion becomes dependent on too many variables, including (but not limited to) gear mesh settings, oil viscosity, oil film thickness on the teeth actually in mesh (which changes with position & speed of rotation), oil temperature, carrier bearing preload/oil film... Will it get you closer than you are now? Probably. Will it be right? Probably not.
Yea lots of varibles. But if its cumalative, all that would be takin into account. If I dont allready have damage, it will probubly be OK. (at least until I can swap it)
helirich is offline   Reply With Quote
Old 01-25-2013, 10:44 PM   #15
cajunrebel
Chillin on the Gulf Coast

cajunrebel's Avatar

Join Date: Apr 2009
Location: Florida, from Louisiana
Posts: 1,513
iTrader: (4)
Bronco Info: Blue 89' EB 5.0, E4OD, OBDII, Mass Air, Saginaw, Hydroboost, 3G alt
YMMV= Your Mileage May Vary. I am watching this pretty close. I have a loose pinion myself and changed the crush sleeve but couldnt get it to crush. My springs just kept flexing. I will try putting something to stop the pinion from rotating up and try again when I get back. I found out this week that my bronco that I have not gotten running needs to drive cross country in March.
cajunrebel is offline   Reply With Quote
Old 01-25-2013, 11:15 PM   #16
helirich
Fullsize Member

helirich's Avatar

Join Date: Jul 2009
Location: Florida
Posts: 2,398
iTrader: (1)
Bronco Info: 90' 351/E40D 38" tires, 4.88 gears, full float 8.8, lockers F&R
Quote:
Originally Posted by cajunrebel View Post
YMMV= Your Mileage May Vary. I am watching this pretty close. I have a loose pinion myself and changed the crush sleeve but couldnt get it to crush. My springs just kept flexing. I will try putting something to stop the pinion from rotating up and try again when I get back. I found out this week that my bronco that I have not gotten running needs to drive cross country in March.
If you have the yoke, you can just use a big pipe wrench to hold it. I see in the video Alvin posted, they used pretty long bars. (I had a long breaker bar, but I didnt extend it with a pipe.) I cant get back on mine for another week. (at work)

Thanks for the translation
helirich is offline   Reply With Quote
Old 01-25-2013, 11:28 PM   #17
cajunrebel
Chillin on the Gulf Coast

cajunrebel's Avatar

Join Date: Apr 2009
Location: Florida, from Louisiana
Posts: 1,513
iTrader: (4)
Bronco Info: Blue 89' EB 5.0, E4OD, OBDII, Mass Air, Saginaw, Hydroboost, 3G alt
I have a large piece of flat steel that is drilled to fit the yoke and is bolted up and supported by the jack stand. It is not rotating the normal direction a pinion rotates, it is wrapping the leaf springs and rotating the entire housing. It is rotating on the same axis as the tires, not the driveshaft.
cajunrebel is offline   Reply With Quote
Old 01-26-2013, 12:17 AM   #18
Steve83
Registered User

Steve83's Avatar

Join Date: Jul 2003
Location: Memphis, TN
Posts: 35,996
iTrader: (101)
Bronco Info: '83 VIN & title on '93 frame/body w/'95 4.9L & EB paint
Quote:
Originally Posted by helirich View Post
Yea lots of varibles. But if its cumalative...
Quote:
Originally Posted by Steve83 View Post
But with hypoid gears, it's not...
Those variables aren't directly-proportional to the preload or to the rotating torque.
Quote:
Originally Posted by cajunrebel View Post
I will try putting something to stop the pinion from rotating up...
Quote:
Originally Posted by cajunrebel View Post
It is not rotating the normal direction a pinion rotates...
Why are you working in that direction? You're wasting your effort. Use the pinion bolts to attach a bar that keeps the pinion from rotating the SAME direction that you're torquing the nut.

__________________
Walk softly & carry a BIG SIX ! ! !

. .
Steve83 is offline   Reply With Quote
Old 01-26-2013, 09:08 AM   #19
helirich
Fullsize Member

helirich's Avatar

Join Date: Jul 2009
Location: Florida
Posts: 2,398
iTrader: (1)
Bronco Info: 90' 351/E40D 38" tires, 4.88 gears, full float 8.8, lockers F&R
Quote:
Originally Posted by Steve83 View Post
Why are you working in that direction? You're wasting your effort. Use the pinion bolts to attach a bar that keeps the pinion from rotating the SAME direction that you're torquing the nut.
I think he is doing that except he's got the bar horizontal on a jack stand. I would recomend letting the bar on the floor. (Like in my pic) then it will have less leverage to rotate.
helirich is offline   Reply With Quote
Old 01-26-2013, 09:23 AM   #20
helirich
Fullsize Member

helirich's Avatar

Join Date: Jul 2009
Location: Florida
Posts: 2,398
iTrader: (1)
Bronco Info: 90' 351/E40D 38" tires, 4.88 gears, full float 8.8, lockers F&R
Quote:
Originally Posted by Steve83 View Post
Those variables aren't directly-proportional to the preload or to the rotating torque.]
What I meant by "takin in to account" was on that particular axle. I realize that two different 8.8s may have different torques to turn the axles. (Like the carrier preload effect) So the mfg. couldn't give a figure. But on one particular axle on a given day (oil temp) should take the same torque to rotate the axle now and in ten minutes from now.

The only thing I'm unsure of is if it takes 10 in/lbs to rotate the axle and 15 to rotate the preload, can I assume it will take 25 to rotate the two assembled.
helirich is offline   Reply With Quote
Sponsored Links
Advertisement

Reply

  FSB Forums > Bronco Discussions > Noobie Bronco Tech Questions. Flame free zone!


Thread Tools
Display Modes

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Forum Jump


All times are GMT -4. The time now is 12:27 AM.


2003-2009 FullSizeBronco.com. All rights reserved
