My F250

This June ill have owned my F250 9 years. This November ill have had the bronco 13! I must be getting old. At least this one is still in decent shape though. Just finished cleaning/polishing the wheels, and doing a good clean on the body, couldn't resist snapping a few pics.








Theres been a few dents & scrapes along the way, but she's gonna be around for the long haul, so in another year or two, the body is getting the full resto treatment


88bronco: web / FSB || 96 bronco: web / FSB || 96 F250: web / FSB

Last edited by schwim; 07-24-2018 at 08:37 AM.
reptillikus is online now
Sponsored Links
Advertisement

post #2 of 80 (permalink) Old 04-08-2013, 03:28 PM
Charlie don't surf!!

jermil01's Avatar

Join Date: Apr 2003
Location: JAX, FLA
Posts: 14,371
Bronco Info: 1992 xlt, 351EFI, .040, E4OD, D44 SAS w/Trutrac,Detroit locked 8.8, MAF conv, Tweeced
iTrader: (32)
Garage
the 2fity looks great..

jermil01 is offline
post #3 of 80 (permalink) Old 04-08-2013, 03:44 PM
LS Swap Everything!

Red91XLT's Avatar

Join Date: Oct 2007
Location: Biloxi, Mississippi
Posts: 26,233
Bronco Info: '07 BMW 328i & '02 Camaro Z28
iTrader: (0)
Always good to see them in good hands. It'd take way too much cash to take mine off my hands, It's in it for the long haul too.



'91 XLT-totaled
Quote:
Originally Posted by Gacknar View Post
This is not a Democracy, it is a Broncocracy
Quote:
Originally Posted by Redwagon View Post
You do realize that you just reported the new owner of FSB?
-James
Red91XLT is offline
post #4 of 80 (permalink) Old 04-08-2013, 03:58 PM
F.O.T.M. - MAY 2014!!!

fartman's Avatar

Join Date: Jan 2005
Location: Los Angeles, California
Posts: 6,255
Bronco Info: 88 FSB. 4.9l -T18-BW1356-33" MTs-Warn hubs Daystar leveling kit
iTrader: (12)
Clean 250,

Sliding rear windows, GT roll bar, Cargo net and looking for other rare options. 4.10 gears LSD 33" MTs First ever Stock Fullsize of the Month...
J A S N http://www.supermotors.net/registry/19528
fartman is offline
post #5 of 80 (permalink) Old 04-08-2013, 05:12 PM
Registered User

phobos2deimos's Avatar

Join Date: Dec 2009
Location: San Diego
Posts: 1,723
Bronco Info: A Very Special '86 302
iTrader: (5)
Man, everything about this truck is perfect.


Quote:
Originally Posted by TheUnforgiven View Post
you could use your own piss as brake fluid, it would just boil at a lower temperature.
phobos2deimos is offline
post #6 of 80 (permalink) Old 04-08-2013, 05:53 PM
FSM Lifetime

Join Date: Jun 2010
Location: Collin county, TX
Posts: 3,869
Bronco Info: Brick Nose on 15x10s/32s with leveling coils
iTrader: (7)
pretty cool not digging the rust hiders though.
GetBent4x4 is offline
post #7 of 80 (permalink) Old 04-08-2013, 07:17 PM
Fullsize Member

silent one's Avatar

Join Date: Dec 2004
Location: Northport,N.Y.
Posts: 7,110
Bronco Info: 1995 sport,6''SAS 37's streetlocks 4.56's ARB,BroncoAir rear bumper HeftyFabworks front bumper
iTrader: (16)
Looking good Kevin, alway liked the look of that truck.


KEEP CALM AND BRONCO ON
Silent One's Supermotors Page
January 2010 FOTM Winner
@silentjde on instagram
silent one is offline
post #8 of 80 (permalink) Old 04-08-2013, 07:51 PM
FSB's Dirty Jersian

Smok3y's Avatar

Join Date: Nov 2009
Location: South Jersey
Posts: 3,581
Bronco Info: 89 EB, 91 Silver Anniv, 91 F250, 79 F250
iTrader: (0)
Great combo. I ended up with a bronco for hauling and using the pickup for offroad use. Wish I had it your way instead.

Also, rep do you have a SM page? There are quite a few pics of your bronco that I have used before (and now lost) to demonstrate different things to people who were currently building a trail rig and I'm not sure if all of them are in the sig links on the "forensick" page. If possible could you post it up or pm me?

89 Eddie Bauer - 6" RC Lift, 35" KO's, 302/c6 swap, Ford 9"
79 F250 Ranger Lariat - 9" Lift, 40" Ground Hawgs, 400/435/205, D60/D70 LOCKED

Quote:
Originally Posted by SigEpBlue
All I want people to do is STOP, THINK, and SEARCH. Only post if those three fail after thoroughly repeating.
Smok3y is offline
post #9 of 80 (permalink) Old 04-08-2013, 10:34 PM
Registered User

norfolkff05's Avatar

Join Date: Jan 2009
Location: va beach
Posts: 1,714
Bronco Info: 1985 EB current 1-ton sas and diesel/zf5 swap in progress
iTrader: (0)
clean truck! just wondering....are you running the stock d50ttb or did you sas it? it almost looks like a solid axle under there, but it's hard to see. i hated the d50 in my 89 f250, it rode like crap!

My build-85 Bronco 7.3idi and 1 ton leaf sas-http://www.fullsizebronco.com/forum/showthread.php?t=206821
norfolkff05 is offline
post #10 of 80 (permalink) Old 04-08-2013, 10:54 PM
Registered User

Hopper's Avatar

Join Date: Sep 2004
Posts: 9,135
Bronco Info: Stockish 93 5.8L, E4OD, BW1356; 79, 400/T-18/NP205, D44/9"
iTrader: (6)
The old body style rigs are the best

I've always liked your rigs Rept, great stuff.

I've always wondered though, beyond the D60, what all mods have you made to the F250? How many miles are on it?

Hopper is offline
post #11 of 80 (permalink) Old 04-09-2013, 06:18 AM
Fullsize Member

Join Date: Dec 2009
Location: Virginia Beach
Posts: 3,946
Bronco Info: 95 XLT SAS Dana 44 front Power lock Ford 8.8 rear True track 4.88 gears 6" Devers shackle flip
iTrader: (3)
good looking f-250 you know how to keep them in great shape.

remember its your ride build it your way not there way.
but build it dont buy it
thin blue line is offline
post #12 of 80 (permalink) Old 04-09-2013, 09:12 AM Thread Starter
ate lug

reptillikus's Avatar

Join Date: Apr 2003
Location: Reading, PA
Posts: 8,350
Bronco Info: 88 Bronco/96 Bronco/96 F250
iTrader: (4)
Garage
Thanks everybody Ive owned a few different trucks over the years, but this one has grown to be my favorite, I definitely want it to last for a long time yet. Sure is hard work keeping it (somewhat) clean though!

Quote:
Originally Posted by Red91XLT View Post
Always good to see them in good hands. It'd take way too much cash to take mine off my hands, It's in it for the long haul too.
I agree. Much like the bronco, I don't think I could ever sell it.

Quote:
Originally Posted by GetBent4x4 View Post
pretty cool not digging the rust hiders though.
I call em mud & snow catchers. No rust underneath them (yet) PA is pretty strict about fender flares, I know lots of people whove been pulled over & fined for not having them.

Quote:
Originally Posted by Smok3y View Post
Great combo. I ended up with a bronco for hauling and using the pickup for offroad use. Wish I had it your way instead.

Also, rep do you have a SM page? There are quite a few pics of your bronco that I have used before (and now lost) to demonstrate different things to people who were currently building a trail rig and I'm not sure if all of them are in the sig links on the "forensick" page. If possible could you post it up or pm me?
I do but don't update it much. Got pics of both my trucks, as well as my dad's '66 Buick http://www.supermotors.net/users/reptillikus
Everything is on forensick, altho I may have slacked off and forgot to add some links to the index pages. Next rainy day ill have to go thru it and make sure theyre updated.



Quote:
Originally Posted by norfolkff05 View Post
clean truck! just wondering....are you running the stock d50ttb or did you sas it? it almost looks like a solid axle under there, but it's hard to see. i hated the d50 in my 89 f250, it rode like crap!
Quote:
Originally Posted by Hopper View Post
The old body style rigs are the best

I've always liked your rigs Rept, great stuff.

I've always wondered though, beyond the D60, what all mods have you made to the F250? How many miles are on it?


Just breaking in at 153k miles


Yes, D60. Had a 6" Skyjacker lift, I ditched the front leafs for stock F350 leafs & a 3.5" Sky shackle reversal, rides mucho nicer now. They are about whooped though, which is fortunate that this Friday my new s/r kit arrives, which ill be using to put Superduty leafs under the front Edit: Installed (here).
Still got the Skyjacker leafs out back, altho theyre getting old now, def sagged a bit, but I really like the stance- low, and tail-high.

As for other mods, it has a tymar intake, banks d.p. & exhaust ($$$ I know) & a full set of Autometer gauges. I made a cross-over pipe for the heads for the high-pressure oil system, helps clean up the idle a bit. Switched to the 97 PCM which has way better glow-plug logic (necessity, my pcm died). Also got some performance parts from Swamps Diesel Performance, namely their Baby Swamps injectors, their tuned up IDM and a 6-pos chip, which starts at stock and goes to holy crap Needless to say I violently exploded the E4OD last year towing (destroyed everything except the reverse planetary), so now ive got a fully upgraded one with SS planetaries, billet converter, the whole nine yards. I also have a water-meth injection kit sitting in the garage, which will be going in within the next month once I figure out where to put the tank & pump


88bronco: web / FSB || 96 bronco: web / FSB || 96 F250: web / FSB

Last edited by reptillikus; 07-05-2013 at 06:55 PM. Reason: added link for S/D S/R Install
reptillikus is online now
post #13 of 80 (permalink) Old 04-09-2013, 04:06 PM
Registered User

96blkbeauty's Avatar

Join Date: Jan 2005
Location: Greeley, CO
Posts: 3,422
Bronco Info: Skyjacker leveling coils/aal, 33x12.50 Kevlar MT's, Flowmaster Duals, Uniden CB, other misc mods
iTrader: (2)
Nice rig

1996 Eddie Bauer. Sold June 2013. Bought back September 2018.
96blkbeauty is offline
post #14 of 80 (permalink) Old 04-09-2013, 08:30 PM
Kitteh Commandaar!

KC200787's Avatar

Join Date: Sep 2007
Location: Fort Meade, MD
Posts: 4,197
Bronco Info: 2006 F150 Lariet 4x4 ECSB - 5.4 Trition
iTrader: (2)
Always liked that 2fidy. Looking sharp.

When my f150 grows up, it wants to look like that! :

KC

My Supermotors PageMy vehicles:
DD - Truck: 2006 Ford F150 Lariet, Ext. Cab, 5.4, Auto, 105K
Truck: 1995 Ford F150, Ext. Cab, 5.0L, 5sp, 189k miles, 4x4, 31" Trailblazer Mud Terrains - currently broken
KC200787 is offline
post #15 of 80 (permalink) Old 06-10-2013, 01:32 PM Thread Starter
ate lug

reptillikus's Avatar

Join Date: Apr 2003
Location: Reading, PA
Posts: 8,350
Bronco Info: 88 Bronco/96 Bronco/96 F250
iTrader: (4)
Garage
Quote:
Originally Posted by reptillikus View Post
I also have a water-meth injection kit sitting in the garage, which will be going in within the next month once I figure out where to put the tank & pump
Oh snap its done


Just finished installing my Cooling Mist water/meth injection system yesterday, so it still needs some tuning but that's basically it.

Heres where i decided to install the controller. Its visible, but doesn't blind me at night (it is pretty bright)


Powered up:


Had to build a fairly extensive wiring harness to hook it all up


The kit comes with a 1 gallon tank, but IMO that's pretty small for a diesel so I bought a 12 gallon tank from the tank depot, and installed it in the toolbox here. While the tank is awesome, I didn't not expect the 6-8 week lead time to get it


Divider to keep stuff away from it


Heres the tank:


Vented cap


sump, with 3/4" fitting


...and here's the basic idea


So I had to build a carriage to hold the tank securely, and get the sump high enough that the tank can gravity-feed the pump that will be installed next to it


Mock-up, with pump sitting there


Had to put a notch in the toolbox lid to clear tank


Carriage complete, with tabs for other parts of the system


Finished and painted


Note the foam padding on the straps, to keep them from rubbing on the tank


Had to install a float in the tank. When empty, it will throw an error code, and shut the system down so the pump doesn't run dry




Here is the general idea before the final install in the truck


On the side of the frame is a solenoid that the controller turns on when injecting. This defaults closed, so if anything goes wrong with the system the ground drops out and it closes, preventing the system from over injecting. Also closed when the key is off, so it is impossible for the tank/pump to siphon and fill intake with water.

In front, next to the pump, is the Failsafe Control Box, which is basically the brain of the system. It learns your system, and if it senses anything is awry, it alerts the controller in the dash, which is when the system will shut down and display an error code. It has lots of conditions for keeping the system in-line, and is tunable through the dash controller.

I opted to install these items here, in an effort to keep the system contained to the toolbox. The FCB could go anywhere, but I didn't want to clutter up space under the hood or dash, and it seemed logical to keep the solenoid close to the pump.


Ok, divider installed:


Wiring in progress. I like weatherpacks. Used em for years with zero problems, and they make the system easy to disassemble.






The supply tube is nylon tubing. I have it wrapped in split loom for extra protection


...and this is where the injector goes (pipe plug in intake). Moved injector post-turbo at recommendation of people on PSN


So that's basically it. I drove it to work for the first time last night, and it definitely does the job well! I have Baby Swamps (injectors) with an E4OD, 4.10s & 37s so EGTs are always a concern for me, but I was flying (needle pegged) and couldn't get it to 1200 no matter how hard I tried. Im gonna have to hitch up the trailer to get a heavier load on the truck, in order to tune it better. So yeah, its awesome


88bronco: web / FSB || 96 bronco: web / FSB || 96 F250: web / FSB
reptillikus is online now
post #16 of 80 (permalink) Old 06-10-2013, 01:48 PM
Registered User

FordsForeverEric's Avatar

Join Date: Mar 2011
Location: Troy, MO
Posts: 633
Bronco Info: '87- 4.9, Tremec RTS 4-spd, 33's, SAS
iTrader: (1)
Damn that's a nice truck!

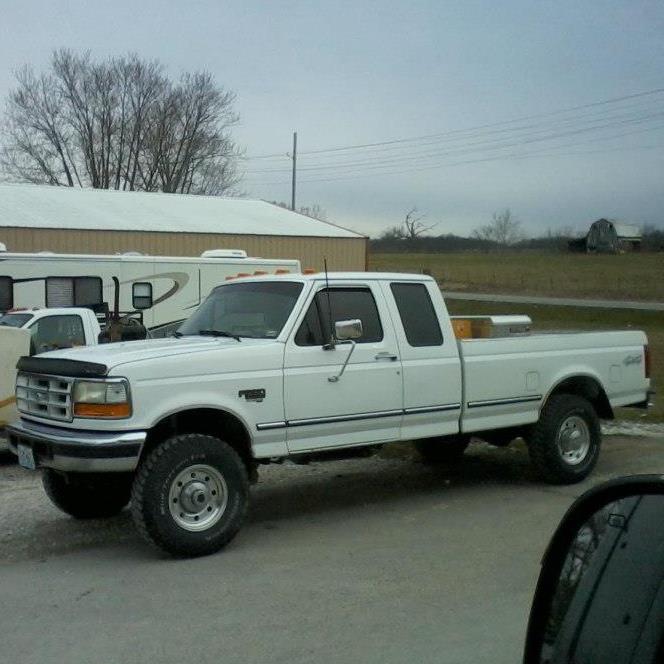

This is my brother's truck. He's had the rear fenders fixed, swapped it to 5-speed, ts 6 position with Tony Wildman tunes. He's looking to run water meth in the future



In the near future I'm gonna be shopping for a crew cab shortbed 250, I love the obs trucks, and the ccsb trucks are getting hard to find


Last edited by FordsForeverEric; 06-10-2013 at 01:49 PM. Reason: grammar
FordsForeverEric is offline
post #17 of 80 (permalink) Old 06-10-2013, 01:58 PM
Fullsize Member

JKossarides's Avatar

Join Date: Apr 2005
Location: Rolling Hills Estates, CA
Posts: 9,989
Bronco Info: 1986 Bronco XLT 4x4 -AOD -Warn Hubs, NEW stock 302EFI (2008) All MSD ignition, 9mm FMSR wires
iTrader: (1)
Nice pickup but where your Bronco pictures Bro!...lol lol
JKossarides is offline
post #18 of 80 (permalink) Old 06-10-2013, 03:00 PM Thread Starter
ate lug

reptillikus's Avatar

Join Date: Apr 2003
Location: Reading, PA
Posts: 8,350
Bronco Info: 88 Bronco/96 Bronco/96 F250
iTrader: (4)
Garage
here ya go




Dont worry there will be plenty when I get back from the ECBR



Quote:
Originally Posted by FordsForeverEric View Post
Damn that's a nice truck!
This is my brother's truck. He's had the rear fenders fixed, swapped it to 5-speed, ts 6 position with Tony Wildman tunes. He's looking to run water meth in the future



In the near future I'm gonna be shopping for a crew cab shortbed 250, I love the obs trucks, and the ccsb trucks are getting hard to find

Don't tell my bronco, but I love the 92-96 trucks
Tell him to do it! ive only had it in a full day now, but the difference was surprising. Then, when he's ready to do injectors he wont have EGT issues.

If anything happens to my truck im going crew cab, they are so badass.


88bronco: web / FSB || 96 bronco: web / FSB || 96 F250: web / FSB
reptillikus is online now
post #19 of 80 (permalink) Old 06-10-2013, 03:32 PM
Fullsize Member

JKossarides's Avatar

Join Date: Apr 2005
Location: Rolling Hills Estates, CA
Posts: 9,989
Bronco Info: 1986 Bronco XLT 4x4 -AOD -Warn Hubs, NEW stock 302EFI (2008) All MSD ignition, 9mm FMSR wires
iTrader: (1)
Nice Brother, thanks ~
JKossarides is offline
post #20 of 80 (permalink) Old 06-10-2013, 06:37 PM
Registered User

SUPERJUNK's Avatar

Join Date: Sep 2003
Location: gettin drunk somewhere
Posts: 355
Bronco Info: 79 Bronco
iTrader: (11)
Kevin,the rig looks great


Which kit did you go with?

I am looking at trying to lower my EGT's also.Those Baby Swamps are awesome but man,it gets real hot real quick..
SUPERJUNK is offline
Sponsored Links
Advertisement

Reply

  Ford Bronco Forum > Other Forums > General Discussion/ Bronco and Wheeling related.

Quick Reply
Message:
Options

Register Now



In order to be able to post messages on the Ford Bronco Forum forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.

User Name:
Password
Please enter a password for your user account. Note that passwords are case-sensitive.

Password:


Confirm Password:
Email Address
Please enter a valid email address for yourself. DO NOT USE Gmail.com accounts. If you only have a Gmail.com email please contact the administrator here

Email Address:
OR

Log-in










Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page
Display Modes
Linear Mode Linear Mode



Posting Rules
You may post new threads
You may post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is On
Trackbacks are On
Pingbacks are On
Refbacks are On


For the best viewing experience please update your browser to Google Chrome
