Seasonal "How to not burn your bronco to the ground" tech write up.

Well earlier this week I was warming up the Bronco for work. I kicked the heater on high, when all the sudden LOTS of smoke filled the cabin of the truck. It smelled like burning leaves and really scared the crap out of me. I turned the truck off and opened the doors to air it out (I was about two seconds from calling the fire department), luckily it just smoked some leaves and didn't catch fire. I logged on here and searched. In no time I was at Steve83's supermotors page looking at the culprit (Thanks Steve!). This is old hat to alot of you veterans, but this is my third fsb and I never had this crap happen before. The problem is leaves and small twigs fall through the cowl vent and create a tender box in the hvac system. When the leaves build up on the resister next to the blower motor, they can catch FIRE off the heat of the resister. So here's a little how to that anyone can do:
First remove your blower motor, you'll need a 5/16 socket to loosen the four screws, and it will easily pop out.

Once the blower is out of the way, you'll be able to scoop/vacuum out all the debris. Reach your arm all the way down the inner fender to get all the crap out, just try to get your hand in every nook and cranny the leaves could've got into.

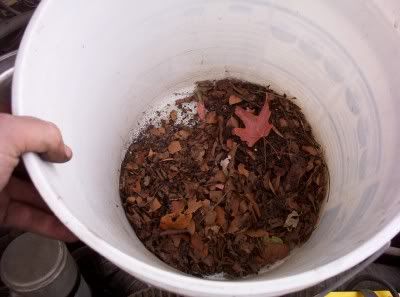

This is all the crap that came out of mine, more than I ever imagined was in there.

Next, use your 5/16 to remove the resister (The red thing) so you can clean it real good

Here's how mine looked when it came out, FULL of dry, flammable leaves!

Here's how it's supposed to look if you don't want to burn your Bronk to the ground

Re-install the resister, and hook the two plugs back in.

Re-install the blower motor and your done!

Since I bought this truck the a/c and heat barely came out the vents, now it blows good and strong.
Now pour yourself a glass of wine that you bought with all the money you saved by not burning your rig to the ground

there is nothing easy about adult life
STUPID is offline
Sponsored Links
Advertisement

post #2 of 36 (permalink) Old 11-24-2005, 05:42 PM
Engineer

ToddACimer's Avatar

Join Date: Apr 2004
Location: Oshkosh, Wi
Posts: 13,168
Bronco Info: 95 Eddie Bauer
iTrader: (19)
Hmm I should try that on mine. Maybe someday when it's not 10 degrees outside. Nice write up too. Are all the 80-96's the same?

1995 Ford Bronco Eddie Bauer 351W 2.5" RC Front Lift. JBG 3" Rear Springs. 17" M/T Classic III's and 285/70/17 Toyo Open Country A/T II, 4.56 gears trac-loc f/r. Street Toy
ToddACimer is offline
post #3 of 36 (permalink) Old 11-24-2005, 05:46 PM
Lick my balls

waltman's Avatar

Join Date: Oct 2005
Location: far from reality
Posts: 13,047
Bronco Info: 1989 bronco, 3" suspension lift, rebuilt 302 with cam, 33' big-os
iTrader: (1)
Good write up...STUPID. I chuckled when I saw the wine glass with the broncos hood open in the background. I'm working on my truck tomorrow, I think I may see how full mine is.

there is no such thing as stupid questions, just stupid people.
Only that in you which is me can hear what I'm saying
No matter where you go or what you do, you live your entire life within the confines of your head
I don't suffer from insanity; I enjoy every minute of it

waltman is offline
Sponsored Links
Advertisement

post #4 of 36 (permalink) Old 11-24-2005, 05:59 PM
Wrenching for a Livin'

magnumpi's Avatar

Join Date: Jan 2004
Location: Sherrills Ford, NC
Posts: 6,951
Bronco Info: '85 Ford Bronco XLT.
iTrader: (20)
hmm....i might do that tomorra. Since my motor is out it will be super easy. :)

My SuperFord
'85 Bronco......
Welded 14 bolt, HPKingpin D60 w/ lockright, ZF5, NP205, 4.88 gears, SMPFI 393 w/ EDIS(gufx strat), Chevy 52s Front, Inboarded Chevy 63s Rear, DOM heim steering, DOM cage, Saginaw pump, 3/8" fuel system, 200amp 3G Alternator....

ASE Master Automotive Technician
ASE Master Medium/Heavy Truck Technician
magnumpi is offline
post #5 of 36 (permalink) Old 11-24-2005, 06:25 PM
FSB warrior

81Bronk36's Avatar

Join Date: Mar 2003
Location: South GA
Posts: 6,118
Bronco Info: was an 81, GT-40P, NP-435, NP208, 36s, 0" lift
iTrader: (6)
Thats gonna make a good newbie... where is the blower motor resistor located??

1BadBronco
was a81 Bronco Custom. Sold See my superford link for how I built her!
NOW83 F-250 6.9L IDI, built C-6 1345 D44HD and D70 rear with 3.55 gears. Sag pump, hydroboost, 3G, SD vacuum pump, bumpers, 34" swampers
81Bronk36 is offline
post #6 of 36 (permalink) Old 11-24-2005, 07:12 PM
Wrenching for a Livin'

magnumpi's Avatar

Join Date: Jan 2004
Location: Sherrills Ford, NC
Posts: 6,951
Bronco Info: '85 Ford Bronco XLT.
iTrader: (20)
Quote:
Originally Posted by 81Bronk36
Thats gonna make a good newbie... where is the blower motor resistor located??
its the red panel that the wires are connected to. What he took out in his writeup

My SuperFord
'85 Bronco......
Welded 14 bolt, HPKingpin D60 w/ lockright, ZF5, NP205, 4.88 gears, SMPFI 393 w/ EDIS(gufx strat), Chevy 52s Front, Inboarded Chevy 63s Rear, DOM heim steering, DOM cage, Saginaw pump, 3/8" fuel system, 200amp 3G Alternator....

ASE Master Automotive Technician
ASE Master Medium/Heavy Truck Technician
magnumpi is offline
post #7 of 36 (permalink) Old 11-24-2005, 07:27 PM
FSB warrior

81Bronk36's Avatar

Join Date: Mar 2003
Location: South GA
Posts: 6,118
Bronco Info: was an 81, GT-40P, NP-435, NP208, 36s, 0" lift
iTrader: (6)
I wasnt asking a ?... that was a statement... I hear that one all the time.

1BadBronco
was a81 Bronco Custom. Sold See my superford link for how I built her!
NOW83 F-250 6.9L IDI, built C-6 1345 D44HD and D70 rear with 3.55 gears. Sag pump, hydroboost, 3G, SD vacuum pump, bumpers, 34" swampers
81Bronk36 is offline
post #8 of 36 (permalink) Old 11-24-2005, 07:28 PM
Wrenching for a Livin'

magnumpi's Avatar

Join Date: Jan 2004
Location: Sherrills Ford, NC
Posts: 6,951
Bronco Info: '85 Ford Bronco XLT.
iTrader: (20)
lol, my bad man...i misread your question. The yams i ate are clouding my reading ability. Those evil yams....

My SuperFord
'85 Bronco......
Welded 14 bolt, HPKingpin D60 w/ lockright, ZF5, NP205, 4.88 gears, SMPFI 393 w/ EDIS(gufx strat), Chevy 52s Front, Inboarded Chevy 63s Rear, DOM heim steering, DOM cage, Saginaw pump, 3/8" fuel system, 200amp 3G Alternator....

ASE Master Automotive Technician
ASE Master Medium/Heavy Truck Technician
magnumpi is offline
post #9 of 36 (permalink) Old 11-24-2005, 07:29 PM
Registered User

Seabronc's Avatar

Join Date: Aug 2005
Location: North of NYC
Posts: 611
Bronco Info: 1983 FSB, 351W, Holley 4BBL, 31x10.5, Ford 8.8 3.08:1 rear
iTrader: (1)
leaves

I had a similar problem. I couldn't figure out why I couldn't feel much air comming thru the driver side defroster. Turned out it was almost completely clogged with leaves. Had to remove the dash cap to get at that.

There is a rubber bladder at the bottom on each side of the cowl vent intake, not sure why, to keep the leaves and crap from getting out I guess . I removed the cowl piece and used a piece of stiff wire to loosen the junk up and then vacuumed it out with my shop vac. I think I'm going to put some screening under the intake grill and remove the bladders when I replace the front fenders next year.

I didn't think about the fan or resistor, think I'l take a look at that tomorrow.

Great write up.


1983 FSB 351W Holley 4 BBL 4160 MSD6AL & Blaster 2 Wipers ON / Head Lights ON Control, Head Light wiring upgrade, 96 Lincoln Mark VIII 4200 CFM Electric Fan, 96 Lincoln Mark VIII 3G 130 Amp Alternator, 31x10.5x15, Ford 8.8 3.08:1 rear, Dana 44 3.08:1 front.
Seabronc is offline
post #10 of 36 (permalink) Old 11-25-2005, 03:08 PM

Join Date: Jul 2004
Posts: 2,734
iTrader: (3)
this was one reason i swapped the cowl to the newer version. it has smaller holes so the bigger leaves do not get in so easy.
here was the old.

here is the new, plus i got 2 extra washers to wash off the dirt and muck. i found out the was a body change and the one i had needed to be modified. i later got an 87-89 and it looks stock.
collinsperformance is offline
post #11 of 36 (permalink) Old 11-25-2005, 06:37 PM
Lick my balls

waltman's Avatar

Join Date: Oct 2005
Location: far from reality
Posts: 13,047
Bronco Info: 1989 bronco, 3" suspension lift, rebuilt 302 with cam, 33' big-os
iTrader: (1)
I was going to check mine today and it turns out I have the tiny holes, thank god, it would have been a beoch to do, very tight in there.

there is no such thing as stupid questions, just stupid people.
Only that in you which is me can hear what I'm saying
No matter where you go or what you do, you live your entire life within the confines of your head
I don't suffer from insanity; I enjoy every minute of it

waltman is offline
post #12 of 36 (permalink) Old 11-28-2005, 07:36 PM
Registered User

Ragged_ol_86's Avatar

Join Date: Jun 2005
Location: Somewhere between Illusion and Denial
Posts: 2,850
Bronco Info: I dont have one any more. 1994 F-350 crewcab flatbed. 351w efi 10.25" e4od.
iTrader: (25)
That happened to me...it reeked for up until bout 3 weeks ago. It happened the morning of the florida M&G. I never been so scared in my life!!

Josh Rogers

Rogers Racing Products
Your Local Hometown AMSOIL Dealer!
Sig courtesy of KoJ
CLICKY----> THE DESTROYER
PARTS FOR SALE---->CLICKY
BR is still an emo kid.
Ragged_ol_86 is offline
post #13 of 36 (permalink) Old 11-28-2005, 07:51 PM
rolling Rolling ROLLING....

Join Date: Jun 2005
Location: sol cal (west covina)
Posts: 22,816
Bronco Info: 98 TJ
iTrader: (34)
nice write up...cleaned mine when i changed the resistor.

Tim

Newest token Jeep owner....

Redwagon is offline
post #14 of 36 (permalink) Old 11-28-2005, 07:52 PM
Wrenching for a Livin'

magnumpi's Avatar

Join Date: Jan 2004
Location: Sherrills Ford, NC
Posts: 6,951
Bronco Info: '85 Ford Bronco XLT.
iTrader: (20)
So an 87-89 cowl will replace the 80-86 cowl and look stock?

My SuperFord
'85 Bronco......
Welded 14 bolt, HPKingpin D60 w/ lockright, ZF5, NP205, 4.88 gears, SMPFI 393 w/ EDIS(gufx strat), Chevy 52s Front, Inboarded Chevy 63s Rear, DOM heim steering, DOM cage, Saginaw pump, 3/8" fuel system, 200amp 3G Alternator....

ASE Master Automotive Technician
ASE Master Medium/Heavy Truck Technician
magnumpi is offline
post #15 of 36 (permalink) Old 11-29-2005, 01:40 PM

Join Date: Jul 2004
Posts: 2,734
iTrader: (3)
yes, in 90 the cowl went flat all the way across so just look at the cowl if it is flat it will not fit without swapping front clips. mike
collinsperformance is offline
post #16 of 36 (permalink) Old 12-22-2005, 05:58 PM

Join Date: Jul 2004
Posts: 17
iTrader: (0)
fire

Hey guys I was driving to work today and smoke started to come through the Passenger side defroster vent on top of my dash. I have not checked to see if there is leaves in the blower motor yet but is there anything else that could cause smoke to come out of the vent? I have a 1990 bronco with the newer style wiper cowel so I dont think big leaves could get into my blower. I am worried that the right side of my dash is going to catch on fire on my way home from work tonight. any help would be great! thanks
bigblackbronco is offline
post #17 of 36 (permalink) Old 12-22-2005, 07:23 PM Thread Starter
Registered User

STUPID's Avatar

Join Date: Apr 2005
Location: Brokeback Mountain
Posts: 1,403
Bronco Info: 1985 FSB 351w C6 d44 sas 8" lift 35" boggers
iTrader: (1)
Holy crap, my old write up came back. Did the smoke smell like burned leaves? If it did you found the right thread, if not........ask Steve83.

there is nothing easy about adult life
STUPID is offline
post #18 of 36 (permalink) Old 12-22-2005, 08:55 PM
Registered User

DcSkater602's Avatar

Join Date: Feb 2005
Location: West Grove, Pa
Posts: 3,426
Bronco Info: 91 bronco Rain cloud of broken stuff edition
iTrader: (4)
im ging to try this tommorow...the air coming out of my vents is pretty light on high

dc

Quote:
I want to convert my 4wd Superduty to 2wd. I can take apart a flashlight in under a minute. So im sure i can handle this
check out the broncos full rebuild
DcSkater602 is offline
post #19 of 36 (permalink) Old 12-22-2005, 09:08 PM
Registered User

Seabronc's Avatar

Join Date: Aug 2005
Location: North of NYC
Posts: 611
Bronco Info: 1983 FSB, 351W, Holley 4BBL, 31x10.5, Ford 8.8 3.08:1 rear
iTrader: (1)
Quote:
Originally Posted by bigblackbronco
I have not checked to see if there is leaves in the blower motor yet but is there anything else that could cause smoke to come out of the vent? I have a 1990 bronco with the newer style wiper cowel so I dont think big leaves could get into my blower.
Quote:
Originally Posted by collinsperformance
this was one reason i swapped the cowl to the newer version. it has smaller holes so the bigger leaves do not get in so easy.
bigblackbronco, read collinsperformance's quote.


1983 FSB 351W Holley 4 BBL 4160 MSD6AL & Blaster 2 Wipers ON / Head Lights ON Control, Head Light wiring upgrade, 96 Lincoln Mark VIII 4200 CFM Electric Fan, 96 Lincoln Mark VIII 3G 130 Amp Alternator, 31x10.5x15, Ford 8.8 3.08:1 rear, Dana 44 3.08:1 front.
Seabronc is offline
post #20 of 36 (permalink) Old 12-23-2005, 10:15 AM
Registered User

Million$dragon's Avatar

Join Date: Jan 2005
Location: Utah
Posts: 511
Bronco Info: Early 1995 351W Stock but it does have 33's on it now. Many upgrades to come!
iTrader: (1)
Now that you have a few glasses of booze down the gullet...time to take the bronco out for a test drive to make sure all works right?! j/k

Million $ Dragon
95 Stock but many upgrades to come
Million$dragon is offline
Sponsored Links
Advertisement

Reply
