88 bumper build

I've been talking about doing it for a while, now it's time. I'll keep a updated list of the parts that I used. I did the Rear bumper first and then went to the front. So if you're interested in the front bumper skip to page 2.

Parts List:
4x6 steel rectangular tubing 6'
2 - 1x2 solid steel bars 11"
extra 3/16 steel plate
Ruff Stuff DIY Custom Bumper Fabrication Package
2x2 steel rectangular tubing 4'
cobrajoe likes this.

zippome is offline
Sponsored Links
Advertisement

post #2 of 49 (permalink) Old 09-21-2017, 06:37 PM Thread Starter
Registered User

zippome's Avatar

Join Date: Oct 2009
Location: Chandler, AZ
Posts: 3,119
Bronco Info: 88 eddie bauer, 5.8, 351w, 35" tires, k&n cai, full custom 3" exhaust, 4" SAS
iTrader: (1)
Garage
First I had to rip the old one off.

cobrajoe likes this.

zippome is offline
post #3 of 49 (permalink) Old 09-21-2017, 07:30 PM Thread Starter
Registered User

zippome's Avatar

Join Date: Oct 2009
Location: Chandler, AZ
Posts: 3,119
Bronco Info: 88 eddie bauer, 5.8, 351w, 35" tires, k&n cai, full custom 3" exhaust, 4" SAS
iTrader: (1)
Garage

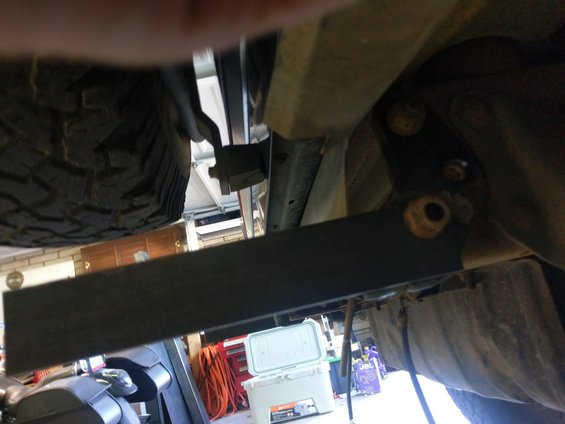

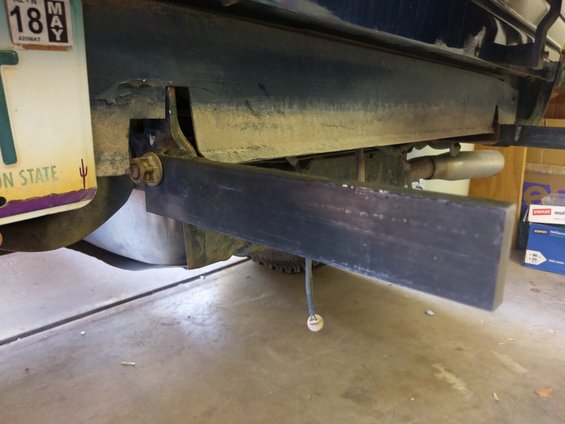

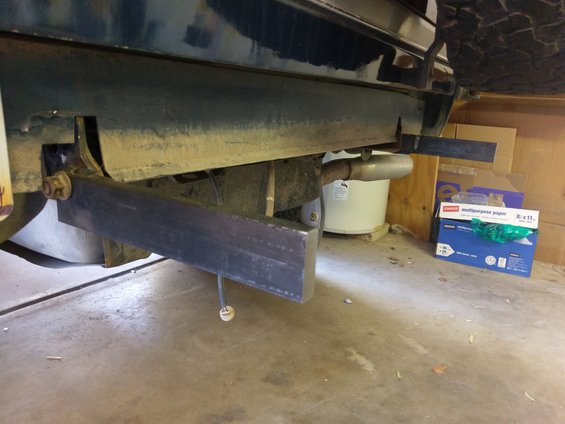

I decided to use the mounts from the old bumper. I cut them off and welded steel bars on. These are going to be my main supports and go all the way through the bumper so I can attach D-rings on them on the other side.

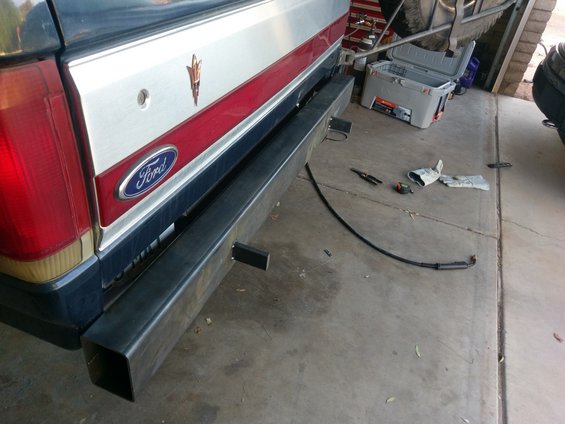

First test fit looks good





I then cut triangles out from either side and bent the bottom up. I then welded them together. Note: the bumper is upside down in the pic.





Drilled some holes and welded in the spindle for the spare tire swing arm.


zippome is offline
Sponsored Links
Advertisement

post #4 of 49 (permalink) Old 09-22-2017, 06:53 AM
Fullsize Member

bonsai dave's Avatar

Join Date: Nov 2006
Location: Odenton Md.
Posts: 826
Bronco Info: 79 with a 460 dana 60's rear 35 spline full spool. front welded with hidro asst. 9" of lift on 44 bo
iTrader: (0)
Garage

for the love of mud. F.O.T.M. July 2015.
bonsai dave is offline
post #5 of 49 (permalink) Old 09-24-2017, 03:46 AM Thread Starter
Registered User

zippome's Avatar

Join Date: Oct 2009
Location: Chandler, AZ
Posts: 3,119
Bronco Info: 88 eddie bauer, 5.8, 351w, 35" tires, k&n cai, full custom 3" exhaust, 4" SAS
iTrader: (1)
Garage
Right now I'm waiting on more parts to come in so I can put in the trailer hitch and make the spare tire swing arm.

More to come...

zippome is offline
post #6 of 49 (permalink) Old 09-25-2017, 10:56 AM
Registered User

phobos2deimos's Avatar

Join Date: Dec 2009
Location: San Diego
Posts: 1,723
Bronco Info: A Very Special '86 302
iTrader: (5)
Subscribed. I like the simplicity of folding in the edges of the tube. I'll probably build mine very similar to how you're doing yours.


Quote:
Originally Posted by TheUnforgiven View Post
you could use your own piss as brake fluid, it would just boil at a lower temperature.
phobos2deimos is offline
post #7 of 49 (permalink) Old 09-25-2017, 01:36 PM
Registered User

Vincent Barron's Avatar

Join Date: Jan 2016
Location: San Diego
Posts: 2
Bronco Info: 1990 5.8 Eddie Bauer
iTrader: (0)
Garage
does the tail gate lower properly or hit the bumper?

Calibud619
Vincent Barron is offline
post #8 of 49 (permalink) Old 09-26-2017, 04:33 AM Thread Starter
Registered User

zippome's Avatar

Join Date: Oct 2009
Location: Chandler, AZ
Posts: 3,119
Bronco Info: 88 eddie bauer, 5.8, 351w, 35" tires, k&n cai, full custom 3" exhaust, 4" SAS
iTrader: (1)
Garage
I checked during the first test fit and it all went fine. I had about an inch gap between the tailgate and the bumper. I haven't checked to see if the tailgate hits the spindle yet. I measured it and it should be good. Just never know for sure.

zippome is offline
post #9 of 49 (permalink) Old 09-28-2017, 03:23 PM Thread Starter
Registered User

zippome's Avatar

Join Date: Oct 2009
Location: Chandler, AZ
Posts: 3,119
Bronco Info: 88 eddie bauer, 5.8, 351w, 35" tires, k&n cai, full custom 3" exhaust, 4" SAS
iTrader: (1)
Garage
Time to add the trailer hitch! I was a little disappointed when I got the receiver in from Ruff Stuff. I knew that 6" was long enough but I didn't realize that the pre drilled holes for the pin were going to be so far back. Guess I'll have to drill my own.


zippome is offline
post #10 of 49 (permalink) Old 09-28-2017, 03:26 PM Thread Starter
Registered User

zippome's Avatar

Join Date: Oct 2009
Location: Chandler, AZ
Posts: 3,119
Bronco Info: 88 eddie bauer, 5.8, 351w, 35" tires, k&n cai, full custom 3" exhaust, 4" SAS
iTrader: (1)
Garage
I then cut out the square holes on both sides of the bumper and did a test fit. Looks Good!




zippome is offline
post #11 of 49 (permalink) Old 09-28-2017, 03:28 PM Thread Starter
Registered User

zippome's Avatar

Join Date: Oct 2009
Location: Chandler, AZ
Posts: 3,119
Bronco Info: 88 eddie bauer, 5.8, 351w, 35" tires, k&n cai, full custom 3" exhaust, 4" SAS
iTrader: (1)
Garage
Time to weld it in place. I'm not a good welder so be easy on my welders...



zippome is offline
post #12 of 49 (permalink) Old 09-28-2017, 03:29 PM Thread Starter
Registered User

zippome's Avatar

Join Date: Oct 2009
Location: Chandler, AZ
Posts: 3,119
Bronco Info: 88 eddie bauer, 5.8, 351w, 35" tires, k&n cai, full custom 3" exhaust, 4" SAS
iTrader: (1)
Garage
All done and there is just enough room to get the pin in and out. Exactly how I wanted it.

SRWillis likes this.

zippome is offline
post #13 of 49 (permalink) Old 09-28-2017, 03:31 PM Thread Starter
Registered User

zippome's Avatar

Join Date: Oct 2009
Location: Chandler, AZ
Posts: 3,119
Bronco Info: 88 eddie bauer, 5.8, 351w, 35" tires, k&n cai, full custom 3" exhaust, 4" SAS
iTrader: (1)
Garage
Time to figure out how I want to do the swing arm. I need to do some research and think about it. And suggestions let me know!

zippome is offline
post #14 of 49 (permalink) Old 09-28-2017, 08:25 PM Thread Starter
Registered User

zippome's Avatar

Join Date: Oct 2009
Location: Chandler, AZ
Posts: 3,119
Bronco Info: 88 eddie bauer, 5.8, 351w, 35" tires, k&n cai, full custom 3" exhaust, 4" SAS
iTrader: (1)
Garage
Well, I figured out what I wanted to do with the swing arm. Went out and picked up some metal and tried to finish before dinner. I only measured once instead of twice, and it shows...
I already fully welded everything. But I have an idea of how to fix it.


zippome is offline
post #15 of 49 (permalink) Old 09-30-2017, 06:10 PM Thread Starter
Registered User

zippome's Avatar

Join Date: Oct 2009
Location: Chandler, AZ
Posts: 3,119
Bronco Info: 88 eddie bauer, 5.8, 351w, 35" tires, k&n cai, full custom 3" exhaust, 4" SAS
iTrader: (1)
Garage
I cut, bent, and welded the are so now it's level.



Then I attached the spare tire mount



zippome is offline
post #16 of 49 (permalink) Old 09-30-2017, 06:12 PM Thread Starter
Registered User

zippome's Avatar

Join Date: Oct 2009
Location: Chandler, AZ
Posts: 3,119
Bronco Info: 88 eddie bauer, 5.8, 351w, 35" tires, k&n cai, full custom 3" exhaust, 4" SAS
iTrader: (1)
Garage
Put it back on the Bronco and checked all my measurements. Looks Good!




SRWillis and biggum like this.

zippome is offline
post #17 of 49 (permalink) Old 09-30-2017, 06:14 PM Thread Starter
Registered User

zippome's Avatar

Join Date: Oct 2009
Location: Chandler, AZ
Posts: 3,119
Bronco Info: 88 eddie bauer, 5.8, 351w, 35" tires, k&n cai, full custom 3" exhaust, 4" SAS
iTrader: (1)
Garage
One mistake I made. I forgot that the tail gate isn't straight. It bows out in the middle. I could cut and angle out the swing arm but I'll just leave it. Doesn't bother me that bad.


zippome is offline
post #18 of 49 (permalink) Old 09-30-2017, 06:17 PM Thread Starter
Registered User

zippome's Avatar

Join Date: Oct 2009
Location: Chandler, AZ
Posts: 3,119
Bronco Info: 88 eddie bauer, 5.8, 351w, 35" tires, k&n cai, full custom 3" exhaust, 4" SAS
iTrader: (1)
Garage
This is how it looks now. List of things that are left:

1. I still need to attach my license plate. I want to try and use the stock lights but I'm not sure how yet.
2. Figure out where and how I'm going to mount my high jack.
3. Get some rubber bump stops.

ANGELO and SRWillis like this.

zippome is offline
post #19 of 49 (permalink) Old 10-13-2017, 01:21 AM Thread Starter
Registered User

zippome's Avatar

Join Date: Oct 2009
Location: Chandler, AZ
Posts: 3,119
Bronco Info: 88 eddie bauer, 5.8, 351w, 35" tires, k&n cai, full custom 3" exhaust, 4" SAS
iTrader: (1)
Garage
So I realized very quickly that putting the latch for the spare tire carrier on top of the bumper was a bad idea. Can't open the tail gate... So I cut all that off and went with my original plan of just using a wing nut.



zippome is offline
post #20 of 49 (permalink) Old 10-13-2017, 01:22 AM Thread Starter
Registered User

zippome's Avatar

Join Date: Oct 2009
Location: Chandler, AZ
Posts: 3,119
Bronco Info: 88 eddie bauer, 5.8, 351w, 35" tires, k&n cai, full custom 3" exhaust, 4" SAS
iTrader: (1)
Garage
I also relocated my license plate and used the original lights. What do you think?
