post #21 of 45 (permalink) Old 11-20-2017, 06:46 PM Thread Starter
that's a lot of oil

blazenXLT's Avatar

Join Date: Mar 2004
Location: North of Baltimore
Posts: 766
Bronco Info: 1994 XLT 351, 4 inches and 33's
iTrader: (2)
Garage
Well at least beer is always a positive outcome For sure getting the lines off the back of the engine is the hardest part. I found the plastic disconnect tools to work best, and if I remember correctly, the two lines are different sizes, so you'll need different disconnects. I used a ladder and leaned a hand on the engine with a pad between my hips and the side of the truck. Honestly, having the right tool is key or you'll spend an hour hunched over and that sucks.

Here's where I got the details on the tranny pan. A drain plug is a great upgrade IMO.
http://www.fullsizebronco.com/forum/...er-change.html

2002 BMW 325i Touring - Daily : 2014 Fiesta ST - Sold : 1994 Ford Bronco - work in progress : 1983 MB 240D - missed : 2002 BMW M3 - track toy : 2012 VW TDI Jetta - "clean" diesel - sold to VW : 2017 VW Jetta
blazenXLT is offline
Sponsored Links
Advertisement

post #22 of 45 (permalink) Old 11-21-2017, 01:30 PM
Sayulita Layta!

stan the man's Avatar

Join Date: Nov 2006
Location: San Jose, CA.
Posts: 6,740
Bronco Info: 1996 Ford Blazer. Lifted, locked, and loaded. Where's the Zombies?
iTrader: (11)
Quote:
Originally Posted by blazenXLT View Post
Well at least beer is always a positive outcome For sure getting the lines off the back of the engine is the hardest part. I found the plastic disconnect tools to work best, and if I remember correctly, the two lines are different sizes, so you'll need different disconnects. I used a ladder and leaned a hand on the engine with a pad between my hips and the side of the truck. Honestly, having the right tool is key or you'll spend an hour hunched over and that sucks.

Here's where I got the details on the tranny pan. A drain plug is a great upgrade IMO.
http://www.fullsizebronco.com/forum/...er-change.html
Perfect, thanks!



California Bay Area off road UC4x4.com
stan the man is offline
post #23 of 45 (permalink) Old 10-31-2018, 02:25 PM Thread Starter
that's a lot of oil

blazenXLT's Avatar

Join Date: Mar 2004
Location: North of Baltimore
Posts: 766
Bronco Info: 1994 XLT 351, 4 inches and 33's
iTrader: (2)
Garage
Finally some more work done! I jumped in to more transmission work this past week.

I picked up a remote start trigger and got it set-up. I also pulled the main wire to the distributor so the engine wouldn't start, but just bump over.


Here the remote underneath the car


It only took 4 bumps to get the drain to the torque converter lined up (maybe I was lucky)


I let it drain for an hour or so


Then I loosened the pan and let it drain out the edges for a bit. Then removed all the bolts and used a jack to slowly lower the pan. All in all it was pretty easy, although a bit messy. Save up cardboard for this job.




The bottom of the trans looks good, but there was some gunk in the old pan. I'm not sure what's normal to see and I also can't say when this fluid was changed, so who knows.

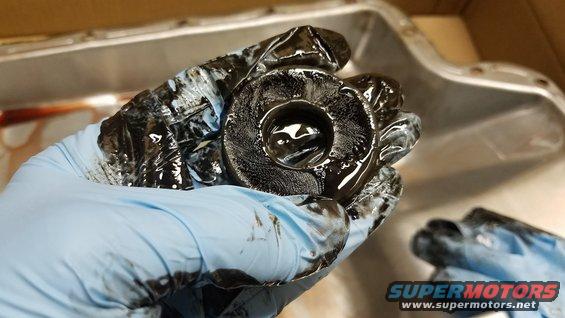

The magnet was real gross

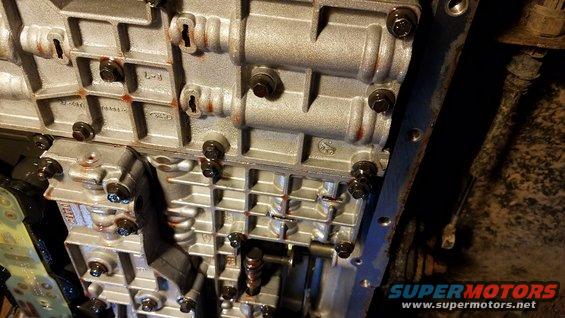

Here the trans minus the pan and old filter




Next steps will be to put on the new filter and pan, then get to work on the new lines and cooler.

2002 BMW 325i Touring - Daily : 2014 Fiesta ST - Sold : 1994 Ford Bronco - work in progress : 1983 MB 240D - missed : 2002 BMW M3 - track toy : 2012 VW TDI Jetta - "clean" diesel - sold to VW : 2017 VW Jetta
blazenXLT is offline
Sponsored Links
Advertisement

post #24 of 45 (permalink) Old 11-04-2018, 02:48 PM Thread Starter
that's a lot of oil

blazenXLT's Avatar

Join Date: Mar 2004
Location: North of Baltimore
Posts: 766
Bronco Info: 1994 XLT 351, 4 inches and 33's
iTrader: (2)
Garage
Got the new filter in along with the filter bracket that many install. I've never had an issue with the filter moving, but seems like cheap insurance.


I also removed the old trans cooler. First the hard lines so it could be tilted and drained.


Here she is, pretty rough looking after 24 years of service.

2002 BMW 325i Touring - Daily : 2014 Fiesta ST - Sold : 1994 Ford Bronco - work in progress : 1983 MB 240D - missed : 2002 BMW M3 - track toy : 2012 VW TDI Jetta - "clean" diesel - sold to VW : 2017 VW Jetta
blazenXLT is offline
post #25 of 45 (permalink) Old 11-04-2018, 05:45 PM
Thread Killa

jowens1126's Avatar

Join Date: Jan 2011
Location: Orlando, FL
Posts: 9,532
Bronco Info: 1994 Bronco Eddie Bauer edition, 302 MAF, E4OD
iTrader: (2)
looking good. You can flush out the trans lines with brake kleen. Make sure you have the bolt on holding bracket on the trans filter.

I dont know if you have done it yet, but I would change out every bit of the small hard plastic vacuum lines under the hood. I used silicone lines. They work great.

1994 EB Bronco, 302 MAF, E4OD, BW1356, Slightly Customized Interior
"Demanding something free on top of a discount is just being a Democrat. - Steve83"

My Build Thread - http://www.fullsizebronco.com/forum/...d.php?t=191067
jowens1126 is offline
post #26 of 45 (permalink) Old 11-04-2018, 06:23 PM Thread Starter
that's a lot of oil

blazenXLT's Avatar

Join Date: Mar 2004
Location: North of Baltimore
Posts: 766
Bronco Info: 1994 XLT 351, 4 inches and 33's
iTrader: (2)
Garage
Quote:
Originally Posted by jowens1126 View Post
looking good. You can flush out the trans lines with brake kleen. Make sure you have the bolt on holding bracket on the trans filter.

I dont know if you have done it yet, but I would change out every bit of the small hard plastic vacuum lines under the hood. I used silicone lines. They work great.
I'm replacing all the lines, so no need to flush, but it's good to know that's an option. And the bracket is bolted on with the filter.

Good call on the vacuum lines, I'll add it to my list. Is there a kit or did you make your own?

2002 BMW 325i Touring - Daily : 2014 Fiesta ST - Sold : 1994 Ford Bronco - work in progress : 1983 MB 240D - missed : 2002 BMW M3 - track toy : 2012 VW TDI Jetta - "clean" diesel - sold to VW : 2017 VW Jetta
blazenXLT is offline
post #27 of 45 (permalink) Old 11-04-2018, 09:06 PM
Registered User

EllieMae94's Avatar

Join Date: Jan 2017
Location: Vichy, MO
Posts: 43
Bronco Info: '94 F-150, 351w swap, 4.10
iTrader: (0)
Check out this link on silicone vacuum lines. I did this about a year ago and can't be any happier with it!

https://www.fullsizebronco.com/forum...es-rubber.html
EllieMae94 is offline
post #28 of 45 (permalink) Old 11-06-2018, 10:45 PM
Thread Killa

jowens1126's Avatar

Join Date: Jan 2011
Location: Orlando, FL
Posts: 9,532
Bronco Info: 1994 Bronco Eddie Bauer edition, 302 MAF, E4OD
iTrader: (2)
it took me about 20 feet of line. i got 25 to be safe. The parts stores sell a little kit of vacuum fittings, you will need one. Where the 3 vacuum solenoids are for the EGR, TAB, TAD, they share a common vacuum source, so you have to use a "T" on the first and second valves. Those came in very handy.



The other end of those lines is not the simplest thing to get to. Its on the very back of the motor.



Also some of the lines will have a vacuum line connector on the back of the motor. You will want to completely get rid of that. Study your vacuum Diagram on your core support. Once you completely understand it, replace one tube at a time.

Complete vacuum harness.

1994 EB Bronco, 302 MAF, E4OD, BW1356, Slightly Customized Interior
"Demanding something free on top of a discount is just being a Democrat. - Steve83"

My Build Thread - http://www.fullsizebronco.com/forum/...d.php?t=191067

Last edited by jowens1126; 11-06-2018 at 10:49 PM.
jowens1126 is offline
post #29 of 45 (permalink) Old 11-07-2018, 07:06 AM Thread Starter
that's a lot of oil

blazenXLT's Avatar

Join Date: Mar 2004
Location: North of Baltimore
Posts: 766
Bronco Info: 1994 XLT 351, 4 inches and 33's
iTrader: (2)
Garage
Thanks for the pics, that's really helpful. Not looking forward to getting at everything on the back of the engine, but it needs done.

2002 BMW 325i Touring - Daily : 2014 Fiesta ST - Sold : 1994 Ford Bronco - work in progress : 1983 MB 240D - missed : 2002 BMW M3 - track toy : 2012 VW TDI Jetta - "clean" diesel - sold to VW : 2017 VW Jetta
blazenXLT is offline
post #30 of 45 (permalink) Old 11-30-2018, 04:52 PM Thread Starter
that's a lot of oil

blazenXLT's Avatar

Join Date: Mar 2004
Location: North of Baltimore
Posts: 766
Bronco Info: 1994 XLT 351, 4 inches and 33's
iTrader: (2)
Garage
New pan is officially in. I used new hardware which I ended up having to order. I couldn't find anything similar locally and ford wanted like $4 per bolt for the OE part (LOL, no). I also started the process for removing the old hard lines from the trans. I think my biggest challenge will be routing the new lines. Everything is so damn close to hot exhaust.


2002 BMW 325i Touring - Daily : 2014 Fiesta ST - Sold : 1994 Ford Bronco - work in progress : 1983 MB 240D - missed : 2002 BMW M3 - track toy : 2012 VW TDI Jetta - "clean" diesel - sold to VW : 2017 VW Jetta
blazenXLT is offline
post #31 of 45 (permalink) Old 01-01-2019, 07:33 PM Thread Starter
that's a lot of oil

blazenXLT's Avatar

Join Date: Mar 2004
Location: North of Baltimore
Posts: 766
Bronco Info: 1994 XLT 351, 4 inches and 33's
iTrader: (2)
Garage
I was able to spend some time under the truck today and think about the new cooler line install. I think I'm going to go ahead and keep the stock lines, at least until in front of the axle. They're in good shape and it looks like a pain to try and fit my new lines in around the exhaust. In front of the axle I'll tap into the hard lines and add the external filter and all the routing to the rad and cooler.
I'd also planned on adding a thermostat, but I'm not sure I'll have the room, so that may be skipped. I'll still throw in the temp gauge, just need to finalize where I'll tap in for that. There's a few threads on that topic, but opinions are like a-holes and the advice seems to vary.

2002 BMW 325i Touring - Daily : 2014 Fiesta ST - Sold : 1994 Ford Bronco - work in progress : 1983 MB 240D - missed : 2002 BMW M3 - track toy : 2012 VW TDI Jetta - "clean" diesel - sold to VW : 2017 VW Jetta
blazenXLT is offline
post #32 of 45 (permalink) Old 01-02-2019, 10:45 AM
FSM Lifetime

dash_cam's Avatar

Join Date: Nov 2014
Location: dallas tx
Posts: 3,129
Bronco Info: 1996 EB, 351w, stock-ish. 1981 custom 351m, long gone.
iTrader: (4)
Garage
are you talking about a temp gauge for the coolant or the transmission?
dash_cam is offline
post #33 of 45 (permalink) Old 01-02-2019, 12:22 PM Thread Starter
that's a lot of oil

blazenXLT's Avatar

Join Date: Mar 2004
Location: North of Baltimore
Posts: 766
Bronco Info: 1994 XLT 351, 4 inches and 33's
iTrader: (2)
Garage
Quote:
Originally Posted by dash_cam View Post
are you talking about a temp gauge for the coolant or the transmission?
Trans fluid temp. I've seen some put the temp sender right into the trans, some on the line exiting the trans, some on the return line.

2002 BMW 325i Touring - Daily : 2014 Fiesta ST - Sold : 1994 Ford Bronco - work in progress : 1983 MB 240D - missed : 2002 BMW M3 - track toy : 2012 VW TDI Jetta - "clean" diesel - sold to VW : 2017 VW Jetta
blazenXLT is offline
post #34 of 45 (permalink) Old 01-02-2019, 03:05 PM
FSM Lifetime

dash_cam's Avatar

Join Date: Nov 2014
Location: dallas tx
Posts: 3,129
Bronco Info: 1996 EB, 351w, stock-ish. 1981 custom 351m, long gone.
iTrader: (4)
Garage
yes, the E4OD definitely has a port on the side you can use. i was adding a remote filter so decided i'd use the filter mount for my sensor. that way i could get the temp coming out of the transmission.

https://www.fullsizebronco.com/forum...on-filter.html

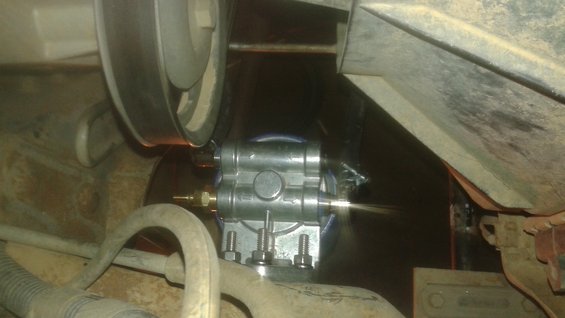

the filter mount with the temp sensor installed but not wired



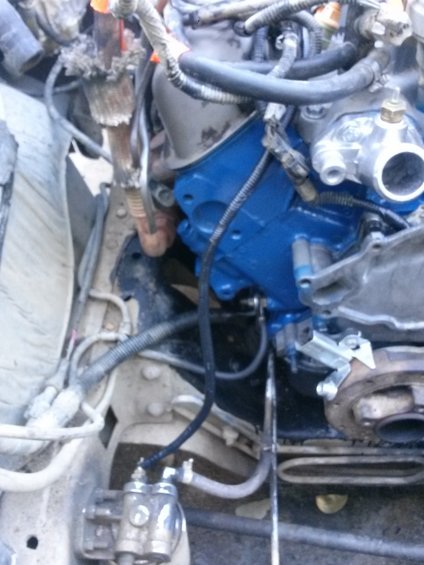

here is what it looked like once installed
dash_cam is offline
post #35 of 45 (permalink) Old 01-02-2019, 06:48 PM Thread Starter
that's a lot of oil

blazenXLT's Avatar

Join Date: Mar 2004
Location: North of Baltimore
Posts: 766
Bronco Info: 1994 XLT 351, 4 inches and 33's
iTrader: (2)
Garage
Thanks for the link to your thread, the pics are helpful. I'm using a Derale mount also, but mine has the ports on top and doesn't have the extra spot for the temp sender. I should still be able to make it work. What type of temps do you see?

2002 BMW 325i Touring - Daily : 2014 Fiesta ST - Sold : 1994 Ford Bronco - work in progress : 1983 MB 240D - missed : 2002 BMW M3 - track toy : 2012 VW TDI Jetta - "clean" diesel - sold to VW : 2017 VW Jetta
blazenXLT is offline
post #36 of 45 (permalink) Old 09-01-2019, 05:16 PM Thread Starter
that's a lot of oil

blazenXLT's Avatar

Join Date: Mar 2004
Location: North of Baltimore
Posts: 766
Bronco Info: 1994 XLT 351, 4 inches and 33's
iTrader: (2)
Garage
Now that the track season is winding down, I'm less distracted by the M3, so time to get back to the Bronco. The goal was to finish up the new trans cooler lines, but that lead me to the front of the truck where I'd been putting off dealing with the core support. In the end, I don't see any reason to finish and mount the new cooler, only to have to break it all back down again. So, core support, here we go!
I think I have the pretty typically rot, at least in the mid-atlantic and rust belt.



So today I removed the battery, front bumper, grill, battery tray, drained the cooling system and took out to upper and lower radiator hoses. Since I'm taking it all apart I'm going to swap most of the cooling system at the same time. To be continued...

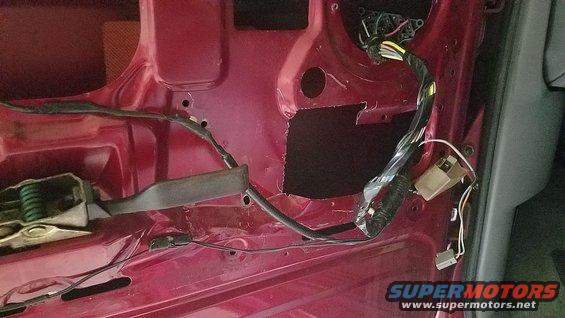

Earlier this week I took care of the drivers side window, which hasn't worked in many years. I'd already ordered a new regulator and motor, it was just a matter of getting the old stuff out. Turns out that's a real pain. Of course the regulator is held in with rivets... Like many other write ups and videos of this process, I ended up cutting out some unnecessary metal. This is before things were cleaned up, but you get the point

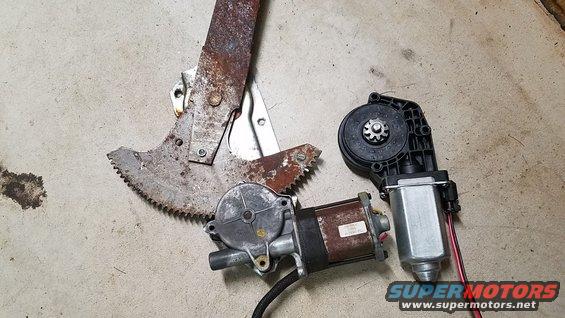

And here's the old stuff next to the new motor



I put the new regulator in with screws, rivets seemed not worth the effort. The window works great now
cobrajoe and dash_cam like this.

2002 BMW 325i Touring - Daily : 2014 Fiesta ST - Sold : 1994 Ford Bronco - work in progress : 1983 MB 240D - missed : 2002 BMW M3 - track toy : 2012 VW TDI Jetta - "clean" diesel - sold to VW : 2017 VW Jetta
blazenXLT is offline
post #37 of 45 (permalink) Old 09-01-2019, 06:04 PM Thread Starter
that's a lot of oil

blazenXLT's Avatar

Join Date: Mar 2004
Location: North of Baltimore
Posts: 766
Bronco Info: 1994 XLT 351, 4 inches and 33's
iTrader: (2)
Garage

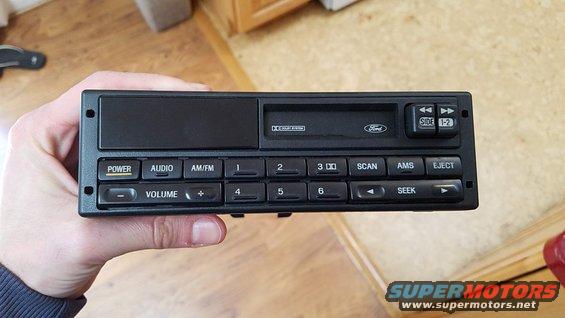

Forgot to add this a few months ago, but I ebay'd a stock radio


2002 BMW 325i Touring - Daily : 2014 Fiesta ST - Sold : 1994 Ford Bronco - work in progress : 1983 MB 240D - missed : 2002 BMW M3 - track toy : 2012 VW TDI Jetta - "clean" diesel - sold to VW : 2017 VW Jetta
blazenXLT is offline
post #38 of 45 (permalink) Old 09-03-2019, 08:45 PM Thread Starter
that's a lot of oil

blazenXLT's Avatar

Join Date: Mar 2004
Location: North of Baltimore
Posts: 766
Bronco Info: 1994 XLT 351, 4 inches and 33's
iTrader: (2)
Garage
Things are coming apart!



Parts are ordered and on the way.

2002 BMW 325i Touring - Daily : 2014 Fiesta ST - Sold : 1994 Ford Bronco - work in progress : 1983 MB 240D - missed : 2002 BMW M3 - track toy : 2012 VW TDI Jetta - "clean" diesel - sold to VW : 2017 VW Jetta
blazenXLT is offline
post #39 of 45 (permalink) Old 09-05-2019, 04:33 PM Thread Starter
that's a lot of oil

blazenXLT's Avatar

Join Date: Mar 2004
Location: North of Baltimore
Posts: 766
Bronco Info: 1994 XLT 351, 4 inches and 33's
iTrader: (2)
Garage
New radiator has arrived, looks to be a good fit. I test fit my hardware for the trans fluid and it all worked fine.

Sent from my SM-G930V using Tapatalk
cobrajoe likes this.

2002 BMW 325i Touring - Daily : 2014 Fiesta ST - Sold : 1994 Ford Bronco - work in progress : 1983 MB 240D - missed : 2002 BMW M3 - track toy : 2012 VW TDI Jetta - "clean" diesel - sold to VW : 2017 VW Jetta
blazenXLT is offline
post #40 of 45 (permalink) Old 09-07-2019, 02:31 PM Thread Starter
that's a lot of oil

blazenXLT's Avatar

Join Date: Mar 2004
Location: North of Baltimore
Posts: 766
Bronco Info: 1994 XLT 351, 4 inches and 33's
iTrader: (2)
Garage
A delivery almost everyday. Today was the new fan clutch, belt, hoses, core support and water pump.

Sent from my SM-G930V using Tapatalk
d_rock and Want2BS8ed like this.

2002 BMW 325i Touring - Daily : 2014 Fiesta ST - Sold : 1994 Ford Bronco - work in progress : 1983 MB 240D - missed : 2002 BMW M3 - track toy : 2012 VW TDI Jetta - "clean" diesel - sold to VW : 2017 VW Jetta
blazenXLT is offline
Sponsored Links
Advertisement

Reply

  Ford Bronco Forum > Bronco Discussions > 78 - 96 Build Forum....Builds only

Quick Reply
Message:
Options

Register Now



In order to be able to post messages on the Ford Bronco Forum forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.

User Name:
Password
Please enter a password for your user account. Note that passwords are case-sensitive.

Password:


Confirm Password:
Email Address
Please enter a valid email address for yourself. DO NOT USE Gmail.com accounts. If you only have a Gmail.com email please contact the administrator here

Email Address:
OR

Log-in










Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page
Display Modes
Linear Mode Linear Mode



Posting Rules
You may post new threads
You may post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On


For the best viewing experience please update your browser to Google Chrome
