Hey guys/gals. This project has been along time (4 years) coming, but is finally here! Bear with me as I will be updating this site as the project comes along. I will be getting as much of the restoration done as possible from September 25-October 1st. Pray for good weather!

If you have any questions, please feel free to PM me.

The Project:

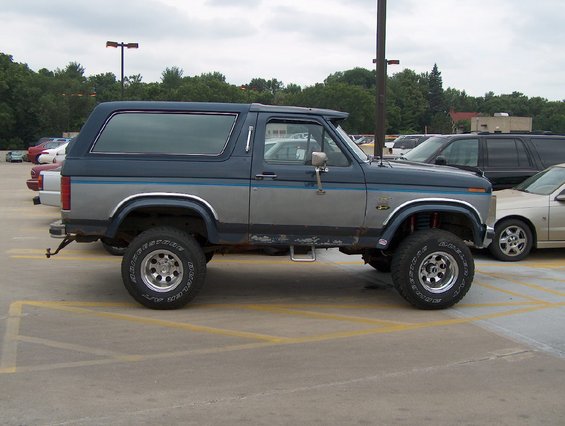

1986 Full Size XLT - I purchased this truck from a guy in Detriot Lakes Minnesota. It is orginally from Alaska.



Notice the beautiful stainless steel body armor?

The Plan:
I have purchased a majority of the replacement body parts through Wheelers Autobody Supply. Everything I have purchased so far I have been VERY satisfied with. As Sixlitre did, I plan on "gluing" the rear quarters on (more to follow later, when I get to this step). Locally you can give Ray a call at 507-281-3450. In fact I just recieved my tailgate last week and could not be more happy!




Since I do not have access to a fancy paint shop (and becausee I like to save money) I have opted to coat the Bronco in all Durabak. Durabak™ is a specially formulated polyurethane slip-resistant concrete floor coating, truck bed liners, marine deck and safety coating which comes in many colors. Many have done this but mine will be slightly different. A rough coat will be applied to all of the inner paneling (ie. doors, fenders, tailgate etc). The color I choose was sandstone. The rough will also be applied to follow the lower bodylines (approx. 6" up from the bottom lip) of the truck as well as th fender flares. All door jambs and the top will be sandstone (rough coat). The remainder will be done in Durabak Smooth. For more inforamtion on Durabak products follow this link www.durabakcompany.com or give Jake a call at 303-690-7190.



Prior to the Durabak application I will coat all of the "rust-prone" areas with POR-15 (ie. door jambs, tailgate area, cab and fenders).

POR15 is a rust-preventive paint like coating, designed for application directly on rusted or seasoned metal surfaces. It dries to an rock-hard, non-porous finish that won't chip, crack, or peel, and it prevents rust from recurring by protecting metal from further exposure to moisture. I ordered 2 of their starter kits for this project ($16.50/ set) http://www.stoprust.net://

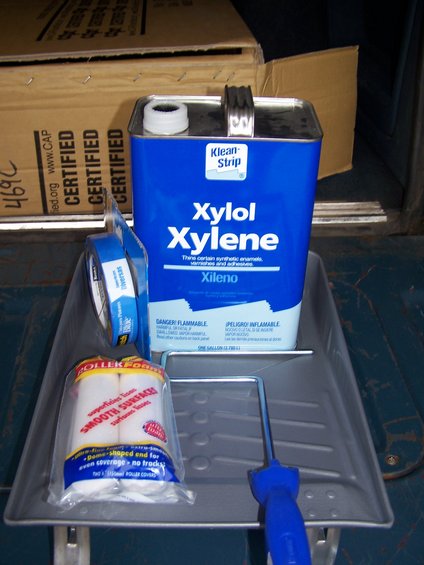

You will need the following supplies for applying the Durabak. Note: Jake will send you blue rollers to apply the rough Durabak, but he suggested buying a smooth applicating roller to apply the smooth. The other option for both types is of course to spray the Durabak. Xylene (Xylol) is used to thin Durabak if you choose to spray. A gun with 1/4" spray nozzle is recommended. Xylene is also used to prep the surface, clean up spills and prevent your rollers from drying out.


I will try to take you on a step by step as it occurs. My first step will be to remove and rough coat the top and POR15 and under coat the inner panels (sandstone). After the rough coating I will coat the outer panels (smooth black), hood and cab. As Sixlitre suggested I will tackle the removal of the Rear fenders. Please stay tuned as this project progresses! I will supply photos and how to's as it goes.

09/25/2006
The first thing I did today was to remove the steps and fender flares. I discovered alot of rust so it was a good thing to get started on this project sooner rather than later.

This fender is in good shape compared to the Driver-side rear...looks like I will be fabbing a wheel well!

I decided it was a good day to begin the Durabak process (almost 70 degrees and sunny today with a slight breeze...low humidity) beginning with the top, under coating the rear fenders, new rocker panels, tailgate and front rock guard. With all parts I followed the following process (make sure to wear mask and gloves for application and make sure there is proper ventilation):
1) I started off by taping those areas where I did not want the durabak to cure to. This is the time-consuming part! In case you accidently get some in an area you did not intend, use zylol to clean it up.


2) Even though Durabak sticks well to painted surfaces, sanding or scuffing the surface will give the liner a little "tooth". I used a palm sander and 150 grit paper.


3) As with any surface during the painting process, the surface where the Durabak will be applied needs to be cleaned. Zylol will be used to clean the surface.

4) Mixing Durabak solution thoroughly will ensure that the rubber granules are evenly suspended (DO NOT SHAKE). Use a paint stick or drill and paint mixer. I mixed the stuff everytime I needed to pour more in the paint pan.

5) Durabak (rough coating) requires a special stipple roller for application. Jake will send you these with your order. The roller suspends the granules during application so they are evenly applied throughout. Zylol can be used to clean the brush/roller between applications. IN those hard to reach areas a regular paint brush can be used...I used the dabbing method.
1st coat

2nd coat


Fender 1st Coat - (undercoating only)
My objective was to get all of the undercoating completed prior to rolling on the Black Smooth Durabak.

Fender complete - (Undercoating only)

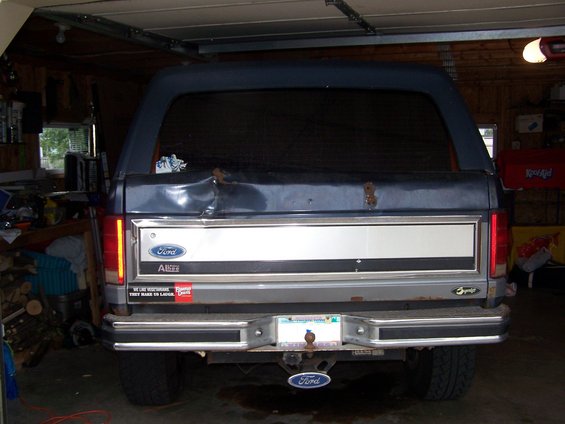

Tailgate 1st coat - (Undercoating only)


6) Curing time varies depending on humidity and temperature (usually an hour). As soon as the first coat is no longer tacky, the second coat can be applied. The masking tape should be removed before it cures to the surface. Full cure is achieved in 2-4 days. I went out this morning to see how everything had set up over night. VERY impressed with the rock hard results!!!

More to come today (stay tuned)! My goal is to rough coat the back-sides of the rear fenders, and front fenders. The doors will require some POR-15 prior to coating. I will try also to get to the smooth coating today as well!

09/26/2006 & 09/27/2006
Tuesday I got a chance to rough coat the inner rear fenders and completed the tailgate (rough-coated). I also completed the rough coat on the front fenders. Regarding the rear fenders and rough coating: you want to make sure that you DO NOT rough-coat the GLUE POINTS. The glue will have a tough time adhering to the metal if you do. If you accidently do, use a wire brush to take it off. I preplanned and taped accordingly but found one point that I accidently painted.




I was able to Smooth-coat the outer rear fenders on Wednesday. I used a super-glide roller to apply (we'll see how it turns out in the a.m.). I hope to complete the front fenders and tailgate on Thursday. I was impressed with the smooth Durabak...a small amount will take you much further than the rough coat.

One lesson learned I should have done the Smooth coat first to avoid the time consuming process of staying between the lines:



Between drying times I was also able to POR 15 the Cab, prep the rockers and POR 15 the doors. The starter package comes with all of the directions you will need. I will summerize (make sure to wear gloves and mask when using any of these products and have proper ventilation):

1) Sand/wire brush the area you wish to apply POR 15 to...get the rust scale off! I used a power sprayer to blow all the crud off prior to the next step.

2) Marine Clean is included with the package. Marine clean should be diluted with water 1:1. Spray Marine Clean on the area and wipe off.

3) Next apply Metal Ready. The area should be soaked for a period of 15 minutes.
4) Wipe off excess Metal Ready. and make sure areas is dry for the POR 15 paint application. Metal Ready will leave a zinc like residue.
5) Apply POR 15 paint. The paint is nice and thick and will fill in those cracks in your rain gutters. Prior to Durabaking this area I'll put a little calk in the cracks.
6) If you plan to overcoat your POR 15 job an important step is to sand the POR15 with 400-600 grit paper and give it a light primer spray prior to applying overcoat.



Door POR 15 Prep

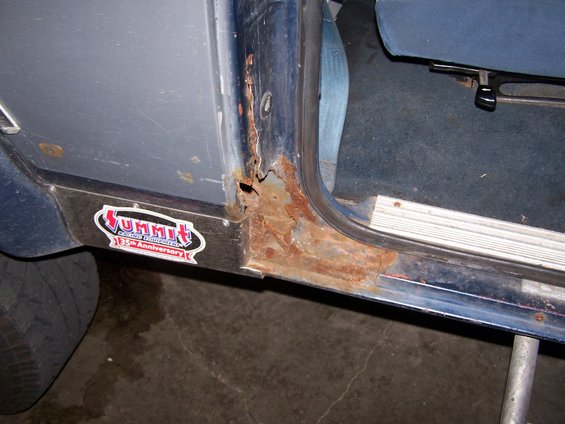

The red door was in pretty good shape and did not require a full POR 15 coat. The black door had very minor surface rust and so I decided to POR 15 the entire door. I was VERY surprised as to the coverage I got with such a little can (2 doors and the cab).




Rocker Prep - I did not get any further in this step since it will be better to first pull the carpet and then complete. Notice my arm...the power sprayer sometimes not your friend!


That's it for today. The objective Thursday is to Smooth-coat the tailgate, front fenders (inner/outer), cab, doors and inner front fenders. It would be nice to get the hood and in front of the windshield done...we'll see. Stay tuned!

09/28/2006
I had some running around to do today, so I did'nt get done what I wanted. Tomorrow's a new day! Someone had asked about rockers. Here is a pic of them completed. Sixlitre suggested popping the old lips out prior to new installation. I plan on doing that since it will be easier to POR 15 that area as well as apply the liner. Here are the rockers:


I was able to coat the inner rear front fender and outer front fender. One front fender left to complete:



I was also able to smooth coat the cab of the truck...I did not take pictures of this. Will probably give it one more coat in the end.

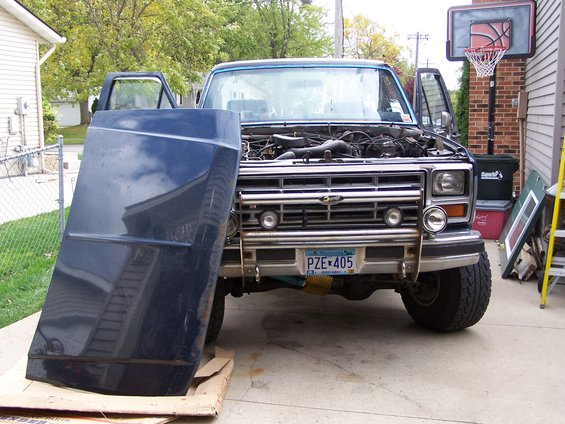

I pulled the hood off and cowel...now just need to sand and their ready for paint.


I started pulling the bolts for the front fender in anticipation of installing the new one on Friday. Hopefully that will happen! There are a number of places to pull bolts from before the fender will come out. Here are a few pics of the engine bay:




09/29/2006
Many interuptions again today. I mainly did alot of prep work for the upcoming days. However, I did manage to finish the tailgate off and progressed to a 1st and 2nd coat on the driverside door. While the door and tailgate were drying I was able to sand/grind on the hood and the passenger side door. Next I plan to sand the cowl so that I can paint all parts in one session. If possible I will try to undercoat the lower half (rough sand) and inner doors



Lessons learned:
1) If you plan to overcoat your POR 15 job an important step is to sand the POR15 with 400-600 grit paper and give it a light primer spray. I made sure to read the instructions AGAIN prior to slapping on a coat of liner on the doors.
2) Again...if you plan to coat any painted surface (non-rusted) with POR 15 you must sand (thoroughly) and use the metal ready...otherwise the POR 15 will peal off. I identified one area in the door pillar area that I did not sand well enough. I will wire brush that area and start over.
3) It will be very important to get all of the painting done before cooler weather sets in. Although I can always do the tear down and assembly in cold weather (I tore the transmission out last winter in -8 degree weather...no heat in the garage) I will not be able to do painting or gluing.

Later for now! Updates to come!

10/12/2006
It has been a few weeks since I have been able to do any work on the truck due to my wife's illness. It gave me time to think as well as reflect on the progress that I have made. And even though the ultra-smooth rollers laid down a good 2-3 coats of paint (Smooth Black Durabak), I was not thrilled with streaks the rollers left after the panels had dried. On Sunday I decided it was a worhty investment to purchase a spray gun capable of spraying heavy materials such as Durabak. At $45 it was the best investment you could ever make when doing a project like this. Upon purchase...I dreamed of MANY ways to use this gun and make it an even better investment. If you plan on a Durabak finish like this HIGHLY recomend this purchase...it will save you so much time in the end!

The Gun:


Review the specifications on the packaging in this picture (PSI, CFM, Etc.)
It is recommended by the Durabak Company that you use a gun capable of spraying heavy materials. Should be sprayed at between 45-65 psi. In specific regard to the smooth Durabak they recommend you also THIN the material 10%. My particular gun came with a 1 Liter capacity cup. On first use, I decided to use only 500 mLs of Durabak. To thin 10% that means adding 50 mLs of Zylene (Zylol) to Durabak to get a total volume of 550 mLs. This left me plenty of room to thin/thicken as needed inside the cup. Many have recommended thinning by the gallon, unfortunatly I had already taken out an unknwon amount out of a fresh gallon. It is helpful to get a measuering cup for the zylene and a measuering cup for the Durabak along with paint sticks.



The Process:
1) Tape off/mask any materials you do not want painted.
2) Be sure to sweep out your painting area thoroughly (I used my compressor air adapter and a broom to clean the garage floor).
3) Hang your plastic and setup your work bench/area.
4) Wet down the area in which you will be painting. I used a mist attachment on the garden hose and sprayed the work bench (very slightly) and the garage floor. This will significantly trap any dust particles kicked up in the spraying process and will do a great job of eliminating them from getting on the materials being painted.

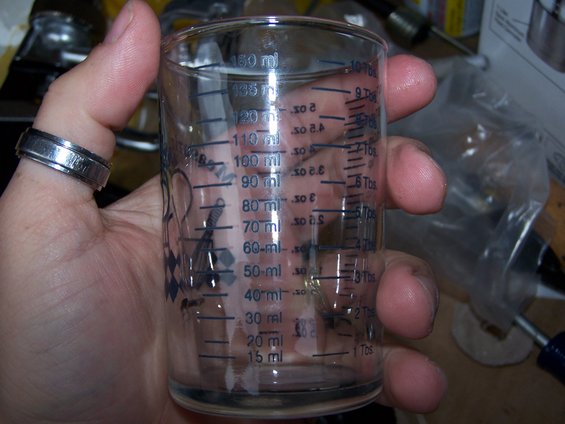

5) Thin your paint material is indicated above.
6) Clean all materials that you plan to paint. I used zylene on a clean shop rag to clean all of the panels (doors, fenders, tailgate, etc).
7) I highly suggest practicing on a piece of cardboard or anything else that you don't care about prior to applying your first coat.
8) Make adjustments to FLOW and PATTERN:

a) Overspray - this is when you have too much pressure (high flow) going through the gun. Decrease flow by making changes at the regulator (on the compressor) or turning the bottom knob on the gun counterclockwise (see below)
b) "Chunky Spray" is casued when there is'nt enough pressure. Again make changes at the regulator or turn the bottom knob clockwise.
c) Test your pattern - this controlled 2 ways: by chaning the "bat wing" you can get a vertical spray or horizontal spray. By adjusting the top knob you change the width of the sporay pattern. Play with these two setting to find what will work best for you and your application.

9) When applying the paint you want the gun to remain 6-9" from the work surface at all times, working back and forth on the material. DO NOT USE AN ARCH MOTION. After an hour of dry time you should be able to apply your second coat.
10) Let everything dry. With 550 mLs of material I was able to apply 2 coats to 4 fenders, 2 doors, 1 hood, 1 visor and 1 tailgate. It goes along way!

Finished Front Fender :


CLEANING:
1) Put a 1/4 cup of zylene in the cup and wipe with a clean shop rag. You may alos choose to turn the cup upside down for an hour to empty the cup out as much as possible prior to cleaning it with zylene.
2) Repeat this process.
3) Please a new round of clean zylene in the gun and spray through the gun onto some cardboard.
4) Use the supplied cleaning brush (at least with mine) and clean the rubber syphon hose.

The finished version of the truck would not have had any visible Ford Emblems (except for the grill). So I picked three of these up (1 for each front fender and 1 for the tailgate). What do you think?


My next goal is to finish the insides of the doors in the coming week (weather permitting). Then assembly begins.

Keep drooling...unitl next time!


·
Registered
Joined
·
843 Posts
Discussion Starter · #2 ·
awsome. are you going to make it into a trail monster or keep it looking stock or what?
It's been tough on the checkbook to get it this far. For now stock...later...larger lift, larger tires...sas...gearing...all the toys big boys dream of! It has a 4" Rancho suspension lift...would like to go 6-8". It just will be nice to see this thing shinny with no rust (especially in Minnesota!) again.


·
Registered
Joined
·
843 Posts
Discussion Starter · #3 ·
Just a warning, the POR 15 does not stick to fresh metal, you'll need to sandblast or scuff the metal with some serious paper (i.e. 36 or 50 grit) before it will stick to new metal. If you put it on fresh clean metal it doesnt stick. Go ahead, ask how I know.

next, when you glue on the 1/4's make sure to flange it and not get any glue above the joint, because filler does not like the adhesive, and the filler will crack within a couple years.

Next is that you really dont need to be afraid of not having proper equipment. I painted a show winning 71 dodge charger in a 2 car garage. I painted my 74 charger in a storage shed. Its all in how you prep the area. Lay down thick mil plastic sheeting and staple it to the walls, ceiling, etc. set up a box fan for exhaust and if you do it on bare concrete floor, use one of those pressure tanks to wet down the floor alittle before you spray, it'll keep the dust to a minimum. It's more of a pain than having a fancy paint booth, but you dont need it.

If you run into issues and want some advice, feel free to pm me. I'll do what I can.
MG - thanks for the great advice. I've done my research on the POR15 and the DURABAK. The kit comes with the Metal Ready and Marine Clean..but will make sure that I get a good "tooth" on it. Watering down the prep areas is a great idea...Thanks:thumbup


·
Registered
Joined
·
843 Posts
Discussion Starter · #4 ·
sorry, i dont feel this fits in this category. being moved unless someone complains.
Hey Plug...when I get to the "how to" portion of this write up will you move it back since it will be a Tech Write Up? I'm afraid that this will get lost among all the threads and would be appreciated by others (including myself) under the tech forum. Let me know! Thanks Plug!


·
Registered
Joined
·
843 Posts
Discussion Starter · #5 ·
Did you use metal ready?
I was under the impresion that metal ready is suposed to etch the metal making the POR-15 stick. I thought that was it's whole purpase.

Damn, now you got me worried. My whole floor board is coated in POR-15 with 2 layers of Fatmat over it. I used a wire wheel/drill on everything before painting it. I hope it was enough.

Personaly I have been using Rust-Bullet lately and really like the results.
The Metal Ready should help with toothing...but I still plan on sanding thos areas anyway (150 grit).


·
Registered
Joined
·
843 Posts
Discussion Starter · #6 ·
yeah, that would be fine. Or perhaps restructuring the thread, so its more of a "how to" relplace this or that. Otherwsie, it seems to be a build up thread which is not a tech write up imo. unless the other mods disagree (which I doubt) build up threads are not considered tech. If you want some help with the writeup, or otherwise, let us know.
How about you make the determination when it is done. It's a mix of both tech and buildup. Thanks Plug!:thumbup


·
Registered
Joined
·
843 Posts
Discussion Starter · #7 ·
You bet we will Xris

Good luck with it. Have you bought a patch panel for the door jamb or are you gonna weld in piece upon piece ?

Sixlitre
Six - the rockers I have go over the existing and up the door jamb. So I'll fabricate the missing spots (very minor) and use the Duramix in combination with pop rivets to give it added strength. This is the area which will be PRO 15ed as well as th rough Durabak coat.

By the way...the Durabak came today! YIPPIE!!!!! Now just waiting for the rear quarter panel and it's go time!


·
Registered
Joined
·
843 Posts
Discussion Starter · #8 ·
Quick question. Is the truck fully functional? I started with making everything work (parking brake didn't work, rear brakes were screwed, heater didn't work, rear glass wouldn't move, etc, etc). Now that I am on the last step (the brakes and now an axle leak) to having a fully functional vehicle. then I'll be doing this exact plan (por 15, then durabak in and out). Also, are you durabaking the plastic interior pieces or just pulling those out?
Wow! Great minds do think alike! Yes everything is functional! I have done pretty much all of the mechnical work prior to getting the body done. I do have a few issues to fix but are part of regular maint. schedule. For example new tie rods, drag linketc... and ball joints. I went with Moog steering components and Dana/Spicer ball joints. Just need to be installed.

If I have enough Durabak left I might do the trim pieces...funny you should ask that question...are you a long lost twin or something? If I do not have enough Durabak left I will go with the Krylon paint formulated for inner plastic. Let me know how your rebuiold goes?? When do you plan on starting?

To all: my rear driver side fender comes in today!!!!! buying a sheet of 3'x4' metal to fab door jambs and fill in two holes I have in the bed (both very minor).


·
Registered
Joined
·
843 Posts
Discussion Starter · #9 ·
Update

Many updates have been made...see the first thread. Let me know if you have questions. I thought I might be at least tearing the truck completely down by now. Preparation is the key! I would rather take my time and do this right.

Lessons:
1) Allow yourself lots of room to spread stuff around.
2) It might have been nice to have a spray gun for the smooth coat. Keep that in mind if you decide to do this! :thumbup
3) Tape-off your glue points.
4) Power sprayers can damage flesh.
5) Should have started with the smooth coat first...much easier when lining up the rough on the bodylines.

See my Superford site for more pics
http://www.supermotors.net/vehicles/registry/5183


·
Registered
Joined
·
843 Posts
Discussion Starter · #11 ·
Progress made

Hey everyone...It's been awhile since I have been able to work on the truck. I took a step back to see how I was progressing and if I was satisfied with my progress. On Sunday I decided to check into professional paint spray guns and to do alittle research. Although the smooth rollers were putting a good amoutn of paint onto the surface, I could could see roller marks in the paint when it dried...espiaclly in the grooved areas.

I went to Northern Tool and Hydrolics and purchased myself a siphon fed paint gun capable of shooting heavy materials ($45). This was the best investment I have made by far. PLEASE....if you decide to do this buy a gun it will cost some money but save you a butt-load of time!!!

After experimenting with the gun to get the right spray pattern and paint flow I was good to go. I figured I would put another cover up/finishing coat to hide those streaks. It worked like a charm!!! I will take some pics of the gun and the difference it made as well as how-to set up the gun and thin the Durabak material. I'll try to get some pics up tomorrow for yall. The olny painting left to do is the inner doors...may have to save that until spring.


·
Registered
Joined
·
843 Posts
Discussion Starter · #12 ·
More Progress and Pics posted

As promised...I added new pictures as well as a write up on how to use the new syphon fed gun. Please let me know if you have any questions. I may need to add more detail...but this is the gist of it. Needless to say I am extemely happy with the result and would recommend using a gun to anyone who wants to tackle this process. The Durabak is very forgiving unlike some automotive paints. Check it out!


·
Registered
Joined
·
843 Posts
Discussion Starter · #13 ·
First I have to see if these things will even stick to the Durabak. Three options that I see:
1) Use the emblems...they match the black paint and I don't think they would look that bad...other opinions??? I can see that some are against flames. No matter everyone has an opinion and I can appreciate that, that's what makes all unique.
2) Buy original...then your talking $25-$30 per emblem
3) see what I can scavange from the scrap yard....unkown cost.

Any other ideas?


·
Registered
Joined
·
843 Posts
Discussion Starter · #14 ·
No emblems? I plan on making my truck unique other ways than emblems and stickers. Personally I think that is what I'll do but to each their own.

Custom emblems? Quick search brought up http://youremblem.com/catalog/... looks like "FORD" would be about $15, Bronco would be about 23 or so... Would be more fun to write something yourself though. Or maybe you could make something cool with a bandsaw or something.

IMO getting stickers/emblems from autozone is not the way to go if you are trying to make your truck unique. But again, it is your truck. Make it however you like it.

Awesome work by the way, the tips on the spraying are what I've been looking for since I decided to do the outside as well as the inside.
WOW Cool find regarding the custom emblems!!! ANother thought I had was the fact that my best friend is a graphic designer..maybe he can design something cool and then take it to a vinyl shop. Thanks Pantsman for the idea!


·
Registered
Joined
·
843 Posts
Discussion Starter · #15 ·

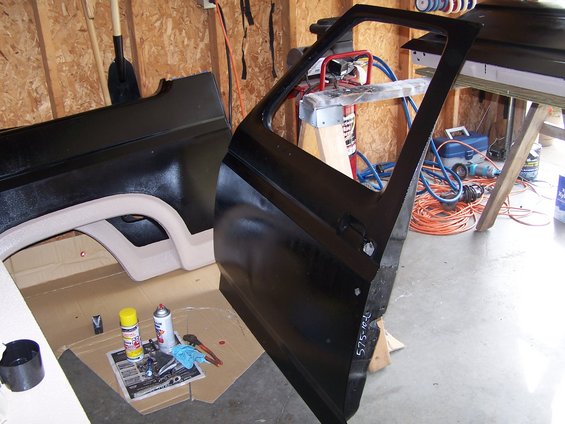

Doors done

I was able to steal away from work a few hours early yesterday and was able to complete the insides of the doors. Put a good 3 coats by spray gun on...looking good! I did'nt post pictures frankly because it is the same type of work I have been doing. Come spring I may do a final coat on the entire truck.

Assembly will start hopefully this week, because my wife is sick of parts taking up her part of the garage.

Opinion question: I have been toying with the idea of painting the front grill and components with the black Durabak. What do you guys think? Right now it is the fake chrome stuff.


·
Registered
Joined
·
843 Posts
Discussion Starter · #16 ·



nice shot glass:beer , nice work on the bronco. you can do mine next.
Yeah...looks bad dos'nt it?

Speaking of chemicals...A little warning to everyone...always wear a mask/resp., gloves, goggles and outlined safety equipment. It just so happens I was not wearing a hat the last day I painted. I had an allergic reaction to the paint (ears). A couple doses of Prednisone and Clariton and I was on my way. Not comfortable at all!

My wife is gone this weekend so it will be myself and the boys hanging out...so needless to say no truck time. I am going to try to score major truck time next week and weekend. I'll keep you up to date with pics and progress.


·
Registered
Joined
·
843 Posts
Discussion Starter · #17 ·
Time to get back to business

Hey fellas...and gals!

It's been a number of months since my last update. Just to inform you that I will be taking the end of May off from work to get a large chunk of work done. I just ordered another gallon of Durabak and invested in a quart of Rust Bullet. I do not not know what I am going to find underneath that carpet!

According to the Rust Bullet website the 1 qt size should cover 50 sq.ft (x2 coats)....should have plenty to cover the inside bed and inner wheel wells + any other part I think may need it. Stayed tuned for May 25th!!!:rockon


·
Registered
Joined
·
843 Posts
Discussion Starter · #18 ·
May is half way over, so get to work. Looks good, after your done are you going to wheel it?
yep...May is quickly fading. With Gas prices the way they are...I have reservations in getting this thing done. There is so much other stuff to get done too. On the list:

1) Saginaw swap - ready to install, just need to repaint.
2) Ball joints
3) Tie rods and all new steering hardware.
4) New brake lines from the master to the proportioning valve
5) New wheel cylinders.
6) I hope to get a pre-runner bumper soon too! How's that for busy!

I am committed to having a final product by mid-summer!!!! Wheeling is always a possibility! I have in the past, I don't see much stopping now!


·
Registered
Joined
·
843 Posts
Discussion Starter · #19 ·
Its getting closer! Starting to get REALLY inspired after checking out several threads on resto's!

1) Recieved the extra gallon of smooth black Durabak
2) Received the quart of Rust Bullet
3) Got my self a high quality paint mask, gowns and more gloves too!
4) Swingset installed = kids happy
5) Backyard puppy proofed (new puppy last week)= wife happy
6) Tetherball pole installed in backyard = wife and kids happy
7) FRIDAY HERE I COME!!!!

If any of you have advice in regard to taking those front fenders off and installing new ones let me know. It's just a matter of screws and bolts...appropximate time to take one off? Alignment...anything I should know? Should I just re-align the new panels with the doors and work my way back?
By the way I had to show I picture of Jack (and no...those purdy toes are not mine...their my wifes!):


·
Registered
Joined
·
843 Posts
Discussion Starter · #20 ·
FINALLY...some progress!

First day off for the week-long project. I made, waht I think was pretty good progress. Was able to get the rock guard, both front fenders and the cowl put back on. On Tuesday, I'll progress to the hood and start taking out all of the interior! See below:

Front Fender Removal and Install

1) The first thing I did was to take the inner fender screws off. These were 7/32. You'll more then likely break a few, especially in the salt belt. There are also two larger belts under there (10mm) on the driver side and only one located on the passenger side. ( you may have to stick your head in the wheel well to see them.


2) There are also a number of 8 and 10mm bolts located at the following locations:
Front upper grill support

Lower grill support

Fender/Rock Guard connection

Make sure to rescue all of these clips

Larger bolts (1/2 inch) are located topside

There are two more large bolts; one is located behind the front well and before the door (underneath) and the other can only be seen by opening the door and looking through the crack. You will need a 10mm sockete and a long extension to get at it.

1 - 20 of 191 Posts
Top
