Discussion Starter · #1 ·
Dual battery installation



Decided to Install a dual battery setup in my 1979 Bronco. The second battery will power all the auxiliary lights, winches, 1000 watt inverter, and USB chargers. The isolator will keep both batteries charged from the single alternator.

Here is a simple list of the parts added

(Note left the vendors off, just use Amazon you’ll find the right parts)

Dual Battery Isolator Kit 12V 140Amp, with Voltage Sensitive Relay. This is a must for dual battery systems. It allows for additional starting power if needed, and keeps both batteries charged without additional strain on the alternator.

4 Gang Rocker Switch Panel with USB Charger Voltmeter, to operate additional lights, charge usb devices, and power for the crane winch.

12V Fuse and Relay Box with 6 Pcs Relays 6 Slot ATO/ATC Blade Fuse Holder Box Block. Fuses and Relays to keep each power circuit separate.

Battery Power Cut Master Switch Disconnect Isolator for Vehicle. This disconnects positive power from the front winch when not in use.

Additional battery tray to secure the second battery.

Picked up an additional 20 feet of 4 Gauge AWG red and back Wire, some additional connectors too.

Another 24F battery

It’s a simple setup, the isolator kit came with straight forward instruction. The relay and fuse box didn’t come with any instructions, buts it’s simple, the white wire goes to the switch, yellow goes to device, black is ground, red goes to positive.


· Joisey don't smell funny
78 Bronco Custom, 460/ZF5, Sniper upgrade, 3G, dual batt
Joined
·
1,684 Posts
Love the dual setup. I put mine in primarily for the winch, but I run other stuff off it also. I just used a charge switch rather than an isolator. Also keeps the aux battery charged as needed. 0/1 braided cable between both batteries, and mega-fuses in between that. I got a couple of RuffStuff battery trays made for Optimas.

  • Like
Reactions: NotaVegetarian

· Premium Member
Joined
·
4,068 Posts
Isolator is nice if you are going to draw one batt down, but otherwise not necessary to charge both batteries.
Been running multiple bronc's for 25 years, dual batt's, and no isolator.

In fact, I even run dual 3G's on my rock crawler (second one has switch on field) and even they work without any
fancy circuits to ensure both will charge at the same time.


· Super Moderator
Joined
·
33,587 Posts

· Registered
Joined
·
510 Posts
Discussion Starter · #6 ·
No pictures at the moment will try and take some this weekend


· Premium 4 Lyfe - Way Back Staff
'95 XLT: 5.8, MAF, E4OD, 4.56's, 6" on 33's
Joined
·
39,498 Posts

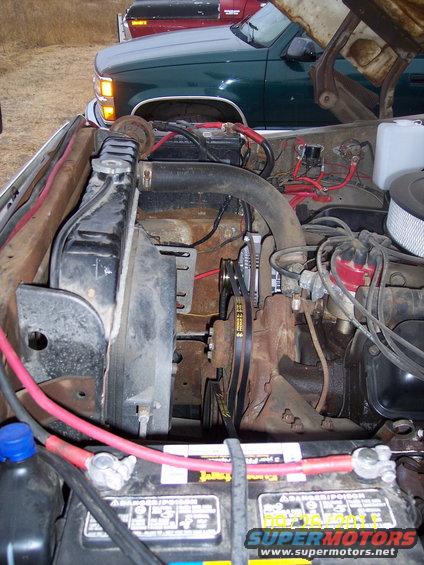

Been running daisy chained, duel batteries in my '73 F250 plow truck for years now. No issues running the flatbed hoist/elec. winch, western plow, spinning/flashing light bar, stereo. I did install a 160A 3G alternator with the big fuse protection and thicker wires.







· Registered
Joined
·
510 Posts
Discussion Starter · #8 ·
Been running daisy chained, duel batteries in my '73 F250 plow truck for years now. No issues running the flatbed hoist/elec. winch, western plow, spinning/flashing light bar, stereo. I did install a 160A 3G alternator with the big fuse protection and thicker wires.





Like the setup

  • Like
Reactions: BikerPepe`

· Registered
Joined
·
510 Posts
Discussion Starter · #9 ·
Here is a picture of the stuff I’m using. The extra black cable is in the box. And the auxiliary switch panel is installed in the truck. the auxiliary battery will power all the off road lights, and winch. Will have a power cutoff connected to the winch. More pictures to come.

Electrical wiring Automotive tire Gas Auto part Electrical supply
