[Seattle FSB]

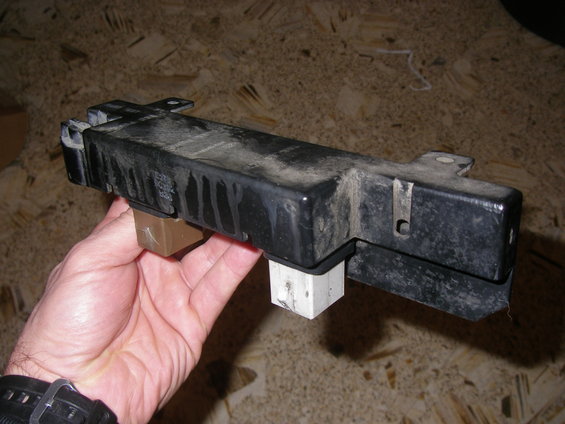

Pre-1992 Broncos have had issue with a poorly designed Relay Holder located in the driver's side engine compartment. Frequently these holders are broken due to the difficulty in removing a relay for replacement. Once the underside tab is broken that space for a relay can no longer be used. Relays are then usually found flopping around loose on the fenderwell which can cause damage or acclerate corrosion of the connectors.

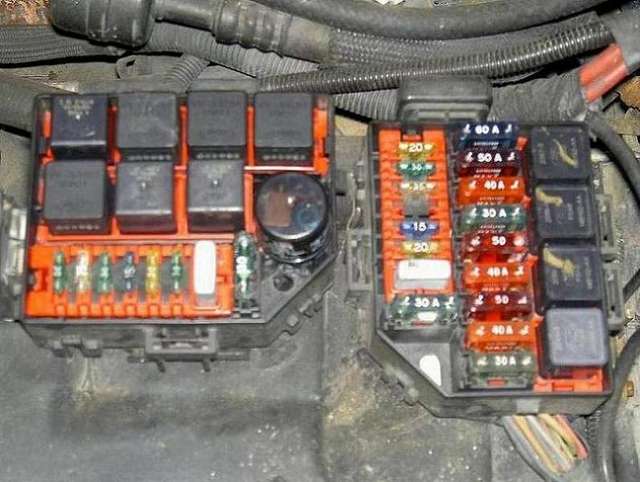

My 1990 Bronco doesn't have the luxury of a modern Power Distribution Box like the Explorer Box below, so I decided to make my own Relay Mounting Bracket.

First I procured a flat piece of aluminum. I marked and drilled two mounting holes at the base to attach to the existing brackets from the old Air Box. This worked out well as I needed at least a 1" space behind the bracket for Push Type Retainers and Relay Mounting Clips that you will see later. Once the mounting location was set, I marked and drilled 1/4" Relay Mounting Holes 1/2" down from the top of the bracket and spaced 1 1/2" apart.

I then had to figure out how to mount two different types of Relays and the EEC Test Connector protector.

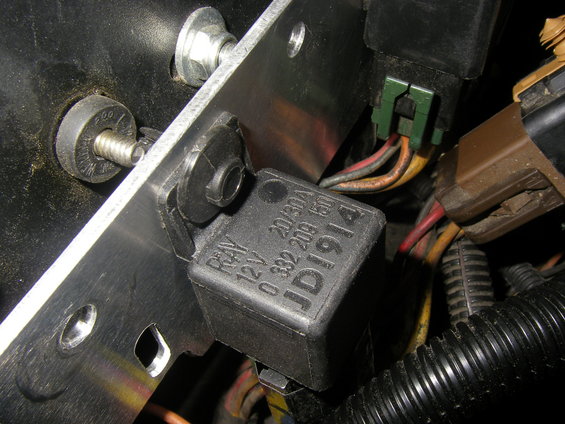

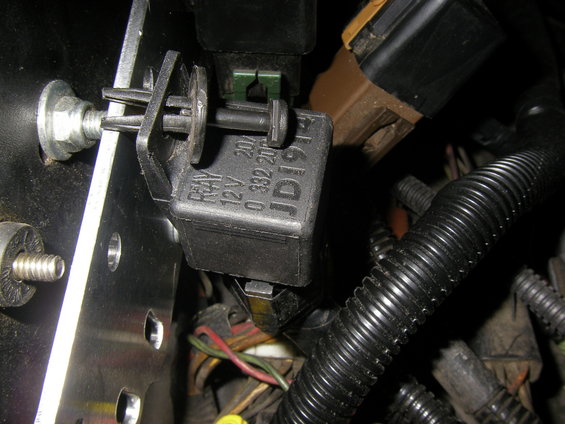

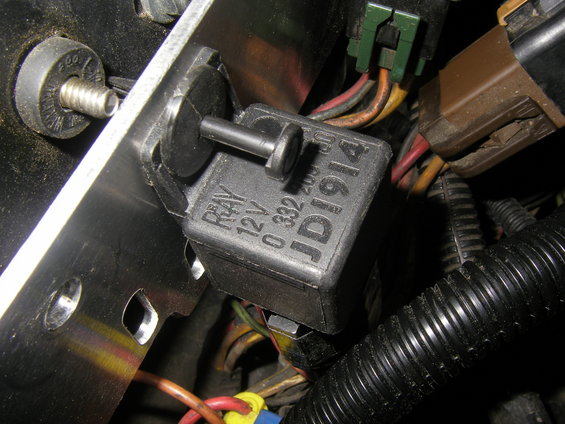

First was the Bosch Type Relays. Look for the ones with an integral plastic mounting tab and not a metal slide-in tab. The Relay mounting tab usually has a 1/4" mounting hole, although some will have a 3/16" hole that will need to be enlarged. I used standard plastic push-pin type retainers to hold them in place. The push-pins should have an 11/16" head and fit a 1/4" hole, such as these ones from Clips and Retainers. They come in a 25 piece package for $4.82.

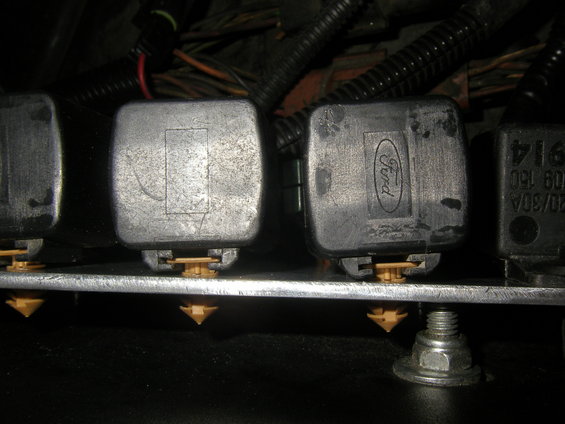

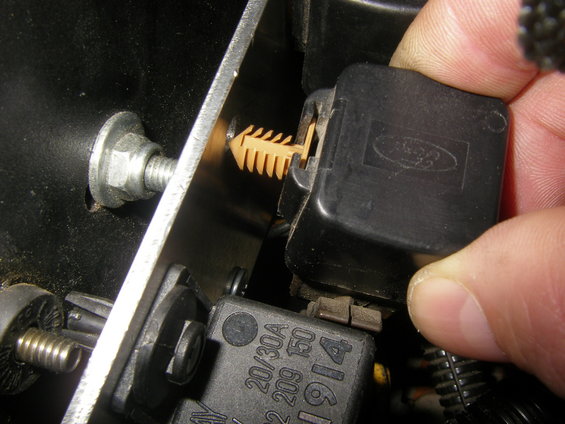

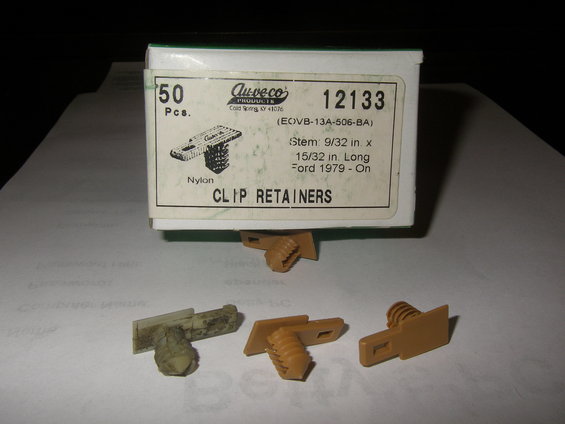

Next are the larger Ford Relays for EEC, Fuel Pump and Towing. These have a tab on the back for insertion of a mounting clip similar to the clips that are broken off in the old Relay Holder Box. I used AuVeCo Clip Retainers (PN 12133) available from Clips and Fasteners. They come in a 50 piece box for $3.28, so if anyone needs some I have extras. They slide in behind the relay until they catch on a little detent and then simply push into your mounting hole.

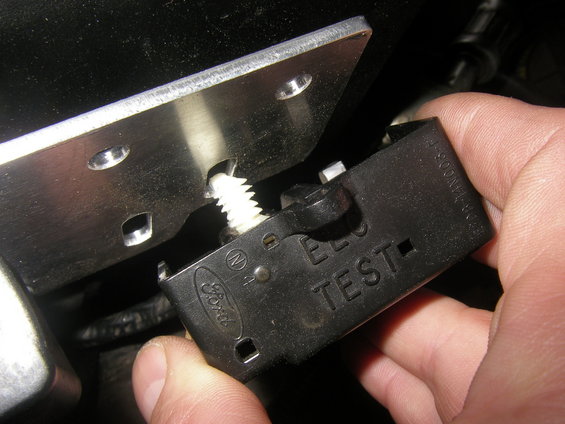

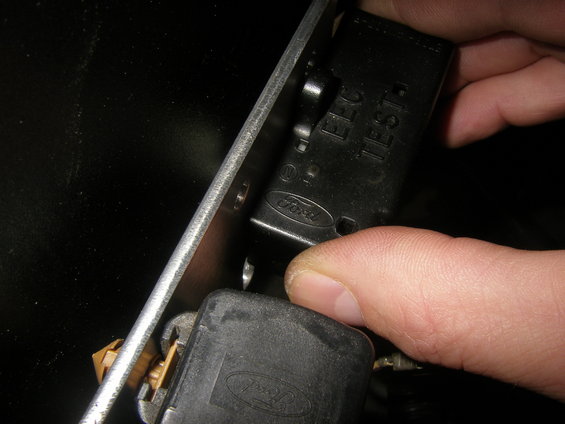

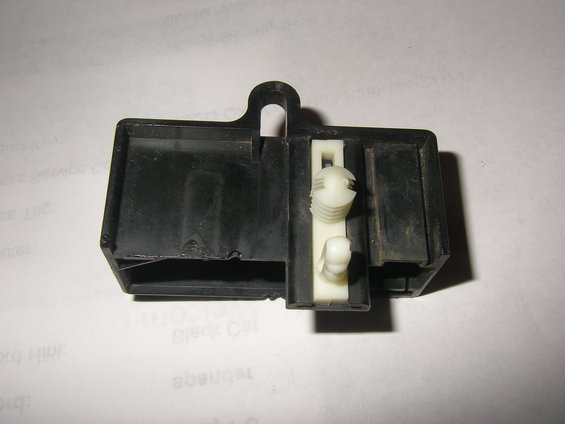

Finally, I procured a new EEC Test Connector mounting box. These also have a clip on the back for mounting and a detent. These clips are different as they have an orientation pin to keep them from spinning so you will have to elongate your mounting hole downward. I used AuVeCo Wire Routing Clips (PN 20569) also available from Clips and Fasteners. They come in a 25 piece box for $3.28, so again I have extras if anyone needs them. Note that my drilled holes were not lined up very well as I decided on the EEC Test Connector box after the fact. Now knowing that the dual orientation clip requires an elongated hole, you can line it up correctly the first time.

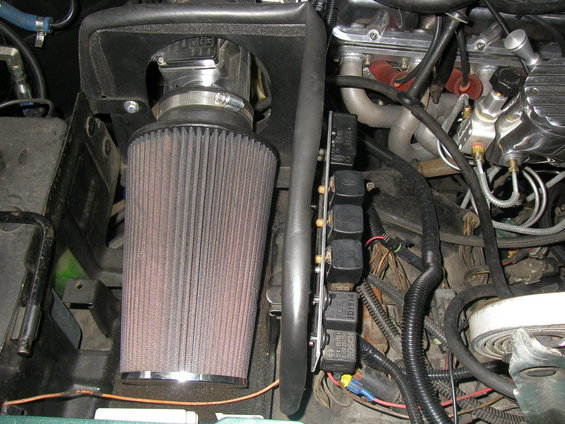

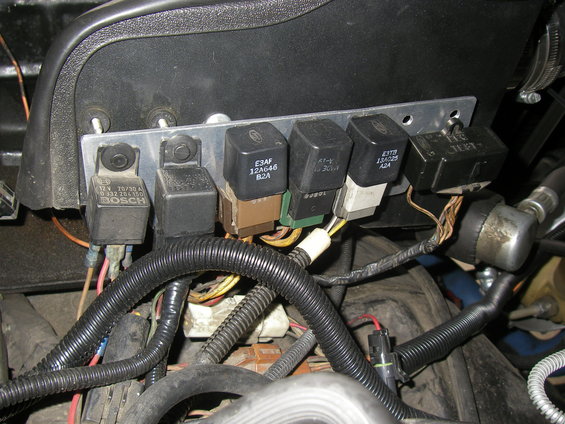

Anyway, when you are all done you end up with this...

There ya' go, neat and clean. The mounting clips fit very tight so it is great that they are inexpensive and can be easily replaced. Sure I could have installed a modern Power Distribution Box, but my fuses and relays are separated by the firewall and that would require extensive rewiring.

This project was fairly simple, you can do it too! :thumbup



[Bronco85]

Never seen that relay box your talking about. Guess I've never looked in the right broncos Thats a nice board you make. I had that problem with my EFI swap. Nowhere to put all those relays. I ended up drilling holes in my tool box and mounting them there. Which was all well and good, but those plastic clips didn't work worth crap and they always fell out.



[Seattle FSB]

Thanks! Those clips are nice and tight, 'cause they are new and the 1/4" holes are the correct size.



[Moritz1024]

Do u have any more of the auveco 12133 clips sittin around thy stopped making them

Pre-1992 Broncos have had issue with a poorly designed Relay Holder located in the driver's side engine compartment. Frequently these holders are broken due to the difficulty in removing a relay for replacement. Once the underside tab is broken that space for a relay can no longer be used. Relays are then usually found flopping around loose on the fenderwell which can cause damage or acclerate corrosion of the connectors.

My 1990 Bronco doesn't have the luxury of a modern Power Distribution Box like the Explorer Box below, so I decided to make my own Relay Mounting Bracket.

First I procured a flat piece of aluminum. I marked and drilled two mounting holes at the base to attach to the existing brackets from the old Air Box. This worked out well as I needed at least a 1" space behind the bracket for Push Type Retainers and Relay Mounting Clips that you will see later. Once the mounting location was set, I marked and drilled 1/4" Relay Mounting Holes 1/2" down from the top of the bracket and spaced 1 1/2" apart.

I then had to figure out how to mount two different types of Relays and the EEC Test Connector protector.

First was the Bosch Type Relays. Look for the ones with an integral plastic mounting tab and not a metal slide-in tab. The Relay mounting tab usually has a 1/4" mounting hole, although some will have a 3/16" hole that will need to be enlarged. I used standard plastic push-pin type retainers to hold them in place. The push-pins should have an 11/16" head and fit a 1/4" hole, such as these ones from Clips and Retainers. They come in a 25 piece package for $4.82.

Next are the larger Ford Relays for EEC, Fuel Pump and Towing. These have a tab on the back for insertion of a mounting clip similar to the clips that are broken off in the old Relay Holder Box. I used AuVeCo Clip Retainers (PN 12133) available from Clips and Fasteners. They come in a 50 piece box for $3.28, so if anyone needs some I have extras. They slide in behind the relay until they catch on a little detent and then simply push into your mounting hole.

Finally, I procured a new EEC Test Connector mounting box. These also have a clip on the back for mounting and a detent. These clips are different as they have an orientation pin to keep them from spinning so you will have to elongate your mounting hole downward. I used AuVeCo Wire Routing Clips (PN 20569) also available from Clips and Fasteners. They come in a 25 piece box for $3.28, so again I have extras if anyone needs them. Note that my drilled holes were not lined up very well as I decided on the EEC Test Connector box after the fact. Now knowing that the dual orientation clip requires an elongated hole, you can line it up correctly the first time.

Anyway, when you are all done you end up with this...

There ya' go, neat and clean. The mounting clips fit very tight so it is great that they are inexpensive and can be easily replaced. Sure I could have installed a modern Power Distribution Box, but my fuses and relays are separated by the firewall and that would require extensive rewiring.

This project was fairly simple, you can do it too! :thumbup



[rcracerx]

this thread is 1 1/2 years old, I kinda doubt it



[JBfab]

Hey awesome a full thread quote for one sentence! Pm the OP. if hes still around and has them he'll let ya know.



[Seattle FSB]

Moritz,

Delete the quote in your post, PM me and I will send you some.



[broncofan22]

I didn't even know these boxes existed. I'd only ever seen broncos with the relays laying on the fender well. I thought the old bracket was from a previous air filter box.

Was there a fusebox in yours as well? I have now seen that in a few pictures of F150s from the same era. The only fuses I have seen are under my drivers side dash.



[slimpartywagon]

I didn't even know these boxes existed. I'd only ever seen broncos with the relays laying on the fender well. I thought the old bracket was from a previous air filter box.

Was there a fusebox in yours as well? I have now seen that in a few pictures of F150s from the same era. The only fuses I have seen are under my drivers side dash.

The only fuse box is under the dash.



[broncofan22]

I found this waterproof box for Bosch connectors. I was thinking about buying one and then cutting out a few of the Bosch outlets to make room for the Ford relays. I think it would allow you to create a waterproof housing for all of these relays. I was going to cut out the fuse box section to make room for the EEC Test connectors to push in from the bottom.

I think it is also possible to replace the Ford relays with Bosch style relays, but I'm not 100% on that. If true, that would be even better.

Amazon.com: 12V Auto Waterproof Fuse Relay Box Block [6 Bosch Style Relay Holder] [6 ATC/ATO Fuse Holder] Universal Relay Block Box for 12V Automotive Vehicles Cars Marine Boat Light Equipment : Automotive

Buy 12V Auto Waterproof Fuse Relay Box Block [6 Bosch Style Relay Holder] [6 ATC/ATO Fuse Holder] Universal Relay Block Box for 12V Automotive Vehicles Cars Marine Boat Light Equipment: Fuse Holders - Amazon.com ✓ FREE DELIVERY possible on eligible purchases

www.amazon.com



[slimpartywagon]

I found this waterproof box for Bosch connectors. I was thinking about buying one and then cutting out a few of the Bosch outlets to make room for the Ford relays. I think it would allow you to create a waterproof housing for all of these relays. I was going to cut out the fuse box section to make room for the EEC Test connectors to push in from the bottom.

I think it is also possible to replace the Ford relays with Bosch style relays, but I'm not 100% on that. If true, that would be even better.

Amazon.com: 12V Auto Waterproof Fuse Relay Box Block [6 Bosch Style Relay Holder] [6 ATC/ATO Fuse Holder] Universal Relay Block Box for 12V Automotive Vehicles Cars Marine Boat Light Equipment : Automotive

Buy 12V Auto Waterproof Fuse Relay Box Block [6 Bosch Style Relay Holder] [6 ATC/ATO Fuse Holder] Universal Relay Block Box for 12V Automotive Vehicles Cars Marine Boat Light Equipment: Fuse Holders - Amazon.com ✓ FREE DELIVERY possible on eligible purchases

www.amazon.com

View attachment 197930

I have that same box… it’s not very good quality… I didn’t trust it under my hood, so mounted it inside the cab under my dash… secondly instead of removing the Bosh relays, I would simply pull the pins from the factory ford relay sockets and put them into the box you pictured or into Bosch Relay Connectors. You can barely find the old cord Relays these days, Bosch is the industry standard so are sold almost anywhere.



[broncofan22]

That's a bummer. I ordered one up. The reviews are decent. It should at least be better than flopping around on the fender well which is what I have had for the past 10 years. The Bosch rewire seems like a good call.



[slimpartywagon]

That's a bummer. I ordered one up. The reviews are decent. It should at least be better than flopping around on the fender well which is what I have had for the past 10 years. The Bosch rewire seems like a good call.

You are correct it’s better than the factory bracket and cover. I do a lot of deep water crossings, mud, snow, and sand… so I wasn’t comfortable putting it under the hood. I ended up spending the money on a BluseSea fuse and relay box for under the hood. But if you are doing street use and mild trails there isn’t need for the overkill.
