Discussion Starter #1 (Edited)

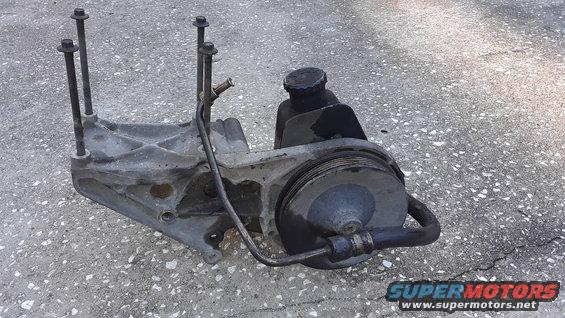

Guys and gals, for your consideration are COMPLETE Saginaw conversions. I have 5.0/5.8 set-ups and 4.9/300 set-up. The small bolt units were pulled from mid-90's Econolines. If you are in need of a large A/C bolt bracket please let me know and I can source another one. Components are in very good condition. I have degreased and wire wheeled all the bolts, degreased and lightly polished the brackets, degreased and wiped down the pumps and lines, and wire wheeled and painted the pulleys.

I have received some questions about which 5.0/5.8 bracket (Large A/C bolt vs. Small A/C bolt) is needed based on what year your Bronco is. Generally speaking, 87-90 will need a large bolt, 91-96 will need a small bolt. Both brackets are identical as seen here.

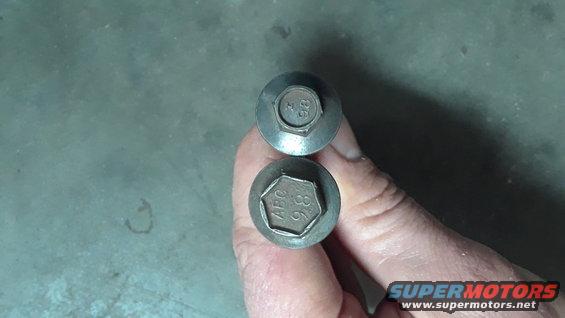

The only difference is the diameter of the A/C compressor bolt. The large bolt has a 13mm head and the small bolt has a 10mm head. The easiest way to find out which one you need is to see what the A/C compressor bolt head size is. Here's a picture.

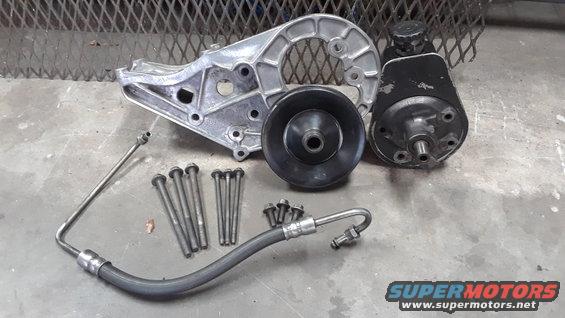

You will receive the following components: bracket, all bolts/hardware, power steering pump w/cap, pulley, and high pressure line. With the 4.9/300 set-ups you will also receive the tensioner/idler pully assembly. This is a bolt-in modification. The only thing you will need to provide is new fluid. However, I do recommend a slightly longer serpentine belt.

This is, in my opinion, one of the best mods for your 87-96 Bronco or F-series truck. Single finger steering and no more whine! Don't miss out on this great upgrade.

Shipping is included in the price for the buyer's convenience. I prefer Paypal, but money order and cash are also fine. Shipping will most likely be via USPS priority mail and tracking information is provided upon shipment. I can usually ship same day or next day upon receipt of payment.

5.0/5.8 Saginaw conversion - $150shipped

4.9/300 EFI Saginaw conversion - $150shipped SOLD


V-Belt 4.9/300 Conversion $100shipped SOLD


Premium 4 Lyfe - Way Back Staff
'95 XLT: 5.8, MAF, E4OD, 4.56's, 6" on 33's
Joined
36,261 Posts
Damn you @zainyD :toothless
If I wasn't in the middle of dealing with these old 400's, I'd be all over that one for my '95. :thumbup


that's a lot of oil
Joined
775 Posts
Hmmmm, might pull the trigger on this one.


Registered
Joined
1,468 Posts
Discussion Starter #4
Both units are still available and I was able to source a second complete 5.0/5.8 unit last week. Get 'em while they're hot!


Registered
Joined
1,468 Posts
Discussion Starter #6
1 - 5.0/5.8 and 1 - 300/4.9 Saginaw conversion still available.

Thanks to those who have bought the other two 5.0/5.8 conversions.


Registered
Joined
1,468 Posts
Discussion Starter #7
5.0/5.8 Saginaw conversion is SOLD. Will notify everyone if I get more available.

300/4.9 Saginaw conversion is still available. 100% complete down to the tensioner pully and bolts.


Registered
Joined
1,468 Posts
Discussion Starter #9
Just picked up another 5.0/5.8 Saginaw conversion today. I currently have one of each set-up 5.0/5.8 & 300/4.9.

Also, the 300/4.9 Saginaw is now the same price as the 5.0/5.8, $150shipped.


Super Moderator
Joined
25,393 Posts
Yo @RobRoe and @zainyD
Unfortunately, our rules require 75 non-padded posts to be able to buy or sell.
The recent site Upgrade didn't block Rob from posting here.

Rules at https://www.fullsizebronco.com/threads/attn-all-sellers-for-sale-rules.55401/
Al

As a wise Administrator once advised, "Let's keep it off the open forum and if you want to discuss, then keep it in Private Messages".
"Once it's outside of the For Sale/Where to Buy Section, it's just between the parties, thus the Administration here can't resolve any issues."


Registered
Joined
1,468 Posts
Discussion Starter #12
5.0/5.8 Saginaw conversion is sold. Will update everyone when I get another one.


Registered
Joined
1,468 Posts
Discussion Starter #15
Small A/C bolt 5.0/5.8 bracket conversion is sold. Still have large bolt 5.0/5.8 bracket and 4.9/300 kit.


Registered
Joined
1,468 Posts
Discussion Starter #17
Original post has been updated to reflect special Black Friday/Cyber Monday sale prices. Buy now through Monday, December 2nd and enjoy a special FSB discount!


Driving Stuff Henry Built
-90 xlt, 351w, e4od, man 1356, 3.55, sag, warn hubs, 35s. -73, 400, np435, d20j twin, 35s
Joined
7,942 Posts
This is, in my opinion, one of the best mods for your 87-96 Bronco or F-series truck. Single finger steering and no more whine! Don't miss out on this great upgrade.
x2. This has been my favorite upgrade on my 90 5.8. Turns 35x12.50x15s easily & quietly.


Premium Member
1986 Bronco, 351w, Edelbrock aluminum top end, Holley 600, 4" BDS lift, 35" Maxxis Razr's, stuff..
Joined
2,476 Posts
PM sent on the 5.8


Sent from my iPhone using Tapatalk Pro


Addicted to Junk
85 Bronco, 309ci I6 w/4bbl, np435, 4" lift, 37" Irok NDs, 4.56 w/ Detroit Locker and tru trac
Joined
12,731 Posts
Found a 7.5/460 kit today in a 1994 E350 so it's been added to the list. Only the third one of this type I've come across.
I see them, about 1 in every 50-60 econolines I see. Not common by any means. I've seen maybe 6 of em. The serp stuff is too much work for me lol. I stick to the v-belt brackets. And york setups...
