I'll work on making a cross reference for other makes/models in the future. These are all for FSB's 1980+ model years. They same OEM number can be found on various cars and other trucks. Hopefully with this list you can go to the junk yard/ebay etc and pull an ECU that will work for your FSB.
FSB ECU part number- The definitive list
1 - 20 of 20 Posts
Code:
1980 OEM# Sub Model Engine Type Liters Engine Description Fuel Delivery VIN CODE Remarks
All Base L6-300ci 4.9L N/A CARB E Standard System
All Base V8-302ci 5.0L N/A CARB F Standard System
All Base V8-351ci 5.8L N/A CARB G Standard System
1981 OEM# Sub Model Engine Type Liters Engine Description Fuel Delivery VIN CODE Remarks
All Base L6-300ci 4.9L N/A CARB E Standard System
E0AE-AA/CA Base V8-302ci 5.0L N/A CARB F Standard System
E0AE-AA/CA Base V8-351ci 5.8L N/A CARB G Standard System
E1UE-AA/BA/BB/DA Base V8-302ci 5.0L N/A CARB F Standard System
E1UE-AA/BA/BB/DA Base V8-351ci 5.8L N/A CARB G Standard System
E1UE-AA/BA/DA Base V8-302ci 5.0L N/A CARB F Standard System
E1UE-AA/BA/DA Base V8-351ci 5.8L N/A CARB G Standard System
E2UF-AA/BA/BB Base V8-302ci 5.0L N/A CARB F Standard System
E2UF-AA/BA/BB Base V8-351ci 5.8L N/A CARB G Standard System
1982 OEM# Sub Model Engine Type Liters Engine Description Fuel Delivery VIN CODE Remarks
All Base L6-300ci 4.9L N/A CARB E Standard System
E1UE-AA/BA/DA Base V8-302ci 5.0L N/A CARB F Standard System
E1UE-AA/BA/DA Base V8-351ci 5.8L N/A CARB G Standard System
E2UF-AA/BA/BB Base V8-302ci 5.0L N/A CARB F Standard System
E2UF-AA/BA/BB Base V8-351ci 5.8L N/A CARB G Standard System
E0AE-AA/CA Base V8-302ci 5.0L N/A CARB F Standard System
E0AE-AA/CA Base V8-351ci 5.8L N/A CARB G Standard System
E1UE-AA/BA/BB/DA Base V8-302ci 5.0L N/A CARB F Standard System
E1UE-AA/BA/BB/DA Base V8-351ci 5.8L N/A CARB G Standard System
1983 OEM# Sub Model Engine Type Liters Engine Description Fuel Delivery VIN CODE Remarks
E1UE-AA/BA/DA Base V8-302ci 5.0L N/A CARB F Standard System
E1UE-AA/BA/DA Base V8-351ci 5.8L N/A CARB G Standard System
E2UF-AA/BA/BB Base V8-302ci 5.0L N/A CARB F Standard System
E2UF-AA/BA/BB Base V8-351ci 5.8L N/A CARB G Standard System
E0AE-AA/CA Base V8-302ci 5.0L N/A CARB F Standard System
E0AE-AA/CA Base V8-351ci 5.8L N/A CARB G Standard System
E1UE-AA/BA/BB/DA Base V8-302ci 5.0L N/A CARB F Standard System
E1UE-AA/BA/BB/DA Base V8-351ci 5.8L N/A CARB G Standard System
E3AF-CA Base V8-351ci 5.8L N/A CARB G Standard System
E3TF-BA Base L6-300ci 4.9L N/A CARB Y W/MT
E3TF-CA/DA Base L6-300ci 4.9L N/A CARB Y W/AT
1984 OEM# Sub Model Engine Type Liters Engine Description Fuel Delivery VIN CODE Remarks
ABB Base L6-300ci 4.9L N/A CARB Y w/I.D
ACB Base L6-300ci 4.9L N/A CARB Y w/I.D
E4UF-NB Base L6-300ci 4.9L N/A CARB Y W/MT
E4UF-UB Base L6-300ci 4.9L N/A CARB Y W/AT
E3PF-BA Base V8-302ci 5.0L N/A CARB F Calif. Emissions w/I.D
E3TF-BA Base V8-302ci 5.0L N/A CARB F Calif. Emissions w/I.D
E43F-AAA Base V8-302ci 5.0L N/A CARB F Standard System
E43F-AAA Base V8-302ci 5.0L N/A CARB F CAL W/AT
E43F-ABA Base V8-351ci 5.8L N/A CARB G W/MT
E43F-ABA Base V8-351ci 5.8L N/A CARB G Standard System
E43F-ABA Base V8-351ci 5.8L N/A CARB H W/MT
E43F-ABA Base V8-351ci 5.8L N/A CARB H Standard System
E43F-ACA Base V8-351ci 5.8L N/A CARB G Standard System
E43F-ACA Base V8-351ci 5.8L N/A CARB H Standard System
E43F-ACA/ADA Base V8-351ci 5.8L N/A CARB G W/AT
E43F-ACA/ADA Base V8-351ci 5.8L N/A CARB H W/AT
E43F-ADA Base V8-351ci 5.8L N/A CARB G Standard System
E43F-ADA Base V8-351ci 5.8L N/A CARB H Standard System
E4EF-ABA Base L6-300ci 4.9L N/A CARB Y w/I.D
E4EF-ACA Base L6-300ci 4.9L N/A CARB Y w/I.D
E4EF-NA Base L6-300ci 4.9L N/A CARB Y Standard System
E4EF-NA/NB Base L6-300ci 4.9L N/A CARB Y W/MT
E4EF-NB Base L6-300ci 4.9L N/A CARB Y Standard System
E4EF-UA Base L6-300ci 4.9L N/A CARB Y Standard System
E4EF-UA/UB Base L6-300ci 4.9L N/A CARB Y W/AT
E4EF-UB Base L6-300ci 4.9L N/A CARB Y Standard System
E4VF-HA Base V8-302ci 5.0L N/A CARB F Standard System
1985 OEM# Sub Model Engine Type Liters Engine Description Fuel Delivery VIN CODE Remarks
ABB Base L6-300ci 4.9L N/A CARB Y w/I.D
ACB Base L6-300ci 4.9L N/A CARB Y w/I.D
E43F-ACA/ADA Base V8-351ci 5.8L N/A CARB G W/AT
E43F-ACA/ADA Base V8-351ci 5.8L N/A CARB H W/AT
E43F-ZA Base V8-302ci 5.0L N/A FI N w/I.D
E4EF-ABA Base L6-300ci 4.9L N/A CARB Y w/I.D
E4EF-ABA/ABB Base L6-300ci 4.9L N/A CARB Y HIGH ALT W/MT
E4EF-ABA/ABB/ACA/ACB Base L6-300ci 4.9L N/A CARB Y FED W/MT
E4EF-ACA Base L6-300ci 4.9L N/A CARB Y w/I.D
E4EF-ACA/ACB Base L6-300ci 4.9L N/A CARB Y HIGH ALT W/MT
E4EF-NA Base L6-300ci 4.9L N/A CARB Y Standard System
E4EF-NA/NB Base L6-300ci 4.9L N/A CARB Y CAL W/MT
E4EF-NB Base L6-300ci 4.9L N/A CARB Y Standard System
E4EF-UA Base L6-300ci 4.9L N/A CARB Y Standard System
E4EF-UA/UB Base L6-300ci 4.9L N/A CARB Y CAL W/AT
E4EF-UB Base L6-300ci 4.9L N/A CARB Y Standard System
E5DF-AA Base L6-300ci 4.9L N/A CARB Y Standard System
E5DF-AA/MA/ZA/ZB Base L6-300ci 4.9L N/A CARB Y FED W/AT
E5DF-GA Base L6-300ci 4.9L N/A CARB Y Standard System
E5DF-GA/HA/JA Base L6-300ci 4.9L N/A CARB Y HIGH ALT W/MT
E5DF-GA/HA/JA/LA/SA Base L6-300ci 4.9L N/A CARB Y FED W/MT
E5DF-LA Base L6-300ci 4.9L N/A CARB Y Standard System
E5DF-LA/SA Base L6-300ci 4.9L N/A CARB Y HIGH ALT W/MT
E5TF-ABA Base V8-302ci 5.0L N/A FI N Standard System
E5TF-ABA Base V8-302ci 5.0L N/A FI N w/I.D
E5TF-ABA/AKA/UA/UB Base V8-302ci 5.0L N/A FI N W/AT
E5TF-AKA Base V8-302ci 5.0L N/A FI N Standard System
E5TF-DB Base V8-351ci 5.8L N/A CARB G Standard System
E5TF-DB Base V8-351ci 5.8L N/A CARB H Standard System
E5TF-JB Base V8-302ci 5.0L N/A FI N Standard System
E5TF-RA Base V8-302ci 5.0L N/A FI N W/MT
E5TF-RA Base V8-302ci 5.0L N/A FI N Standard System
E5TF-UA Base V8-302ci 5.0L N/A FI N Standard System
E5TF-UB Base V8-302ci 5.0L N/A FI N Standard System
1986 OEM# Sub Model Engine Type Liters Engine Description Fuel Delivery VIN CODE Remarks
UB Base L6-300ci 4.9L N/A CARB Y w/A.T. Calif. Emissions w/I.D
E4EF-ABA/ABB Base L6-300ci 4.9L N/A CARB Y HIGH ALT W/MT
E4EF-ABA/ABB/ACA/ACB Base L6-300ci 4.9L N/A CARB Y FED W/MT
E4EF-ACA/ACB Base L6-300ci 4.9L N/A CARB Y HIGH ALT W/MT
E4EF-NA Base L6-300ci 4.9L N/A CARB Y Standard System
E4EF-NA/NB Base L6-300ci 4.9L N/A CARB Y CAL W/MT
E4EF-NB Base L6-300ci 4.9L N/A CARB Y Standard System
E4EF-UA Base L6-300ci 4.9L N/A CARB Y Standard System
E4EF-UA Base L6-300ci 4.9L N/A CARB Y w/A.T. Calif. Emissions w/I.D
E4EF-UA/UB Base L6-300ci 4.9L N/A CARB Y CAL W/AT
E4EF-UB Base L6-300ci 4.9L N/A CARB Y Standard System
E5DF-AA Base L6-300ci 4.9L N/A CARB Y w/A.T. Calif. Emissions w/I.D
E5DF-AA Base L6-300ci 4.9L N/A CARB Y Standard System
E5DF-AA/MA/ZA/ZB Base L6-300ci 4.9L N/A CARB Y FED W/AT
E5DF-GA Base L6-300ci 4.9L N/A CARB Y Standard System
E5DF-GA/HA/JA Base L6-300ci 4.9L N/A CARB Y HIGH ALT W/MT
E5DF-GA/HA/JA/LA/SA Base L6-300ci 4.9L N/A CARB Y FED W/MT
E5DF-LA Base L6-300ci 4.9L N/A CARB Y Standard System
E5DF-LA/SA Base L6-300ci 4.9L N/A CARB Y HIGH ALT W/MT
E5TF-MB Base V8-351ci 5.8L N/A CARB H Standard System
E6TF-ABA/GA/JA/JC/KA/TA Base V8-302ci 5.0L N/A FI N W/AT
E6TF-SA Base V8-302ci 5.0L N/A FI N w/A.T. Calif. Emissions w/I.D
E6TF-UA/XA/YA/ZA Base V8-302ci 5.0L N/A FI N W/AT
E6TF-VA Base V8-302ci 5.0L N/A FI N Standard System
E6TF-VA Base V8-302ci 5.0L N/A FI N W/MT
E6TF-XA Base V8-302ci 5.0L N/A FI N Standard System
E6TF-YA Base V8-302ci 5.0L N/A FI N w/A.T. Calif. Emissions w/I.D
E6TF-YA Base V8-302ci 5.0L N/A FI N Standard System
E6TF-ZA Base V8-302ci 5.0L N/A FI N Standard System
1987 OEM# Sub Model Engine Type Liters Engine Description Fuel Delivery VIN CODE Remarks
All Base V8-351ci 5.8L N/A CARB H Standard System
AEB Base L6-300ci 4.9L N/A FI Y w/I.D
AMB Base V8-302ci 5.0L N/A FI N w/I.D
ANB Base V8-302ci 5.0L N/A FI N w/I.D
E7TF-AAB Base L6-300ci 4.9L N/A FI Y w/I.D
E7TF-AEA Base L6-300ci 4.9L N/A FI Y w/I.D
E7TF-ALA Base L6-300ci 4.9L N/A FI Y Standard System
E7TF-AMA Base V8-302ci 5.0L N/A FI N w/I.D
E7TF-AMA/AMB/ANA/ANB Base V8-302ci 5.0L N/A FI N W/MT
E7TF-ANA Base V8-302ci 5.0L N/A FI N w/I.D
E7TF-ANA Base V8-302ci 5.0L N/A FI N Standard System
E7TF-ANB Base V8-302ci 5.0L N/A FI N Standard System
E7TF-ATA Base V8-302ci 5.0L N/A FI N Standard System
E7TF-ATA/ATB/AUA/AUB/AVC Base V8-302ci 5.0L N/A FI N W/AT
E7TF-AUA Base V8-302ci 5.0L N/A FI N Standard System
E7TF-AUB Base V8-302ci 5.0L N/A FI N Standard System
E7TF-AXA Base V8-302ci 5.0L N/A FI N Standard System
E7TF-AXA/AXB/AYA/AYB/AZA Base V8-302ci 5.0L N/A FI N W/AT
E7TF-AXB Base V8-302ci 5.0L N/A FI N Standard System
E7TF-AZC/BBA/BCA/BCB Base V8-302ci 5.0L N/A FI N W/AT
E7TF-BCA Base V8-302ci 5.0L N/A FI N Standard System
E7TF-KB Base L6-300ci 4.9L N/A FI Y Standard System
E7TF-LA Base L6-300ci 4.9L N/A FI Y Standard System
E7TF-LC Base L6-300ci 4.9L N/A FI Y Standard System
E7TF-RA Base L6-300ci 4.9L N/A FI Y Standard System
E7TF-RA/RB Base L6-300ci 4.9L N/A FI Y W/MT
E7TF-RB Base L6-300ci 4.9L N/A FI Y Standard System
E7TF-VA Base L6-300ci 4.9L N/A FI Y Standard System
E7TF-XA/XB/XC/ZA/ZB/ZC Base L6-300ci 4.9L N/A FI Y W/AT
E7TF-XC Base L6-300ci 4.9L N/A FI Y Standard System
E8TF-AAB Base L6-300ci 4.9L N/A FI Y Standard System
E8TF-AGA Base V8-302ci 5.0L N/A FI N Standard System
E8TF-BRA Base L6-300ci 4.9L N/A FI Y Standard System
E8TF-BSA Base L6-300ci 4.9L N/A FI Y Standard System
E8TF-CDA Base L6-300ci 4.9L N/A FI Y Standard System
E8TF-CFA Base L6-300ci 4.9L N/A FI Y Standard System
E8TF-CKA Base L6-300ci 4.9L N/A FI Y Standard System
E8TF-CLA Base L6-300ci 4.9L N/A FI Y Standard System
E8TF-CMA Base L6-300ci 4.9L N/A FI Y Standard System
E8TF-CNA Base L6-300ci 4.9L N/A FI Y Standard System
E8TF-EA Base V8-302ci 5.0L N/A FI N Standard System
E8TF-FA Base V8-302ci 5.0L N/A FI N Standard System
E9TF-ALA Base V8-302ci 5.0L N/A FI N Standard System
1988 OEM# Sub Model Engine Type Liters Engine Description Fuel Delivery VIN CODE Remarks
ABB Base L6-300ci 4.9L N/A FI Y w/I.D
E7TF-CAA Base L6-300ci 4.9L N/A FI Y Standard System
E7TF-CDA Base L6-300ci 4.9L N/A FI Y Standard System
E7TF-KA Base L6-300ci 4.9L N/A FI Y Standard System
E7TF-KB Base L6-300ci 4.9L N/A FI Y Standard System
E7TF-LC Base L6-300ci 4.9L N/A FI Y Standard System
E7TF-RB Base L6-300ci 4.9L N/A FI Y Standard System
E7TF-VA Base L6-300ci 4.9L N/A FI Y Standard System
E8TD-ARA/ARB Base V8-351ci 5.8L N/A FI H HIGH ALT
E8TF-AAA Base L6-300ci 4.9L N/A FI Y w/I.D
E8TF-AAA Base L6-300ci 4.9L N/A FI Y Standard System
E8TF-AAB Base L6-300ci 4.9L N/A FI Y w/I.D
E8TF-AAB Base L6-300ci 4.9L N/A FI Y Standard System
E8TF-ABA Base L6-300ci 4.9L N/A FI Y w/I.D
E8TF-ABA Base L6-300ci 4.9L N/A FI Y Standard System
E8TF-ABA/ABB Base L6-300ci 4.9L N/A FI Y HIGH ALT W/MT
E8TF-ABB Base L6-300ci 4.9L N/A FI Y Standard System
E8TF-AEA Base V8-302ci 5.0L N/A FI N Standard System
E8TF-AEA Base V8-302ci 5.0L N/A FI N w/I.D
E8TF-AEA/AEB Base V8-302ci 5.0L N/A FI N W/MT
E8TF-AEB Base V8-302ci 5.0L N/A FI N Standard System
E8TF-AEB Base V8-302ci 5.0L N/A FI N w/I.D
E8TF-AGA Base V8-302ci 5.0L N/A FI N Standard System
E8TF-AGA Base V8-302ci 5.0L N/A FI N FED W/AT
E8TF-AKA Base V8-351ci 5.8L N/A FI H Standard System
E8TF-AKA Base V8-351ci 5.8L N/A FI H w/I.D
E8TF-AKA Base V8-351ci 5.8L N/A FI H FED
E8TF-ALA Base V8-351ci 5.8L N/A FI H Standard System
E8TF-ALA Base V8-351ci 5.8L N/A FI H w/I.D
E8TF-ALB Base V8-351ci 5.8L N/A FI H Standard System
E8TF-ANA Base V8-351ci 5.8L N/A FI H Standard System
E8TF-ANA Base V8-351ci 5.8L N/A FI H FED
E8TF-ANB Base V8-351ci 5.8L N/A FI H Standard System
E8TF-APA/APB Base V8-351ci 5.8L N/A FI H CAL
E8TF-APB Base V8-351ci 5.8L N/A FI H Standard System
E8TF-ARB Base V8-351ci 5.8L N/A FI H Standard System
E8TF-CCA Base L6-300ci 4.9L N/A FI Y W/AT
E8TF-CDA Base L6-300ci 4.9L N/A FI Y Standard System
E8TF-CFA Base L6-300ci 4.9L N/A FI Y Standard System
E8TF-CFA Base L6-300ci 4.9L N/A FI Y W/AT
E8TF-CKA Base L6-300ci 4.9L N/A FI Y Standard System
E8TF-CKA Base L6-300ci 4.9L N/A FI Y FED W/MT
E8TF-CLA Base L6-300ci 4.9L N/A FI Y FED W/MT
E8TF-CLA Base L6-300ci 4.9L N/A FI Y Standard System
E8TF-CMA Base L6-300ci 4.9L N/A FI Y Standard System
E8TF-CMA Base L6-300ci 4.9L N/A FI Y CAL W/MT
E8TF-CNA Base L6-300ci 4.9L N/A FI Y Standard System
E8TF-CPA Base V8-302ci 5.0L N/A FI N Standard System
E8TF-CSA Base V8-302ci 5.0L N/A FI N HIGH ALT
E8TF-EA Base V8-302ci 5.0L N/A FI N Standard System
E8TF-EA Base V8-302ci 5.0L N/A FI N CAL W/AT
E8TF-FA Base V8-302ci 5.0L N/A FI N Standard System
E8TF-FA Base V8-302ci 5.0L N/A FI N FED W/AT
E8TF-JA Base V8-302ci 5.0L N/A FI N Standard System
E8TF-JA Base V8-302ci 5.0L N/A FI N FED W/AT
E8TF-YA Base L6-300ci 4.9L N/A FI Y Standard System
E8TF-YA Base L6-300ci 4.9L N/A FI Y FED W/MT
E8TF-ZA Base L6-300ci 4.9L N/A FI Y Standard System
E8TF-ZB Base L6-300ci 4.9L N/A FI Y Standard System
E9TF-ALA Base V8-302ci 5.0L N/A FI N Standard System
E9TF-ARA Base V8-302ci 5.0L N/A FI N Standard System
E9TF-AUA Base V8-302ci 5.0L N/A FI N Standard System
E9TF-ZC Base V8-351ci 5.8L N/A FI H Standard System
1989 OEM# Sub Model Engine Type Liters Engine Description Fuel Delivery VIN CODE Remarks
ABB Base L6-300ci 4.9L N/A FI Y w/I.D
AUB Base V8-351ci 5.8L N/A FI H w/I.D
AUC Base V8-351ci 5.8L N/A FI H w/I.D
E8TF-AAA Base L6-300ci 4.9L N/A FI Y w/I.D
E8TF-AAA Base L6-300ci 4.9L N/A FI Y Standard System
E8TF-AAA/AAB Base L6-300ci 4.9L N/A FI Y CAL W/MT
E8TF-AAB Base L6-300ci 4.9L N/A FI Y Standard System
E8TF-ABA Base L6-300ci 4.9L N/A FI Y w/I.D
E8TF-ABA Base L6-300ci 4.9L N/A FI Y Standard System
E8TF-ABA/ABB Base L6-300ci 4.9L N/A FI Y HIGH ALT W/MT
E8TF-ABB Base L6-300ci 4.9L N/A FI Y Standard System
E8TF-AEA Base V8-302ci 5.0L N/A FI N Standard System
E8TF-AEA/AEB Base V8-302ci 5.0L N/A FI N W/MT
E8TF-AEB Base V8-302ci 5.0L N/A FI N Standard System
E8TF-AEB Base V8-302ci 5.0L N/A FI N w/I.D
E8TF-AGA Base V8-302ci 5.0L N/A FI N FED W/AT
E8TF-AGA Base V8-302ci 5.0L N/A FI N Standard System
E8TF-AGA Base V8-302ci 5.0L N/A FI N w/I.D
E8TF-ATB Base V8-351ci 5.8L N/A FI H w/I.D
E8TF-AUA Base V8-351ci 5.8L N/A FI H w/I.D
E8TF-BRA Base L6-300ci 4.9L N/A FI Y Standard System
E8TF-BSA Base L6-300ci 4.9L N/A FI Y W/AT
E8TF-BTA Base L6-300ci 4.9L N/A FI Y Standard System
E8TF-BTA Base L6-300ci 4.9L N/A FI Y W/AT
E8TF-CDA Base L6-300ci 4.9L N/A FI Y Standard System
E8TF-CFA Base L6-300ci 4.9L N/A FI Y Standard System
E8TF-CKA Base L6-300ci 4.9L N/A FI Y Standard System
E8TF-CKA Base L6-300ci 4.9L N/A FI Y FED W/MT
E8TF-CLA Base L6-300ci 4.9L N/A FI Y FED W/MT
E8TF-CLA Base L6-300ci 4.9L N/A FI Y Standard System
E8TF-CMA Base L6-300ci 4.9L N/A FI Y Standard System
E8TF-CNA Base L6-300ci 4.9L N/A FI Y Standard System
E8TF-CPA Base V8-302ci 5.0L N/A FI N Standard System
E8TF-CSA Base V8-302ci 5.0L N/A FI N Standard System
E8TF-CSA Base V8-302ci 5.0L N/A FI N HIGH ALT
E8TF-EA Base V8-302ci 5.0L N/A FI N CAL W/AT
E8TF-EA Base V8-302ci 5.0L N/A FI N Standard System
E8TF-FA Base V8-302ci 5.0L N/A FI N FED W/AT
E8TF-FA Base V8-302ci 5.0L N/A FI N Standard System
E8TF-HA Base V8-302ci 5.0L N/A FI N Standard System
E8TF-JA Base V8-302ci 5.0L N/A FI N FED W/AT
E8TF-JA Base V8-302ci 5.0L N/A FI N Standard System
E8TF-YA Base L6-300ci 4.9L N/A FI Y FED W/MT
E8TF-YB Base L6-300ci 4.9L N/A FI Y Standard System
E8TF-ZB Base L6-300ci 4.9L N/A FI Y Standard System
E9TF-AAB Base L6-300ci 4.9L N/A FI Y w/I.D
E9TF-AAB Base V8-351ci 5.8L N/A FI H Standard System
E9TF-AAB Base V8-351ci 5.8L N/A FI H CAL
E9TF-AAC Base V8-351ci 5.8L N/A FI H Standard System
E9TF-ABB Base V8-351ci 5.8L N/A FI H Standard System
E9TF-ABB/ABC/ZB Base V8-351ci 5.8L N/A FI H FED
E9TF-ABC Base V8-351ci 5.8L N/A FI H Standard System
E9TF-ACB Base V8-351ci 5.8L N/A FI H CAL
E9TF-ALA Base V8-302ci 5.0L N/A FI N Standard System
E9TF-AMA Base V8-302ci 5.0L N/A FI N Standard System
E9TF-APA Base V8-302ci 5.0L N/A FI N Standard System
E9TF-ARA Base V8-302ci 5.0L N/A FI N Standard System
E9TF-AUA Base V8-302ci 5.0L N/A FI N Standard System
E9TF-ZC Base V8-351ci 5.8L N/A FI H Standard System
1990 OEM# Sub Model Engine Type Liters Engine Description Fuel Delivery VIN CODE Remarks
AFA Base V8-351ci 5.8L N/A FI H w/I.D
AFB Base V8-351ci 5.8L N/A FI H w/I.D
AJB Base V8-302ci 5.0L N/A FI N w/I.D
E8TF-AJA Base V8-302ci 5.0L N/A FI N w/I.D
E9TF-ADA Base V8-351ci 5.8L N/A FI H w/I.D
E9TF-AEB Base V8-351ci 5.8L N/A FI H w/I.D
E9TF-AJA Base V8-302ci 5.0L N/A FI N w/I.D
E9TF-ALA Base V8-302ci 5.0L N/A FI N FED W/AOT
E9TF-ALA Base V8-302ci 5.0L N/A FI N Standard System
E9TF-AMA Base V8-302ci 5.0L N/A FI N CAL W/AOT
E9TF-AMA Base V8-302ci 5.0L N/A FI N Standard System
E9TF-APA Base V8-302ci 5.0L N/A FI N HIGH ALT W/AOT
E9TF-APA Base V8-302ci 5.0L N/A FI N Standard System
E9TF-ARA Base V8-302ci 5.0L N/A FI N W/AT C6
E9TF-ARA Base V8-302ci 5.0L N/A FI N Standard System
F0PF-ACA Base L6-300ci 4.9L N/A FI Y w/I.D
F0PF-ADA Base L6-300ci 4.9L N/A FI Y Standard System
F0PF-ADA Base L6-300ci 4.9L N/A FI Y w/I.D
F0PF-AHA Base L6-300ci 4.9L N/A FI Y Standard System
F0PF-DA Base V8-302ci 5.0L N/A FI N Standard System
F0PF-EA Base V8-302ci 5.0L N/A FI N HIGH ALT W.AT E4OD
F0PF-PA Base L6-300ci 4.9L N/A FI Y Standard System
F0PF-UA Base L6-300ci 4.9L N/A FI Y Standard System
F0TF-AAA Base L6-300ci 4.9L N/A FI Y Standard System
F0TF-AAA/AAB Base L6-300ci 4.9L N/A FI Y FED W/4-SPD MT
F0TF-AAB Base L6-300ci 4.9L N/A FI Y Standard System
F0TF-AFA Base L6-300ci 4.9L N/A FI Y FED W/AT
F0TF-AFA Base L6-300ci 4.9L N/A FI Y Standard System
F0TF-AGA Base L6-300ci 4.9L N/A FI Y Standard System
F0TF-AGA Base L6-300ci 4.9L N/A FI Y CAL W/AT
F0TF-BA Base L6-300ci 4.9L N/A FI Y Standard System
F0TF-BAA/BAB Base V8-302ci 5.0L N/A FI N FED W/AT E4OD
F0TF-BAB Base V8-302ci 5.0L N/A FI N Standard System
F0TF-BB Base L6-300ci 4.9L N/A FI Y Standard System
F0TF-BB Base L6-300ci 4.9L N/A FI Y W/5-SPD MT
F0TF-BDA Base V8-302ci 5.0L N/A FI N Standard System
F0TF-BDA/BDB Base V8-302ci 5.0L N/A FI N CAL W/AT E4OD
F0TF-BDB Base V8-302ci 5.0L N/A FI N Standard System
F0TF-CA Base L6-300ci 4.9L N/A FI Y Standard System
F0TF-CB Base L6-300ci 4.9L N/A FI Y Standard System
F0TF-CB Base L6-300ci 4.9L N/A FI Y W/5-SPD MT
F0TF-DA Base L6-300ci 4.9L N/A FI Y CAL W/4-SPD MT
F0TF-DA Base L6-300ci 4.9L N/A FI Y Standard System
F0TF-DB Base L6-300ci 4.9L N/A FI Y Standard System
F0TF-NA Base V8-351ci 5.8L N/A FI H FED
F0TF-NA Base V8-351ci 5.8L N/A FI H Standard System
F0TF-PC Base V8-351ci 5.8L N/A FI H CAL
F0TF-RD Base V8-351ci 5.8L N/A FI H CAL
F0TF-TA Base V8-302ci 5.0L N/A FI N W/MT
F0TF-TA Base V8-302ci 5.0L N/A FI N Standard System
F0TF-UA Base V8-302ci 5.0L N/A FI N HIGH ALT W/AT C6
F1TF-ATA Base V8-351ci 5.8L N/A FI H Standard System
F1TF-TA Base V8-302ci 5.0L N/A FI N Standard System
1991
OEM# Sub Model Engine Type Liters Engine Description Fuel Delivery VIN CODE Remarks
AFA Base V8-351ci 5.8L N/A FI H w/I.D
AFB Base V8-351ci 5.8L N/A FI H w/I.D
E9TF-ADA Base V8-351ci 5.8L N/A FI H w/I.D
E9TF-AEB Base V8-351ci 5.8L N/A FI H w/I.D
F1TF-ABA Base L6-300ci 4.9L N/A FI Y w/I.D
F1TF-ACA Base L6-300ci 4.9L N/A FI Y w/I.D
F1TF-ACA Base L6-300ci 4.9L N/A FI Y W/4-SPD MT
F1TF-ADA Base L6-300ci 4.9L N/A FI Y W/5-SPD MT
F1TF-ADA Base L6-300ci 4.9L N/A FI Y Standard System
F1TF-AEA Base L6-300ci 4.9L N/A FI Y W/4 & 5-SPD MT
F1TF-AFA Base L6-300ci 4.9L N/A FI Y CAL W/4 & 5-SPD MT
F1TF-AMA Base L6-300ci 4.9L N/A FI Y Standard System
F1TF-AMA Base L6-300ci 4.9L N/A FI Y CAL W/AT
F1TF-ANA Base L6-300ci 4.9L N/A FI Y FED W/AT
F1TF-ASA Base V8-351ci 5.8L N/A FI H Standard System
F1TF-ASA Base V8-351ci 5.8L N/A FI H FED
F1TF-ATA Base V8-351ci 5.8L N/A FI H Standard System
F1TF-ATA Base V8-351ci 5.8L N/A FI H CAL
F1TF-AWA Base V8-302ci 5.0L N/A FI N w/I.D
F1TF-AYA Base V8-302ci 5.0L N/A FI N Standard System
F1TF-AYA Base V8-302ci 5.0L N/A FI N w/I.D
F1TF-AYA Base V8-302ci 5.0L N/A FI N FED W/AOT
F1TF-AZA Base V8-302ci 5.0L N/A FI N W/MT
F1TF-AZA Base V8-302ci 5.0L N/A FI N Standard System
F1TF-BDA Base V8-302ci 5.0L N/A FI N FED W/AOT
F1TF-BDA Base V8-302ci 5.0L N/A FI N Standard System
F1TF-BEA Base V8-302ci 5.0L N/A FI N CAL W/AOT
F1TF-TA Base V8-302ci 5.0L N/A FI N Standard System
F1TF-TA Base V8-302ci 5.0L N/A FI N FED W/AT E4OD
F1TF-XA/XB Base V8-302ci 5.0L N/A FI N CAL W/AT E4OD
F1TF-XB Base V8-302ci 5.0L N/A FI N Standard System
F1TF-YB Base V8-302ci 5.0L N/A FI N HIGH ALT W/AT E4OD
F1TF-YB Base V8-302ci 5.0L N/A FI N Standard System
F2TF-ASA Base L6-300ci 4.9L N/A FI Y Standard System
F2TF-ASB Base L6-300ci 4.9L N/A FI Y Standard System
F2TF-ATA Base L6-300ci 4.9L N/A FI Y Standard System
F2TF-AUA Base L6-300ci 4.9L N/A FI Y Standard System
F2TF-AUB Base L6-300ci 4.9L N/A FI Y Standard System
F2TF-AYB Base L6-300ci 4.9L N/A FI Y Standard System
F2TF-AZA Base L6-300ci 4.9L N/A FI Y
F2TF-AZB Base L6-300ci 4.9L N/A FI Y Standard System
F2TF-CA Base V8-351ci 5.8L N/A FI H FED
F2TF-CC Base V8-351ci 5.8L N/A FI H Standard System
F2TF-DA Base V8-351ci 5.8L N/A FI H CAL
F2TF-DB Base V8-351ci 5.8L N/A FI H Standard System
F2TF-RA Base V8-351ci 5.8L N/A FI H HIGH ALT
F3TF-AABMR Base L6-300ci 4.9L N/A FI Y Standard System
F3TF-TB Base L6-300ci 4.9L N/A FI Y Standard System
F3TF-XB Base L6-300ci 4.9L N/A FI Y Standard System
1992
BAC Base V8-351ci 5.8L N/A FI H w/I.D
F1TF-AHC Base L6-300ci 4.9L N/A FI Y w/I.D
F1TF-AHD Base L6-300ci 4.9L N/A FI Y w/I.D
F2TF-AAA Base V8-302ci 5.0L N/A FI N w/I.D
F2TF-ABA Base V8-302ci 5.0L N/A FI N Standard System
F2TF-ABA Base V8-302ci 5.0L N/A FI N W/MT
F2TF-ABA Base V8-302ci 5.0L N/A FI N w/I.D
F2TF-AEA Base V8-302ci 5.0L N/A FI N W/AOT
F2TF-AHA/AHB Base V8-302ci 5.0L N/A FI N FED W/AT E4OD
F2TF-AHB Base V8-302ci 5.0L N/A FI N Standard System
F2TF-AJA Base V8-302ci 5.0L N/A FI N Standard System
F2TF-AJA Base V8-302ci 5.0L N/A FI N CAL W/AT E4OD
F2TF-AJB Base V8-302ci 5.0L N/A FI N Standard System
F2TF-AKA Base V8-302ci 5.0L N/A FI N HIGH ALT W/AT E4OD
F2TF-AKA Base V8-302ci 5.0L N/A FI N Standard System
F2TF-AKB Base V8-302ci 5.0L N/A FI N Standard System
F2TF-APA Base L6-300ci 4.9L N/A FI Y FED W/MT
F2TF-ARA Base L6-300ci 4.9L N/A FI Y Standard System
F2TF-ASA Base L6-300ci 4.9L N/A FI Y Standard System
F2TF-ASA Base L6-300ci 4.9L N/A FI Y FED W/MT
F2TF-ASB Base L6-300ci 4.9L N/A FI Y Standard System
F2TF-ATA Base L6-300ci 4.9L N/A FI Y FED W/MT
F2TF-ATB Base L6-300ci 4.9L N/A FI Y Standard System
F2TF-AUA Base L6-300ci 4.9L N/A FI Y Standard System
F2TF-AUA/AUB Base L6-300ci 4.9L N/A FI Y CAL W/MT
F2TF-AUB Base L6-300ci 4.9L N/A FI Y Standard System
F2TF-AYA Base L6-300ci 4.9L N/A FI Y Standard System
F2TF-AYA/AYB Base L6-300ci 4.9L N/A FI Y CAL W/AT
F2TF-AZA/AZB Base L6-300ci 4.9L N/A FI Y FED W/AT
F2TF-AZB Base L6-300ci 4.9L N/A FI Y Standard System
F2TF-BAA Base V8-351ci 5.8L N/A FI H w/I.D
F2TF-BAB Base V8-351ci 5.8L N/A FI H w/I.D
F2TF-BSA Base V8-351ci 5.8L N/A FI H Standard System
F2TF-BSA Base V8-351ci 5.8L N/A FI H CAL
F2TF-BSB Base V8-351ci 5.8L N/A FI H Standard System
F2TF-CB Base V8-351ci 5.8L N/A FI H Standard System
F2TF-CC Base V8-351ci 5.8L N/A FI H Standard System
F2TF-DA Base V8-351ci 5.8L N/A FI H Standard System
F2TF-DA Base V8-351ci 5.8L N/A FI H CAL
F2TF-DB Base V8-351ci 5.8L N/A FI H Standard System
F2TF-MA Base V8-351ci 5.8L N/A FI H FED
F2TF-RA Base V8-351ci 5.8L N/A FI H FED
F2TF-ZA Base V8-302ci 5.0L N/A FI N W/AOT
F3PF-KA Base V8-302ci 5.0L N/A FI N Standard System
F3PF-MA Base V8-302ci 5.0L N/A FI N Standard System
F3TF-AAA Base L6-300ci 4.9L N/A FI Y Standard System
F3TF-AAC Base L6-300ci 4.9L N/A FI Y Standard System
F3TF-AHB Base V8-302ci 5.0L N/A FI N Standard System
F3TF-AKA Base V8-302ci 5.0L N/A FI N Standard System
F3TF-TB Base L6-300ci 4.9L N/A FI Y Standard System
F3TF-YA Base L6-300ci 4.9L N/A FI Y Standard System
1993
F2TF-AAA Base V8-302ci 5.0L N/A FI N w/I.D
F2TF-ABA Base V8-302ci 5.0L N/A FI N W/MT
F2TF-ABA Base V8-302ci 5.0L N/A FI N w/I.D
F2TF-ABA Base V8-302ci 5.0L N/A FI N Standard System
F2TF-AEA Base V8-302ci 5.0L N/A FI N W/AOT
F2TF-AHA Base V8-302ci 5.0L N/A FI N Standard System
F2TF-AHA/AHB Base V8-302ci 5.0L N/A FI N FED W/AT E4OD
F2TF-AHB Base V8-302ci 5.0L N/A FI N Standard System
F2TF-AJA Base V8-302ci 5.0L N/A FI N Standard System
F2TF-AJA Base V8-302ci 5.0L N/A FI N CAL W/AT E4OD
F2TF-AJB Base V8-302ci 5.0L N/A FI N Standard System
F2TF-AKA Base V8-302ci 5.0L N/A FI N Standard System
F2TF-AKA Base V8-302ci 5.0L N/A FI N HIGH ALT W/AT E4OD
F2TF-AKB Base V8-302ci 5.0L N/A FI N Standard System
F2TF-APA Base L6-300ci 4.9L N/A FI Y FED W/MT
F2TF-ASA Base L6-300ci 4.9L N/A FI Y FED W/MT
F2TF-ATA Base L6-300ci 4.9L N/A FI Y FED W/MT
F2TF-AUA/AUB Base L6-300ci 4.9L N/A FI Y CAL W/MT
F2TF-AYA/AYB Base L6-300ci 4.9L N/A FI Y CAL W/AT
F2TF-AZA/AZB Base L6-300ci 4.9L N/A FI Y FED W/AT
F2TF-BSA Base V8-351ci 5.8L N/A FI H CAL
F2TF-BSA Base V8-351ci 5.8L N/A FI H Standard System
F2TF-BSB Base V8-351ci 5.8L N/A FI H w/I.D
F2TF-BSB Base V8-351ci 5.8L N/A FI H Standard System
F2TF-CB Base V8-351ci 5.8L N/A FI H Standard System
F2TF-CC Base V8-351ci 5.8L N/A FI H Standard System
F2TF-CC Base V8-351ci 5.8L N/A FI H w/I.D
F2TF-DA Base V8-351ci 5.8L N/A FI H CAL
F2TF-MA Base V8-351ci 5.8L N/A FI H FED
F2TF-RA Base V8-351ci 5.8L N/A FI H FED
F2TF-ZA Base V8-302ci 5.0L N/A FI N W/AOT
F3TF-AKA Base V8-302ci 5.0L N/A FI N Standard System
F3TF-AKA Base V8-302ci 5.0L N/A FI N W/MT
1994
F2TF-APA Base V8-302ci 5.0L N/A FI N FED W/MT
F2TF-ASA Base V8-302ci 5.0L N/A FI N FED W/MT
F2TF-ATA Base V8-302ci 5.0L N/A FI N FED W/MT
F2TF-AUA/AUB Base V8-302ci 5.0L N/A FI N CAL W/MT
F2TF-AYA/AYB Base V8-302ci 5.0L N/A FI N CAL W/AT
F2TF-AZA/AZB Base V8-302ci 5.0L N/A FI N FED W/AT
F3TF-AC Base V8-351ci 5.8L N/A FI H w/I.D
F3TF-AD Base V8-351ci 5.8L N/A FI H w/I.D
F4PF-AA Base V8-302ci 5.0L N/A FI N Standard System
F4PF-AA Base V8-302ci 5.0L N/A FI N w/I.D
F4PF-BA Base V8-302ci 5.0L N/A FI N w/I.D
F4TF-AAA Base V8-302ci 5.0L N/A FI N Standard System
F4TF-AAB Base V8-302ci 5.0L N/A FI N Standard System
F4TF-ABA/ABB Base V8-302ci 5.0L N/A FI N CAL/NY W/AT
F4TF-AVA Base V8-302ci 5.0L N/A FI N Standard System
F4TF-AVA Base V8-302ci 5.0L N/A FI N W/MT
F4TF-SA/SB/SC Base V8-302ci 5.0L N/A FI N FED W/AT
F4TF-SB Base V8-351ci 5.8L N/A FI H FED
F4TF-TA Base V8-351ci 5.8L N/A FI H Standard System
F4TF-TA Base V8-351ci 5.8L N/A FI H FED
F4TF-TB Base V8-351ci 5.8L N/A FI H Standard System
F4TF-UA/UB Base V8-351ci 5.8L N/A FI H CAL/NY
1995
F4TF-AAA Base V8-302ci 5.0L N/A FI N w/I.D
F4TF-ABA Base V8-302ci 5.0L N/A FI N w/I.D
F4TF-AHB Base V8-351ci 5.8L N/A FI H w/I.D
F4TF-AJB Base V8-351ci 5.8L N/A FI H w/I.D
F4TF-AVA Base V8-302ci 5.0L N/A FI N Standard System
F4TF-AVA Base V8-302ci 5.0L N/A FI N W/MT
F5TF-AAA Base V8-351ci 5.8L N/A FI H CAL/ME
F5TF-AAB Base V8-351ci 5.8L N/A FI H Standard System
F5TF-BXA Base V8-351ci 5.8L N/A FI H Standard System
F5TF-BXA Base V8-351ci 5.8L N/A FI H FED
F5TF-BYA Base V8-351ci 5.8L N/A FI H Standard System
F5TF-GB Base V8-302ci 5.0L N/A FI N CAL/MA W/AT
F5TF-JB Base V8-302ci 5.0L N/A FI N Standard System
F5TF-JB Base V8-302ci 5.0L N/A FI N FED W/AT
F5TF-YB Base V8-351ci 5.8L N/A FI H Standard System
F5TF-YB Base V8-351ci 5.8L N/A FI H FED
1996
F6TF-ARA/ARB/ARD Base V8-351ci 5.8L N/A FI H CAL/MA
F6TF-ASA/ASB/ASD Base V8-351ci 5.8L N/A FI H FED
F6TF-JD/JE Base V8-302ci 5.0L N/A FI N W/MT
F6TF-JF Base V8-302ci 5.0L N/A FI N Standard System
F6TF-JF Base V8-302ci 5.0L N/A FI N W/MT
F6TF-PC/PD/PE Base V8-302ci 5.0L N/A FI N W/AT
F6TF-PE Base V8-302ci 5.0L N/A FI N Standard System
F6TF-TC/TD Base V8-302ci 5.0L N/A FI N CAL/MA/NY W/AT
Joined
·
7,399 Posts
Joined
·
7,399 Posts
That's what I said. H is 351W.smileybry said:
Joined
·
2 Posts
This is a dumb question..
I just pulled the PCm out of my 91 that "supposed to have been a 5.0L w a manual trans Now has a 5.*l w E4OD and it will not shift right.. Im getting that 1 -3rd and then locks in OD even w OD switch off.
.Pcm is a E1A1 F1TF-12A650 and I think this is the problem.. can I get some Help Please..
Thank you
I just pulled the PCm out of my 91 that "supposed to have been a 5.0L w a manual trans Now has a 5.*l w E4OD and it will not shift right.. Im getting that 1 -3rd and then locks in OD even w OD switch off.
.Pcm is a E1A1 F1TF-12A650 and I think this is the problem.. can I get some Help Please..
Thank you
Joined
·
9,696 Posts
I know this is old. I wonder if he found his solution.
I found the E1A1 catch code listed as a Speed Density, bank fire, E4OD, 5.0 ECU.
Since you have a 5.8, I dont think they bothered finding the correct ecu for the engine. If it was Mass Air, I dont think this would be an issue, but since its speed density, the tables are possibly different between 5.0 and 5.8.
Heres a list of Compatible EEC's I lifted from the cached version of Oldfuelinjection.com.
39D1 5.8 Bronco, F-x50 E-x50 SD-Bank
8QF 5.8 Bronco, F-x50 E-x50 SD-Bank
8QJ 5.8 Bronco, F-x50 E-x50 SD-Bank / C6
8QN 5.8 Bronco, F-x50 E-x50 SD-Bank
A0C2 5.8 Bronco, F-x50 E-x50 SD-Bank / E4OD
A0C3 5.8 Bronco, F-x50 E-x50 SD-Bank
A2Z 5.8 Bronco, F-x50 E-x50 SD-Bank
A2Z1 5.8 Bronco, F-x50 E-x50 SD-Bank
Ban1 5.8 Bronco, F-x50 E-x50 SD-Bank / E4OD
BTQ 5.8 Bronco, F-x50 E-x50 SD-Bank
C1Z 5.8 Bronco, F-x50 E-x50 SD-Bank
C2S2 5.8 Bronco, F-x50 E-x50 SD-Bank / E4OD
C9S1 5.8 Bronco, F-x50 E-x50 SD-Bank / E4OD
D1X 5.8 Bronco, F-x50 E-x50 SD-Bank
D9D1 5.8 Bronco, F-x50 E-x50 SD-Bank
D9L1 5.8 Bronco, F-x50 E-x50 SD-Bank
D9J2 5.8 Bronco, F-x50 E-x50 SD-Bank / C6
E9C 5.8 Bronco, F-x50 E-x50 SD-Bank / C6
E9C1 5.8 Bronco, F-x50 E-x50 SD-Bank / C6
E0D 5.8 Bronco, F-x50 E-x50 SD-Bank / E4OD
FK1 5.8 Bronco, F-x50 E-x50 SD-Bank
JAG2 5.8 Bronco, F-x50 E-x50 SD-Bank / E4OD
S0M 5.8 Bronco, F-x50 E-x50 SD-Bank / E4OD
U2U1 5.8 Bronco, F-x50 E-x50 SD-Bank
W2J 5.8 Bronco, F-x50 E-x50 SD-Bank
X0P 5.8 Bronco, F-x50 E-x50 SD-Bank
X2Z2 5.8 Bronco, F-x50 E-x50 SD-Bank / E4OD
Z2D1 5.8 Bronco, F-x50 E-x50 SD-Bank
You will want any of the EEC's specified to work with an E4OD.
It would also be a good idea to pull the EEC and look inside to see if anything is burnt. Mine has 2 burn spots, I pulled another one from the junk yard and it has the same 2 burn spots. I Had to order a good one from Ebay..
If you wanted to do a Mass Air conversion, then you will need one of these... which are for 5.0, but still work perfectly fine for a 5.8 with a E4OD.
HOG0 5.0 Bronco, F-x50 E-x50 MAF / E4OD / F4TF-12A650-AAA - Requires 94 Solenoid Pack in E4OD
U4X0 5.0 Bronco, F-x50 E-x50 MAF / E4OD / F4PF-12A650-AA - Requires 94 Solenoid Pack in E4OD
VEX1 5.0 Bronco, F-x50 E-x50 MAF / E4OD / F5TF-12A650-HB - Requires 95 Solenoid Pack in E4OD
WAY1 5.0 Bronco, F-x50 E-x50 MAF / E4OD / F5TF-12A650-JB - Requires 95 Solenoid Pack in E4OD
I found the E1A1 catch code listed as a Speed Density, bank fire, E4OD, 5.0 ECU.
Since you have a 5.8, I dont think they bothered finding the correct ecu for the engine. If it was Mass Air, I dont think this would be an issue, but since its speed density, the tables are possibly different between 5.0 and 5.8.
Heres a list of Compatible EEC's I lifted from the cached version of Oldfuelinjection.com.
39D1 5.8 Bronco, F-x50 E-x50 SD-Bank
8QF 5.8 Bronco, F-x50 E-x50 SD-Bank
8QJ 5.8 Bronco, F-x50 E-x50 SD-Bank / C6
8QN 5.8 Bronco, F-x50 E-x50 SD-Bank
A0C2 5.8 Bronco, F-x50 E-x50 SD-Bank / E4OD
A0C3 5.8 Bronco, F-x50 E-x50 SD-Bank
A2Z 5.8 Bronco, F-x50 E-x50 SD-Bank
A2Z1 5.8 Bronco, F-x50 E-x50 SD-Bank
Ban1 5.8 Bronco, F-x50 E-x50 SD-Bank / E4OD
BTQ 5.8 Bronco, F-x50 E-x50 SD-Bank
C1Z 5.8 Bronco, F-x50 E-x50 SD-Bank
C2S2 5.8 Bronco, F-x50 E-x50 SD-Bank / E4OD
C9S1 5.8 Bronco, F-x50 E-x50 SD-Bank / E4OD
D1X 5.8 Bronco, F-x50 E-x50 SD-Bank
D9D1 5.8 Bronco, F-x50 E-x50 SD-Bank
D9L1 5.8 Bronco, F-x50 E-x50 SD-Bank
D9J2 5.8 Bronco, F-x50 E-x50 SD-Bank / C6
E9C 5.8 Bronco, F-x50 E-x50 SD-Bank / C6
E9C1 5.8 Bronco, F-x50 E-x50 SD-Bank / C6
E0D 5.8 Bronco, F-x50 E-x50 SD-Bank / E4OD
FK1 5.8 Bronco, F-x50 E-x50 SD-Bank
JAG2 5.8 Bronco, F-x50 E-x50 SD-Bank / E4OD
S0M 5.8 Bronco, F-x50 E-x50 SD-Bank / E4OD
U2U1 5.8 Bronco, F-x50 E-x50 SD-Bank
W2J 5.8 Bronco, F-x50 E-x50 SD-Bank
X0P 5.8 Bronco, F-x50 E-x50 SD-Bank
X2Z2 5.8 Bronco, F-x50 E-x50 SD-Bank / E4OD
Z2D1 5.8 Bronco, F-x50 E-x50 SD-Bank
You will want any of the EEC's specified to work with an E4OD.
It would also be a good idea to pull the EEC and look inside to see if anything is burnt. Mine has 2 burn spots, I pulled another one from the junk yard and it has the same 2 burn spots. I Had to order a good one from Ebay..
If you wanted to do a Mass Air conversion, then you will need one of these... which are for 5.0, but still work perfectly fine for a 5.8 with a E4OD.
HOG0 5.0 Bronco, F-x50 E-x50 MAF / E4OD / F4TF-12A650-AAA - Requires 94 Solenoid Pack in E4OD
U4X0 5.0 Bronco, F-x50 E-x50 MAF / E4OD / F4PF-12A650-AA - Requires 94 Solenoid Pack in E4OD
VEX1 5.0 Bronco, F-x50 E-x50 MAF / E4OD / F5TF-12A650-HB - Requires 95 Solenoid Pack in E4OD
WAY1 5.0 Bronco, F-x50 E-x50 MAF / E4OD / F5TF-12A650-JB - Requires 95 Solenoid Pack in E4OD
Then I have no I.D what it means. :toothless
Joined
·
4 Posts
1990 Bronco 5.0, 4WD, EB series, AT
I did not see this code in above lists for 90 model: E9AE-6E061-CDY
There is an additional "code" : 9-54R-R10
Any info is greatly appreciated!
I did not see this code in above lists for 90 model: E9AE-6E061-CDY
There is an additional "code" : 9-54R-R10
Any info is greatly appreciated!
Joined
·
9,696 Posts
The additional code is a calibration code that specifies what emissions equipment you have.
Here are the emission components for that calibration.
CALIBRATION PARTS LIST
NAME/DESCRIPTION ENGINEERING NO. SERVICE NO.
VALVE ASSY., (Thermactor Air By-Pass) E8TE 9B289-AA E8TZ 9B289-A
SENSOR, (EGR Valve) E7TF 9G428-AA E7TZ 9G428-A
RESERVOIR ASSY., (EGR Vacuum) D5TE 9E453-AA D5TZ 9E453-A
CONTROL ASSY., (EGR Vacuum Regulator) E53E 9J459-AA E63Z 9J459-A
VALVE ASSY., (Thermactor Air Control Solenoid Vacuum) E7TE 9H465-AA E7TZ 9H465-A
VALVE ASSY., (Thermactor Air Control Solenoid Vacuum) E7TE 9H465-BA E7TZ 9H465-B
SENSOR ASSY., (Exhaust Gas Oxygen) E93F 9F472-AA,DA, EA F03Z 9F472-A
SENSOR ASSY., (Exhaust Gas Oxygen) E73F 9F472-AA,BA, CA E73Z 9F472-A
SENSOR ASSY., (Exhaust Gas Oxygen) E9SF 9F472-BA F0SZ 9F472-B
SENSOR ASSY., (Exhaust Gas Oxygen) E77F 9F472-AA,BA E7TF 9F472-AA E7TZ 9F472-A
SENSOR ASSY., (Exhaust Gas Oxygen) E9SF 9F472-AA E97F 9F472-AA F0SZ 9F472-A
SENSOR ASSY., (Exhaust Gas Oxygen) F07F 9F472-AA F0TZ 9F472-A
SENSOR ASSY., (Manifold Absolute Pressure) E7EF 9F479-A1A,A2A E7FZ 9F479-A
VALVE ASSY., (EGR Pressure External) E7TE 9F483-F2A,F4A E7TZ 9F483-F
PUMP ASSY., (Thermactor) E5TE 9A486-DB E5TZ 9A486-D
VALVE ASSY., (Thermactor Check - 3/4-14 Thread One End - Hose Nipple One End - Upstream) E9VZ 9A487-A
VALVE ASSY., (Thermactor Check - Hose Nipple One End - Press In Tube Other End - Downstream) EZ 9A487-A
VALVE ASSY., (Thermactor Control) E47E 9F491-BA E3TZ 9F491-A
INJECTOR ASSY., (Fuel) E5TE 9F593-A3B E8TZ 9F593-D
VALVE ASSY., (Throttle Air By-Pass) E9TE 9F715-BA F0TE 9F715-B1A E9TZ 9F715-B
SENSOR ASSY., (Speed) E3AF 9E731-AB E3AZ 9E731-A
REGULATOR ASSY., (Fuel Charging Pressure) E7EE 9C968-AA E77E 9C968-AA E7FZ 9C968-A
POTENTIOMETER ASSY., (Throttle Position Sensor) E7TF 9B989-CA E7TZ 9B989-D
DISTRIBUTOR ASSY.) E5TE 12127-AA E5TZ 12127-A
SENSOR ASSY., (Engine Electronic Control Coolant Temperature) E4AF 12A648-AA E1AZ 12A648-A
PROCESSOR AND CALIBRATOR ASSY., (EEC-IV) E9TF 12A650-AM1A, AM2A E9TZ 12A650-AMA
SENSOR ASSY., (Air Charge Temperature) E4AF 12A697-AA E1AZ 12A697-A
SENSOR ASSY., (Engine Spark Knock Intensity) E3AF 12A699-AA E3AZ 12A699-A

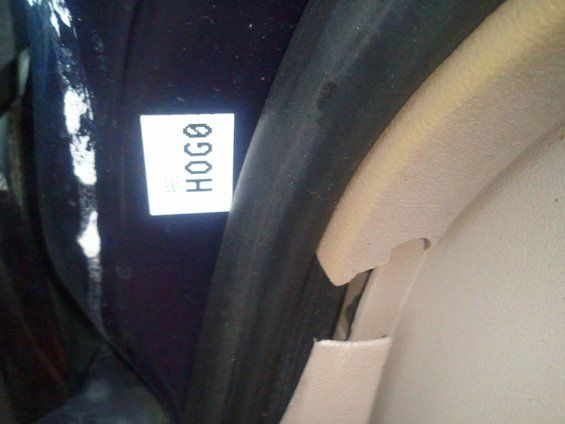

The code you are looking for that will be more helpful identifying the EEC is the Catch code. This code is typically located on a small sticker in the door jamb on the A pillar. It looks like this.
It is also located on the EEC.
Here are the emission components for that calibration.
CALIBRATION PARTS LIST
NAME/DESCRIPTION ENGINEERING NO. SERVICE NO.
VALVE ASSY., (Thermactor Air By-Pass) E8TE 9B289-AA E8TZ 9B289-A
SENSOR, (EGR Valve) E7TF 9G428-AA E7TZ 9G428-A
RESERVOIR ASSY., (EGR Vacuum) D5TE 9E453-AA D5TZ 9E453-A
CONTROL ASSY., (EGR Vacuum Regulator) E53E 9J459-AA E63Z 9J459-A
VALVE ASSY., (Thermactor Air Control Solenoid Vacuum) E7TE 9H465-AA E7TZ 9H465-A
VALVE ASSY., (Thermactor Air Control Solenoid Vacuum) E7TE 9H465-BA E7TZ 9H465-B
SENSOR ASSY., (Exhaust Gas Oxygen) E93F 9F472-AA,DA, EA F03Z 9F472-A
SENSOR ASSY., (Exhaust Gas Oxygen) E73F 9F472-AA,BA, CA E73Z 9F472-A
SENSOR ASSY., (Exhaust Gas Oxygen) E9SF 9F472-BA F0SZ 9F472-B
SENSOR ASSY., (Exhaust Gas Oxygen) E77F 9F472-AA,BA E7TF 9F472-AA E7TZ 9F472-A
SENSOR ASSY., (Exhaust Gas Oxygen) E9SF 9F472-AA E97F 9F472-AA F0SZ 9F472-A
SENSOR ASSY., (Exhaust Gas Oxygen) F07F 9F472-AA F0TZ 9F472-A
SENSOR ASSY., (Manifold Absolute Pressure) E7EF 9F479-A1A,A2A E7FZ 9F479-A
VALVE ASSY., (EGR Pressure External) E7TE 9F483-F2A,F4A E7TZ 9F483-F
PUMP ASSY., (Thermactor) E5TE 9A486-DB E5TZ 9A486-D
VALVE ASSY., (Thermactor Check - 3/4-14 Thread One End - Hose Nipple One End - Upstream) E9VZ 9A487-A
VALVE ASSY., (Thermactor Check - Hose Nipple One End - Press In Tube Other End - Downstream) EZ 9A487-A
VALVE ASSY., (Thermactor Control) E47E 9F491-BA E3TZ 9F491-A
INJECTOR ASSY., (Fuel) E5TE 9F593-A3B E8TZ 9F593-D
VALVE ASSY., (Throttle Air By-Pass) E9TE 9F715-BA F0TE 9F715-B1A E9TZ 9F715-B
SENSOR ASSY., (Speed) E3AF 9E731-AB E3AZ 9E731-A
REGULATOR ASSY., (Fuel Charging Pressure) E7EE 9C968-AA E77E 9C968-AA E7FZ 9C968-A
POTENTIOMETER ASSY., (Throttle Position Sensor) E7TF 9B989-CA E7TZ 9B989-D
DISTRIBUTOR ASSY.) E5TE 12127-AA E5TZ 12127-A
SENSOR ASSY., (Engine Electronic Control Coolant Temperature) E4AF 12A648-AA E1AZ 12A648-A
PROCESSOR AND CALIBRATOR ASSY., (EEC-IV) E9TF 12A650-AM1A, AM2A E9TZ 12A650-AMA
SENSOR ASSY., (Air Charge Temperature) E4AF 12A697-AA E1AZ 12A697-A
SENSOR ASSY., (Engine Spark Knock Intensity) E3AF 12A699-AA E3AZ 12A699-A
The code you are looking for that will be more helpful identifying the EEC is the Catch code. This code is typically located on a small sticker in the door jamb on the A pillar. It looks like this.
It is also located on the EEC.
Joined
·
27,238 Posts
Yo fishncoach,
as jowens advised.
Ask local Ford dealer service manager if the VECI info (Vacuum Diagram & Calibration Parts List for 88 & UP) is available for free; most important info to have is the Calibration Code on sticker inside drivers side door jamb or A pillar. It must match with number on the PCM ...Location pic; on PCM in a 95 5.8; with Ford Part Number by marnefist @
SM is Very Slow
Ford removed the Vehicle Emission Control Information (VECI) Decal site from the Ford site; http://www.motorcraftservice.com/ in mid-2014.
Ford rep later told me that the VECI is available @ local Ford Dealers. My dealer tech supervisor said when I asked him, "VECI, whaaat?"
Best is to visit your dealer and ask.
as jowens advised.
Ask local Ford dealer service manager if the VECI info (Vacuum Diagram & Calibration Parts List for 88 & UP) is available for free; most important info to have is the Calibration Code on sticker inside drivers side door jamb or A pillar. It must match with number on the PCM ...Location pic; on PCM in a 95 5.8; with Ford Part Number by marnefist @
SM is Very Slow
Ford removed the Vehicle Emission Control Information (VECI) Decal site from the Ford site; http://www.motorcraftservice.com/ in mid-2014.
Ford rep later told me that the VECI is available @ local Ford Dealers. My dealer tech supervisor said when I asked him, "VECI, whaaat?"
Best is to visit your dealer and ask.
Joined
·
4 Posts

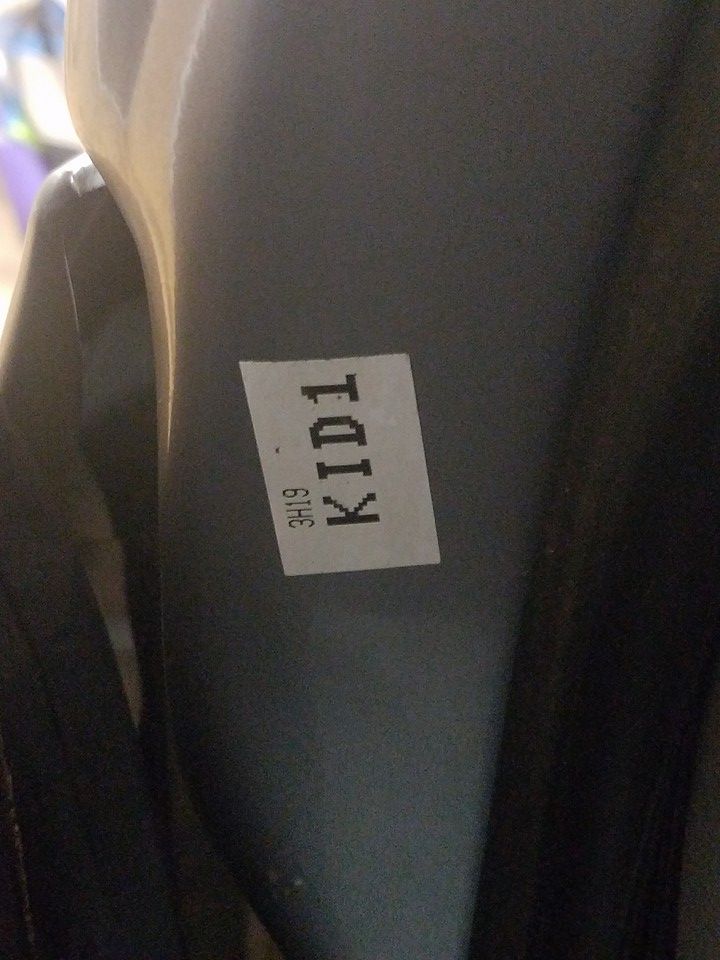

@jowens and meisk5 thanks for the info. The sticker on the door jam/pillar A is where I got those numbers. Unfortunately, my sticker doesn't look like the ones you posted. Could be due to different model years. It looks like I'm going to have to pull the Ecu. I've had it at a mechanic looking at several things. Most importantly, the random, rough, skipping and bucking when engine is pulling a hill. The PO replaced a bunch of stuff trying to improve the performance but never replaced ecu. Mechanic confirmed a bunch of stuff had be replaced and symptoms were leading him to ecu.
Joined
·
4 Posts
Again, thank you for the information !!
Update: Replaced ECU and engine performance improved but did not fix the issue. As noted earlier, PO replaced a bunch of stuff trying to solve this issue.
Performance issue-engine idles perfectly before and after ecu replacement. We recently had an "arctic cold snap" in Alabama and I drove the bronco to work (before ecu replacement) and there was zero skipping and bucking. Under normal weather conditions in Alabama, It seems that as the engine warms to operating temp, the skipping and bucking worsens. It is most noticeable when pulling a hill.
In my search on FSB, I keep circling back to TPS and some other air/fuel mixture sensors. It seems if it were mechanical, atmosphere wouldn't matter.
Looking to purchase a code reader soon.
Update: Replaced ECU and engine performance improved but did not fix the issue. As noted earlier, PO replaced a bunch of stuff trying to solve this issue.
Performance issue-engine idles perfectly before and after ecu replacement. We recently had an "arctic cold snap" in Alabama and I drove the bronco to work (before ecu replacement) and there was zero skipping and bucking. Under normal weather conditions in Alabama, It seems that as the engine warms to operating temp, the skipping and bucking worsens. It is most noticeable when pulling a hill.
In my search on FSB, I keep circling back to TPS and some other air/fuel mixture sensors. It seems if it were mechanical, atmosphere wouldn't matter.
Looking to purchase a code reader soon.
Joined
·
27,238 Posts
yo
Did you ask local Ford dealer service manager for the VECI info (Vacuum Diagram & Calibration Parts List for your 1990 Bronco 5.0, 4WD, EB series, AT?
Fill out your Bronco Info with year, engine/tranny/Xfer case/hub type info & major mods such as a Lift, etc. for better responses.
Click User CP
Edit Your Details,
...
Try a Self Test for Diagnostic Trouble Codes (DTC)s by my pal, BroncoJoe19
..
Some no code usual suspects by Ford;
Vacuum leak, see my leak diagnosis link in post #11
Air filter, is it relatively clean?
Air inlet atop radiator support to filter box and to throttle body; look for obstruction; damaged tubing
Fuel quality; Oxidized fuel often turns darker over time and may even smell sour. You can check stored gasoline by pouring some into a clear glass container and comparing it side-by-side with known fresh gasoline. If your old sample looks noticeably darker than the fresh gas, you have strong evidence the gas has gone bad.
Electrical connectors; inspect at coil, firewall, PCM, etc. especially those with broken locking tabs.
Did you ask local Ford dealer service manager for the VECI info (Vacuum Diagram & Calibration Parts List for your 1990 Bronco 5.0, 4WD, EB series, AT?
Fill out your Bronco Info with year, engine/tranny/Xfer case/hub type info & major mods such as a Lift, etc. for better responses.
Click User CP
Edit Your Details,
...
Try a Self Test for Diagnostic Trouble Codes (DTC)s by my pal, BroncoJoe19
..
Some no code usual suspects by Ford;
Vacuum leak, see my leak diagnosis link in post #11
Air filter, is it relatively clean?
Air inlet atop radiator support to filter box and to throttle body; look for obstruction; damaged tubing
Fuel quality; Oxidized fuel often turns darker over time and may even smell sour. You can check stored gasoline by pouring some into a clear glass container and comparing it side-by-side with known fresh gasoline. If your old sample looks noticeably darker than the fresh gas, you have strong evidence the gas has gone bad.
Electrical connectors; inspect at coil, firewall, PCM, etc. especially those with broken locking tabs.
Joined
·
4 Posts
meisk5,
It's funny you should mention the Air Inlet...When we originally got the bronco, there was masking tape on it. I recently investigated and pulled the tape...huge hole in tubing. Patched it back up
but have not replaced it. The PO has what is a K&N filter set up but there is a typical paper filter, not a KN oiled filter. I've got to continue to search for this part.
The tubing to the air filter looks to be OEM, not K&N. There is also a secondary filter that is really dirty that filters air coming from the engine/manifold/valve cover.
I'm sure when we got it the fuel was bad. However, we drive it almost daily and have run Luca oil injector cleaner through it and run 93 octane so far. Fresh fuel has helped... Once we get this issue resolved would like to drop to 87 if possible.
I've been reading through self-test link you posted. Wow! Great stuff Thanks!!
It's funny you should mention the Air Inlet...When we originally got the bronco, there was masking tape on it. I recently investigated and pulled the tape...huge hole in tubing. Patched it back up
but have not replaced it. The PO has what is a K&N filter set up but there is a typical paper filter, not a KN oiled filter. I've got to continue to search for this part.The tubing to the air filter looks to be OEM, not K&N. There is also a secondary filter that is really dirty that filters air coming from the engine/manifold/valve cover.
I'm sure when we got it the fuel was bad. However, we drive it almost daily and have run Luca oil injector cleaner through it and run 93 octane so far. Fresh fuel has helped... Once we get this issue resolved would like to drop to 87 if possible.
I've been reading through self-test link you posted. Wow! Great stuff Thanks!!
Joined
·
1 Posts
quick question, is the F4TF-UA & F4TF-UB completely interchangeable? Some remanufactures list as same. Some list as different part number. This is for a 1994 F150 XLT 5.8L 4x4 with 4EOD ca emissions, these ECU's are impossible to find. Blue Streak actually stole my core and sent me back a non rebuildable unit that doesn't work or communicate with a scanner. They have not returned my calls and now I have no computer for my clients truck. The damnedest thing. The worst part is I opened mine up before sending it in, I could have repaired it myself but I thought nah, an easy fix. send it out swap it out. That was two months ago. Where are all these damn ECU's going? is FORD buying them and melting them down? WTF??
Ian
Ian
Joined
·
27,238 Posts
Yo T,
Welcome!
Suggest you find a yard in your area that has Hollander Interchange & can search other yards and have it shipped.
Those numbers are not what I expect to see
For a YARD SEARCH on-line, I use;
https://www.hollanderparts.com
A yard that uses Hollander Interchange can search other yards and have it shipped.
Can select certain parts.
I Searched for: 1994 >Ford > F150 > Electrical > Engine Motor Control Module > 03765 Electronic Control Module, 8 351W (5.8L), (At, E4od Transmission), Exc. Lightning; California
Click on results for phone #, etc.
or
Car-Part.com--Used Auto Parts Market
Can select certain parts
I searched for; 1994 Ford Truck-F150 Computer Box Engine
Results:
1994
Engine Computer
Ford Truck F150 A W11393 $Call West Coast Auto Dismantling USA-CA(Woodland) Request_Quote 530-662-3171 Request_Insurance_Quote
Of course ask if CA emissions
Same for:
1994
Engine Computer
Ford Truck F250 not Super Duty O/S W14846 $Call West Coast Auto Dismantling USA-CA(Woodland) Request_Quote 530-662-3171 Request_Insurance_Quote 502
1994
Engine Computer
Ford Truck F250 not Super Duty O/S W17387 $Call West Coast Auto Dismantling USA-CA(Woodland) Request_Quote 530-662-3171 Request_Insurance_Quote
1994
Engine Computer
Ford Truck F150 F4TF-12A650-UB A B2299 $45 Brown Brothers Auto Recyclers USA-ID(Burley) Request_Quote 208-678-7580 / 855-346-0331 Request_Insurance_Quote
Live Chat ask if CA emissions
I stopped on page 4 of 23
Enter your zip for more local results
Welcome!
Suggest you find a yard in your area that has Hollander Interchange & can search other yards and have it shipped.
Those numbers are not what I expect to see
For a YARD SEARCH on-line, I use;
https://www.hollanderparts.com
A yard that uses Hollander Interchange can search other yards and have it shipped.
Can select certain parts.
I Searched for: 1994 >Ford > F150 > Electrical > Engine Motor Control Module > 03765 Electronic Control Module, 8 351W (5.8L), (At, E4od Transmission), Exc. Lightning; California
Click on results for phone #, etc.
or
Car-Part.com--Used Auto Parts Market
Can select certain parts
I searched for; 1994 Ford Truck-F150 Computer Box Engine
Results:
1994
Engine Computer
Ford Truck F150 A W11393 $Call West Coast Auto Dismantling USA-CA(Woodland) Request_Quote 530-662-3171 Request_Insurance_Quote
Of course ask if CA emissions
Same for:
1994
Engine Computer
Ford Truck F250 not Super Duty O/S W14846 $Call West Coast Auto Dismantling USA-CA(Woodland) Request_Quote 530-662-3171 Request_Insurance_Quote 502
1994
Engine Computer
Ford Truck F250 not Super Duty O/S W17387 $Call West Coast Auto Dismantling USA-CA(Woodland) Request_Quote 530-662-3171 Request_Insurance_Quote
1994
Engine Computer
Ford Truck F150 F4TF-12A650-UB A B2299 $45 Brown Brothers Auto Recyclers USA-ID(Burley) Request_Quote 208-678-7580 / 855-346-0331 Request_Insurance_Quote
Live Chat ask if CA emissions
I stopped on page 4 of 23
Enter your zip for more local results
1 - 20 of 20 Posts
Join the discussion
Join now to ask and comment!
