Got my removable tie-downs...

12819 Views 39 Replies 19 Participants Last post by  Iolaus
Now I gotta decide exactly where and how I'm going to install them.

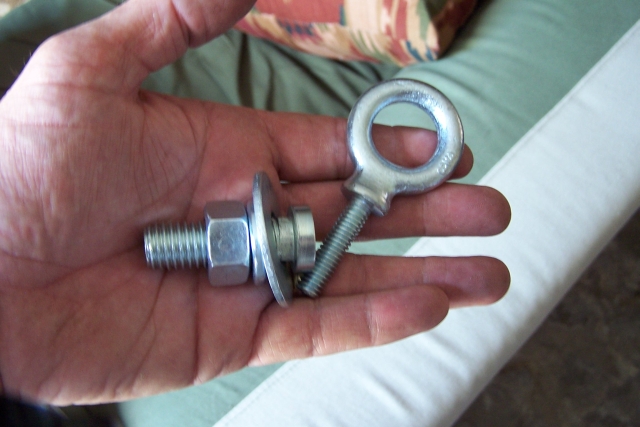

Here's a pic of what they are; part stays in the bed, and I stash the eye-bolt 'till I need to pull the 35" in for wheeling.

The two towards the back will just go through the bed, but for the front two, I was thinking about drilling another hole in the back seat bracket; would that weaken the intergity of the bracket too much? I wouldn't think so; it's already got holes in it - probably make it stronger.

Another idea I had was to just pull one of the bolts and replace it with the tie-down. I liked this idea, but it looks like the threads aren't compatable. Are these nuts welded in or will they just drop off if I pull the bolt? The way they're perfectly aligned makes me think they're welded, but I could be wrong.

See less See more
1 - 20 of 40 Posts
hey where'd you get those...might have to be a copy cat on this one...

if those bottom bolts are welded in, chisel them off. you'll have to get a friend to lay under your truck and tight the bolts from underneath while you hold the tops
smileybry said:
hey where'd you get those...might have to be a copy cat on this one...
I ordered them from Sportsman's Guide. They're not cheap - $14.97 for 2 - but the convenience factor sold me. These are rated at 1400 pounds; they have heavier ones at 2600, but I thought that was way overkill. All they're gonna do is hold the weight of a full-size tire, split four ways; even a roll-over shouldn't stress them that much.
awesome. let me know how you mount them. i'm ordering them right now.
Ok, for what it's worth, here's the official write-up on what I did.

First thing I did was pull up the carpet and pad so that I had a clear place to work, and guess what I found. I'm assuming that this is the build sheet people have been talking about. I stuck it in plastic and will probably just stick it back under the pad next time I think about it, since I'll lose it otherwise.

The rear molding is still in place because I stripped the head of one of the screws, and I didn't feel like getting sidetracked; the carpet was loose, so I did the job and took care of the screw later.

I chose where the holes would be. I decided to center the tire on the rearward bolt of the backseat catch, because that left me room for a 38" or 40" tire without overhang in front, should I decide to move up in the future. I decided not to put the tie-downs through the seat bracket because I didn't feel like chiseling off the bolt, and in trying to plan things "perfectly," I kept running into things undernerneath, so I just chose a spot that seemed like it would be somewhat supported (the end of the groove) and measured back an equal amount past the bolt I had chosen for my center, which put me at 16" between the two.

Next, I drilled the holes.

Going with the principle that any sealant is better than no sealant, I used some calking that I had left over from a bathroom remodel. Since I was on my own, I had to figure out how to hold the bolts while I was tightening up the nuts underneath. A hint here: leave the bar through both loops and tighten both at the same time. On the first side, I did one and then the other, which swung the bar over on the second one, so I took the bar out of the first loop and just braced it against the wall; as I tightened the second one, I kinda tweaked the floor a little (and the angle of the bolt. On the second side, I left everything in place and tightened them together, and it came out perfect.

Put some calk right around the hole...

...and a thick bead on the washer - hey, calk's cheap.

Here it is tightened down.

And here you can see how it's going to work.

Other side, all done.

And a close up (after I semi-cleaned it up). You can see that the piece doesn't come up any higher than the top of the bed - no bump in the carpet.

Now on to making the tie-downs acceptably accessible.

I carefully measured out where the tie-downs were, and trimed out the strips of cardboard to allow the mat to still settle into the grooves of the bed. The strips are doubled up, so I put some staples through to hold them in place - regular staples; I think a staple gun would be too long (ouch).

This is where the height of the tie-downs comes into play; they match the height of the cardboard strips, so the carpet is still supported. :thumbup Yeah, it's petty, but I thought it was cool.

The hole in the tie-down was too small for the pen I had, so when I put the mat back in place to mark it, I ran a small drill up from the bottom, just to mark the pad, then pulled it back out and used a bigger bit to cut the access hole.

Here, you can see where I cut and stapled the cardboard.

Three of the holes were perfect; one was a little off, so I did some cutting.

While I was cutting that one, it occured to me that the plugs (which are just barely taller than the fitting) were going to need some room, so I ended up trimming all of them a bit larger. After I was finished, I decided that I probably won't use the plugs anyway; instead, I'll find a bolt that will take up all the threads, since the plugs are only 3/4" and I'll want the threads clean when I put the eye-bolts in.

Now I had to put the holes in the carpet. I set that piece of wood in the other pic on top of the holes and weighted it down, then drilled up from underneath. Once I had a small hole drilled through the carpet, I had to figure out how to make it bigger, and not have it fraying. I figured heat was the best way to do both.

Yes, that's a junk bit.

and there ya go! :thumbup

Now I just gotta get a couple of straps, and it'll be secure.


See less See more
Great idea and good write up. :thumbup
very cool idea and very nice workmanship! i think this should go the writeup section. definitely worthy.
Have you considered getting some acorn nuts for the bottom, to keep the dirt from coming up from below?
sewiv said:
Have you considered getting some acorn nuts for the bottom, to keep the dirt from coming up from below?
I hadn't, but that's a good idea. I was just going to fill the whole cavity with a long bolt to block dirt (probably still will), but I like your idea to seal the bottom as well.

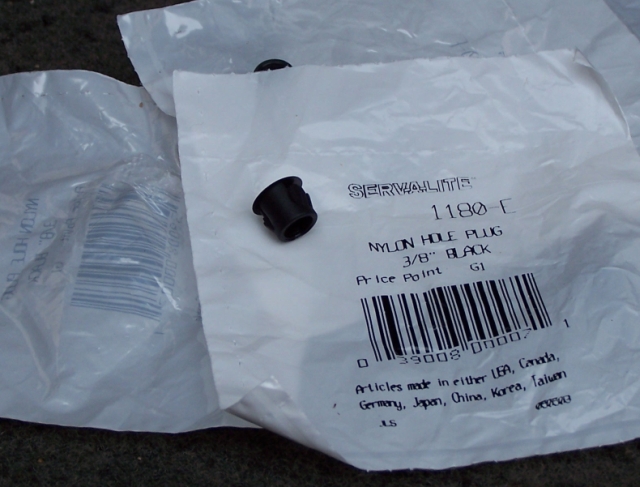

Ok, I couldn't find any 5/8 acorn nuts in Home depot or OSH, but I did find these plugs that'll work 'til I find some. I just dabbed a little calk around it and put it in. I figure I can just leave them there and screw the nuts on over them; in the mean time, it's sealed.

I noticed that the tension on the straps is already starting to pull on the bolts, so I'm devising a brace to jam up against one of the corners next to it underneath - do the triangle brace thing.
